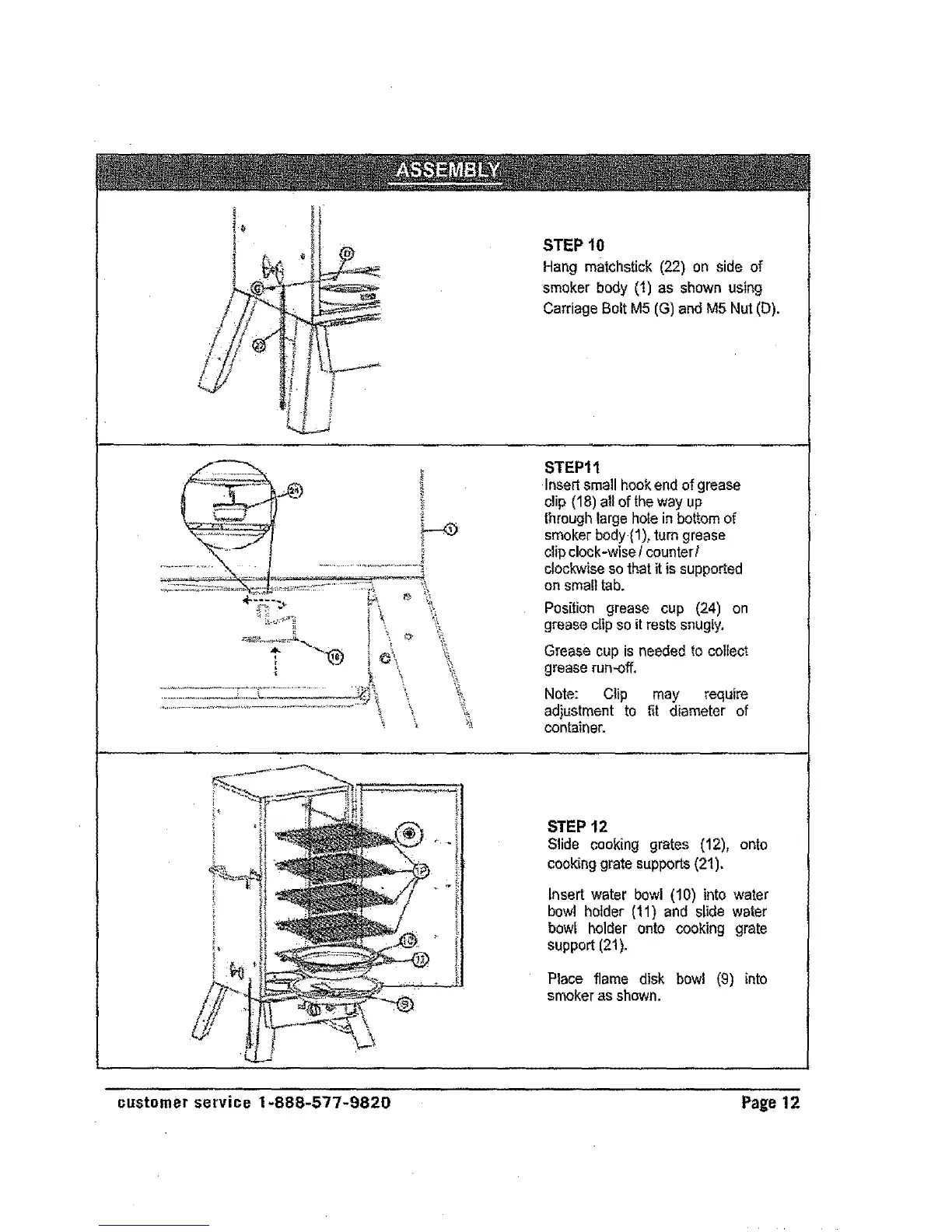

STEP 10
Hang matchstick (22) on side of
smoker body (1) as shown using
Carriage Bolt M5 (G)and M5 Nut (D).
STEP11
Insert small hookend of grease
clip (18) all of the way up
throughlarge hote in bottom of
smoker body (1), turn grease
clip clock-wise/counter/
clockwise so that it issupported
on small tab,
Position grease cup (24) on
grease clip so itrests snugly,
Grease cup is needed to collect
grease run-off,
Note: Clip may require
adjustment to fit diameter of
container.
STEP 12
Slide cooking grates (12), onto
cookinggrate supports (21),
Lnsert water bowl (10) into water
bowl holder (11) and slide water
bowf holder onto cooking grate
support (2I).
Place flame disk bowl (9) into
smoker as shown.
customer service 1+888-577-9820 Page 12
