bca Float series - Installing Airbag System; Threading the Airbag Rope

10
Installing

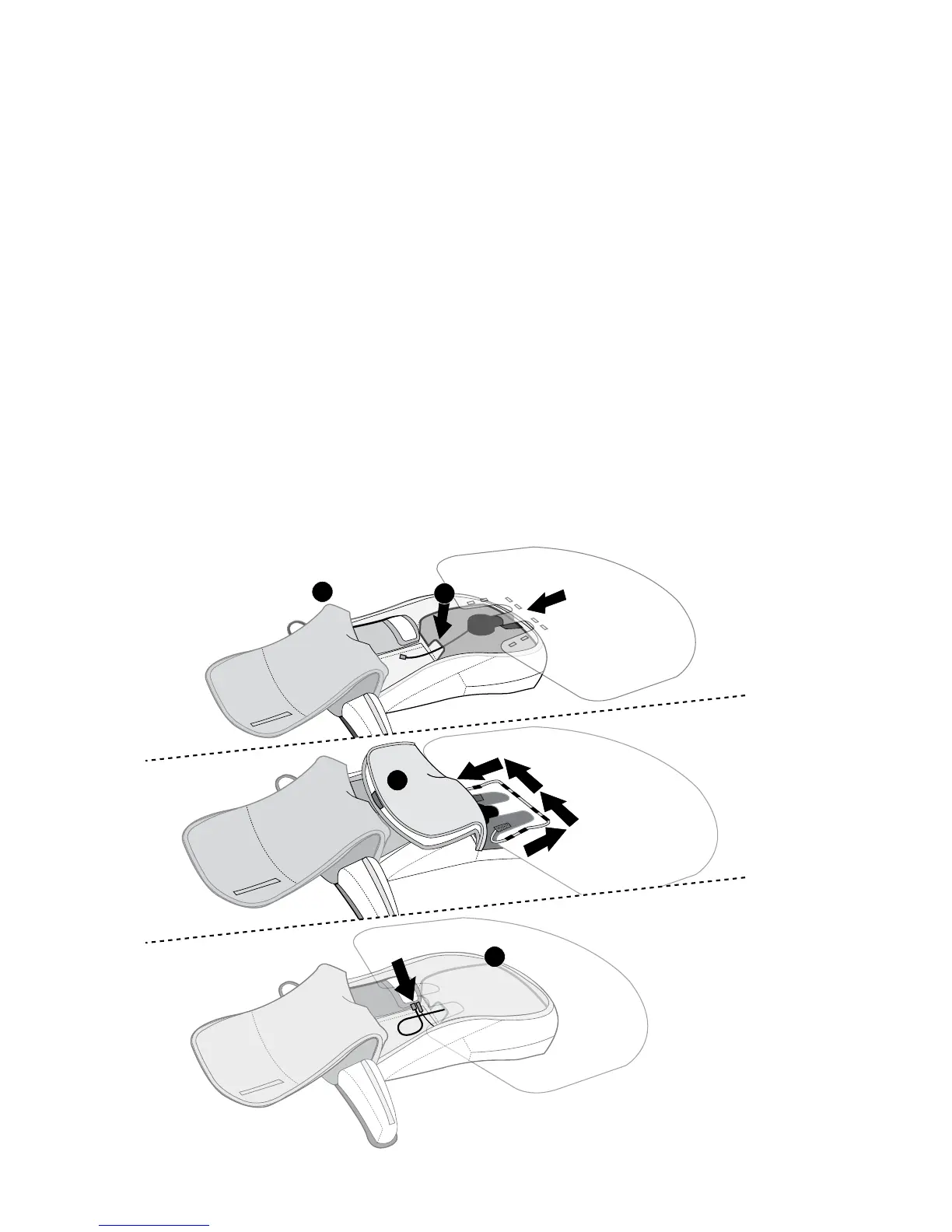

1.Withtheairbagunfolded,laytheejectorintheairbagcompartmentwiththeorangereleasevalve
cover facing up (a). The air hose should be fed through the designated opening (b)
into the main
storage compartment where the cylinder is kept.
2.Startingonthesidewiththefixedendoftheorangerope,threadtheropedownwardthroughthe
first slit in the airbag. Thread the rope through the first webbing loop then upward back through the
firstslit.Repeatthisstepwitheachslit(c)untilyoureachtheejectortube.
3. Once the threading is complete up to the ejector tube, pull the rope tight. This action will pull the
webbing loops up through the attachment slits in the airbag.
4. Bring rope over ejector tube.
5.Repeatthreadingtechniquethroughremainingslitsandwebbingloops.
6. Secure the loose end of the orange rope by running it up through the black Velcro loop, then loop
it back down and fold the Velcro flap over it.
7.Repackairbagandclosecompartment(seeaboveinstructionsforrepacking).
8.Reconnecttriggercableandairhosetocylinder(d).
