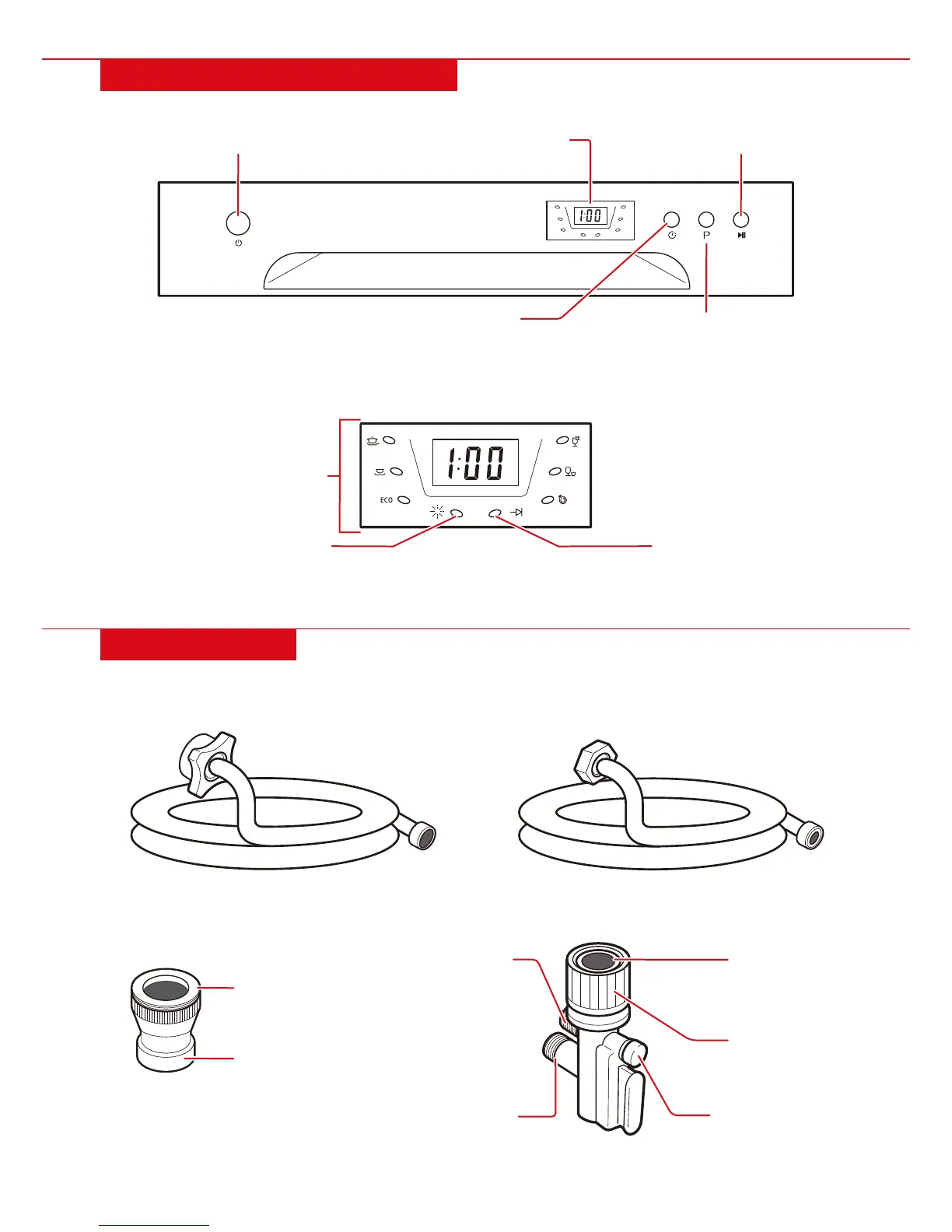

CONTROL PANEL DIAGRAM
ACCESSORIES
POWER CONTROL PANEL START/PAUSE
DELAY:
Delay start of washing
program from 1 to 24 hours
WASHING PROGRAM:
Cycle through dierent
washing programs
RINSE AID INDICATOR:
Turns on to indicate
rinse aid level is low
PROGRAM ENDING
INDICATOR
WATER INLET HOSE
WASHING PROGRAMS
(See page 11)
DRAIN HOSE
FAUCET
ADAPTOR
FAUCET
WASHER
| 5
QUICK CONNECT ADAPTOR
INLET HOSE
CONNECTION
DRAIN HOSE
CONNECTION
FAUCET
ADAPTOR
LOCKING
COLLAR
PRESSURE
RELIEF VALVE
