BCP SKY6998 - Page 8

PRODUCT ASSEMBLY
3

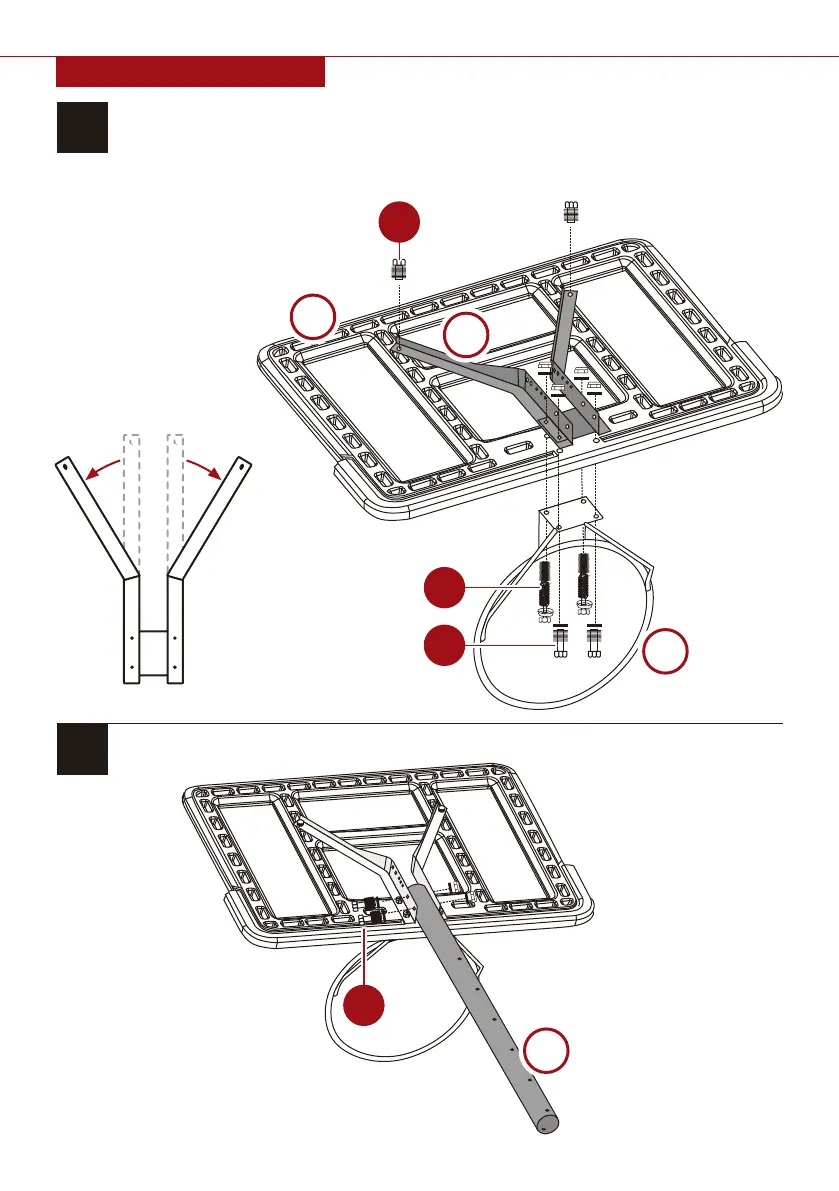

Locate the part K board bracket, then bend
the two tines to form a ‘Y’ shape.
Attach the part K board bracket to the back
of the part N backboard with two part D
bolts.
Attach the part L rim to the part N backboard
with two part A bolt and nut sets and two
part B bolt and nut sets.
Use the part A bolts in the top holes of the rim
and the part B bolts for the bottom holes.
N
K
L
D
x2
A
x2
B
x2
4
Attach the part W top pole to the part K board bracket with two part F bolt and nut sets.
W
F
x2
8 |
