BCS 615 - Tabella 1: Ruote; Tabla 1: Ruedas; Tableau 1: Roues; Tafel 1: Räder

29

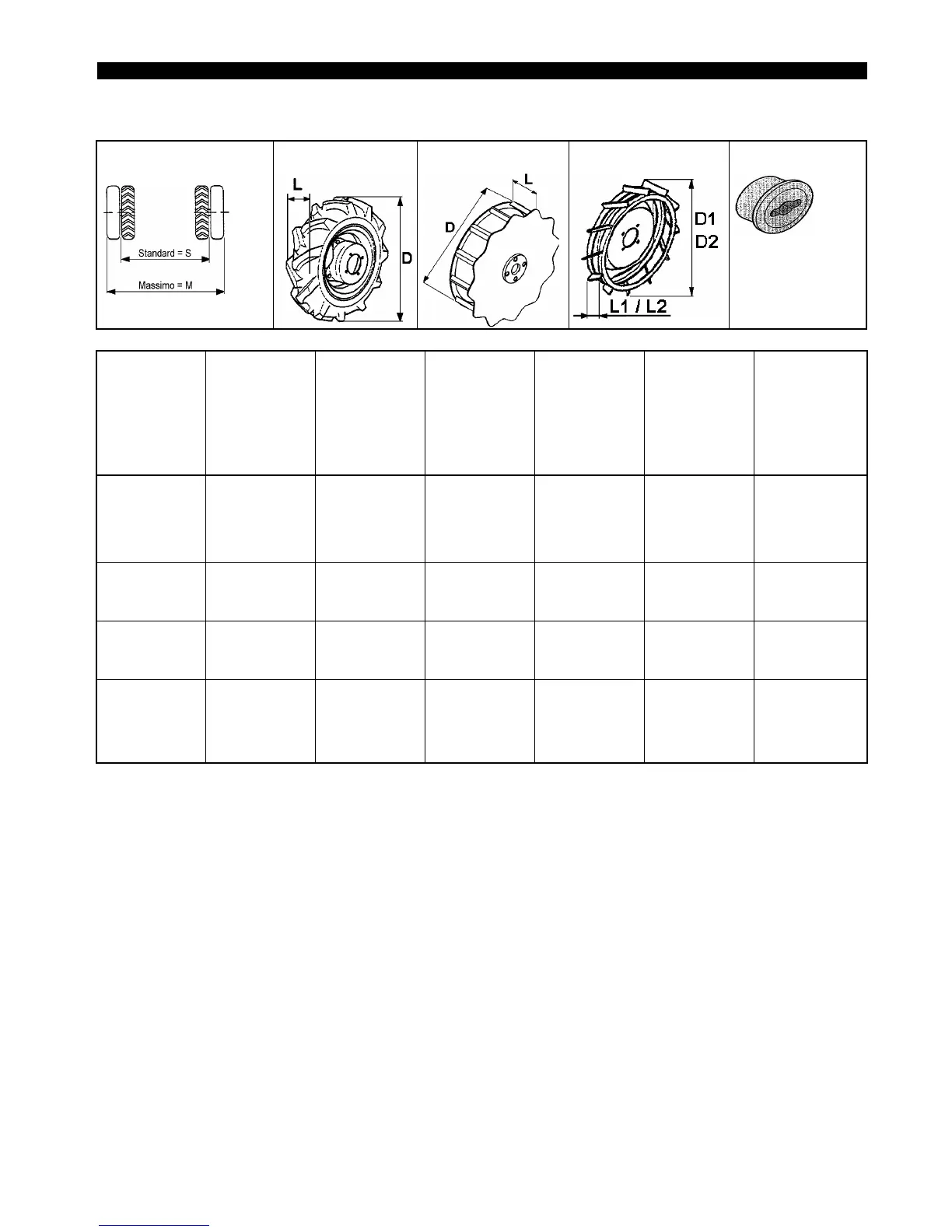

TABELLA 1 - TABLE 1 - TABLEAU 1 - TABLA 1 - TAFEL 1
P
B F
H
MACCHINA
MACHINE
MACHINE
MAQUINA
MASCHINE
P = 3.50 - 8
D = 395 mm (15,5”)
L = 97 mm (3,8”)
bar = 1,2 / 1,5
P = 4.00 - 8
D = 427 mm (17”)
L = 108 mm (4,3”)
H = 10 kg (lbs 22)
bar = 1,2 / 1,5
P = 4.0 - 10
D = 463 mm (18”)
L = 114 mm (4,5”)
H = 15 kg (lbs 33)
bar = 1,2 / 1,5
P = 5.0 - 10
D = 512 mm (20”)
L = 140 mm (5,5”)
H = 15 kg (lbs 33)
bar = 1,2 / 1,5
P = 6.5/80 - 12
D = 580 mm (23”)
L = 160 mm (6,3”)
H = 34 kg (lbs 75)
bar = 1,2 / 1,5
P = 16x6.50 – 8
D = 405 mm
L = 165 mm
bar = 1,2 / 1,5
615 MAX
615L MAX
615S MAX
615SL MAX
S = 425 mm S = 435 mm
S = 566 mm
620 MAX
S = 435 mm S = 467 mm
M = 539 mm
630 MAX
(BM8)
S = 477 mm
M = 549 mm
S = 503 mm
M = 575 mm
650 MAX
S = 477 mm
L = 549 mm
S = 503 mm
L = 575 mm
L = 668
