Blade Holder Adjustment
Loosentheupperlocknut(Aingure17).
Adjust the tension screw (B in gure 18) until the blade
slides freely between the tooth and blade holder without
excessiveslack(gure18).
When the adjustment produces the best motion without
binding,tightentheupperlocknut(Aingure19).
BLADE ADJUSTMENT
Toadjusttheblades,loosenthebladeholder(Cingure
20) and move the blade to the wear blocks (E) operating on
the blade holder and tighten the bolts allowing a little slack.

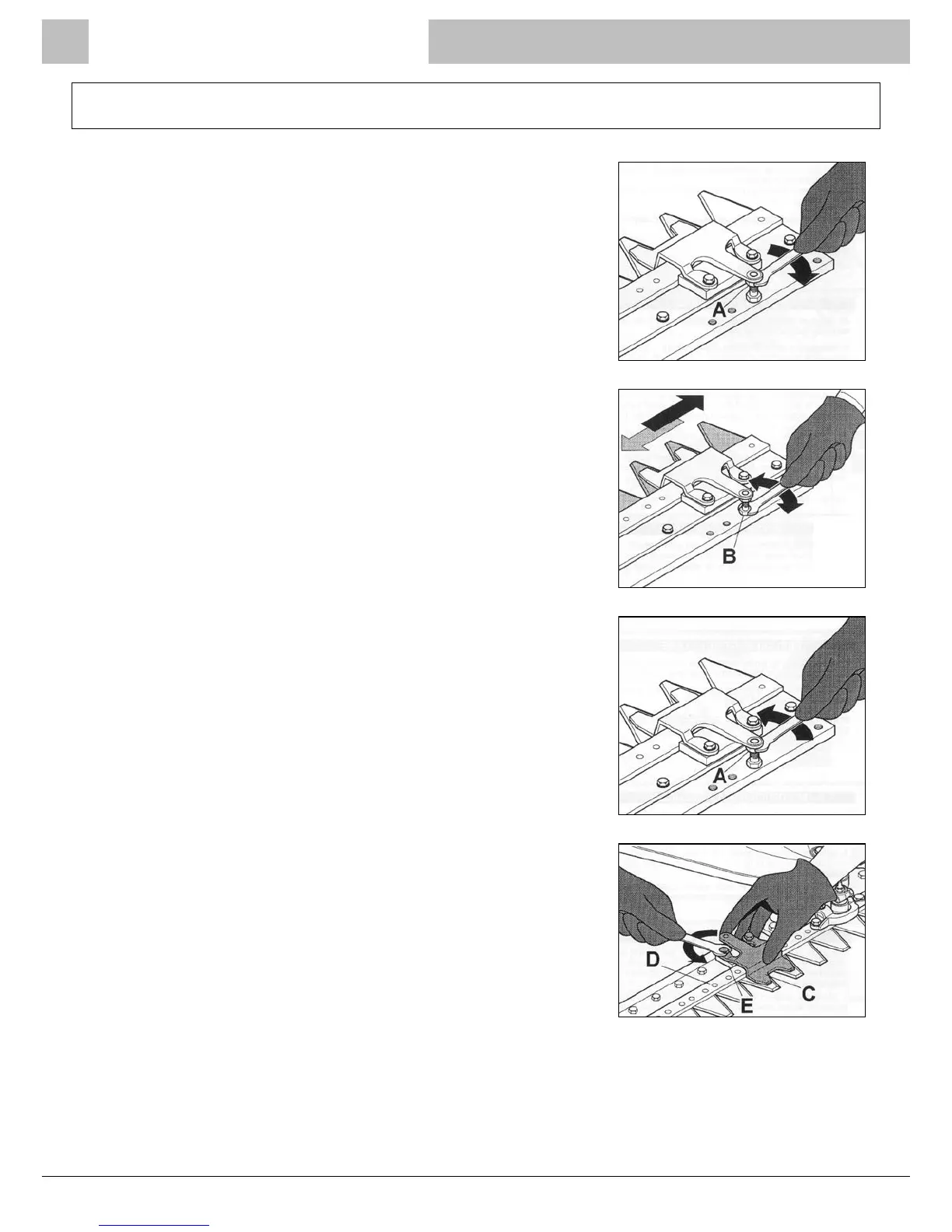

Figure 17
Figure 18
Figure 19
Figure 20
