Mounting
The shifter can be mounted in numerous ways to adapt to the
driver’s style.
There are typically 4 mounting options on the right or left of
your chassis:
1. Top of profile stick nearer driver
2. Top of profile body nearer driver
3. Side of profile stick nearer driver
4. Side of profile body nearer driver

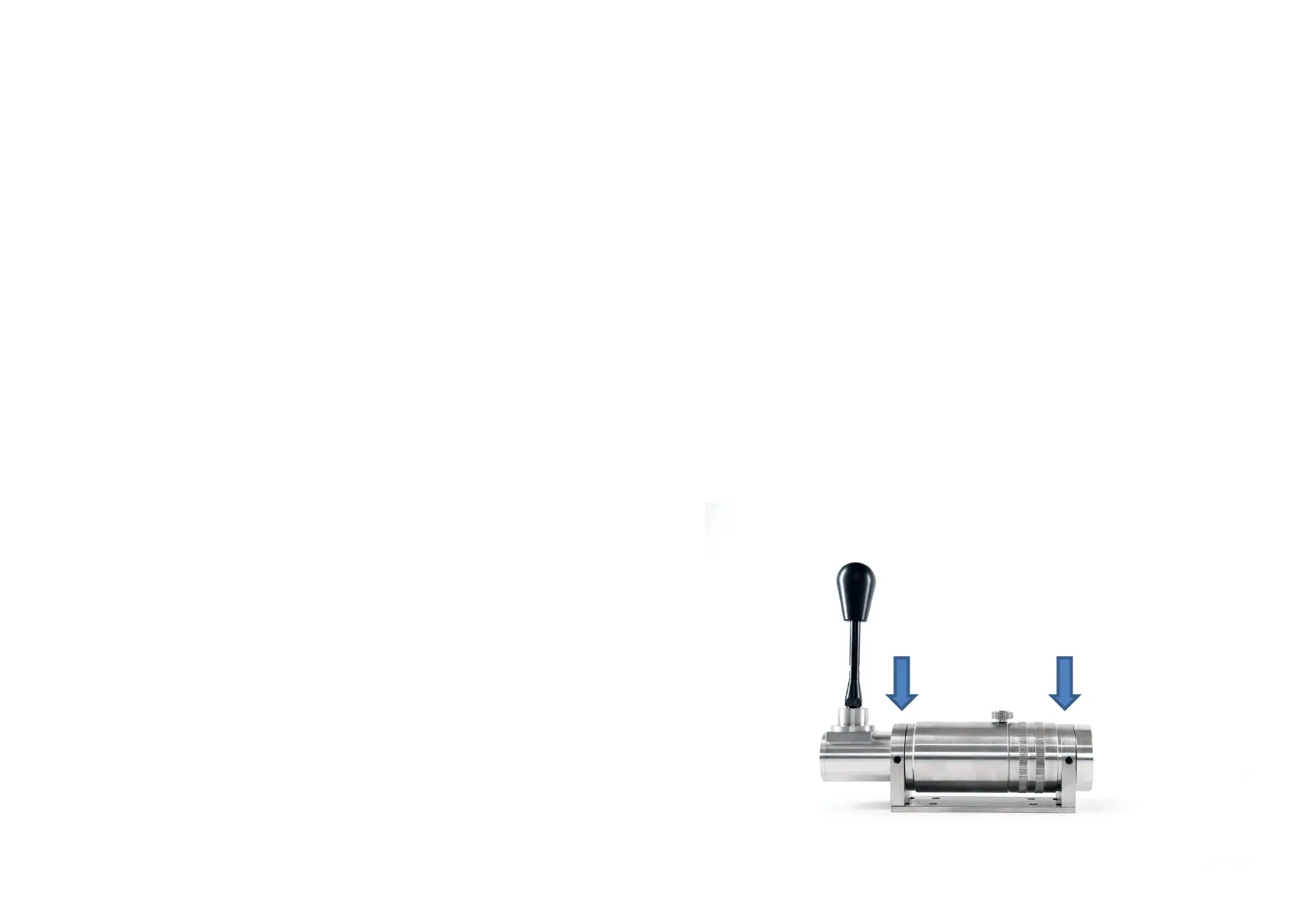

The shifter chassis can be rotated independently of the clamps
allowing the shifter to be side mounted or top mounted.
1.Release the 3 grub screws with an 3mm Alan Key on each of the
two clamps
2.Rotate the shifter body to your desired alignment
3.Re-tighten the grub screws.
Once the shifter is in position, you can amend the configuration in
the larger end cap to suit your USB wiring configuration.
The shifter chassis can be rotated independently of the clamps
and therefore you only need to release the grub screws within the
two clamps to move the shifter to your desired positioning.
