Connect to the
sprayer gun
On
position
Off
position
Connect to tank
ATTENTION: There are two same spring clips on both ends of the hose, each of
them will be connected to the sprayer gun and outlet hole of the tank. Press the clip
push in for connecting and pull out for detaching. Before use, you must open the
ON/OFF fluid valve first. Make sure to provide the sprayer fluid from the tank. When
you stop spraying turn the switch to the OFF position to avoid fluid back flow.
On/Off
Spring clip
Spring clip
Bend resistance spring
QUICK ADAPTOR SPRING HOSE
HOW TO USE THE SPRAYER GUN
This machine was designed with dual nozzles and can be switched for 3 different
modes: Mist, Jet and Fan shaped for different uses.
The first nozzle can spray 2 modes: mist and jet, these two modes are alternatively
changed by rotating the nozzle. Mist mode is mainly for large area spray job in close
distance. Jet mode is mainly for shooting to long distance. The second nozzle is for
Fan shaped spraying mode, this mode is especially suitable for large area spraying in
long distance, it can spray by max 6 meters distance. The two nozzles are convertible
randomly by rotate the changing switch in clockwise direction.

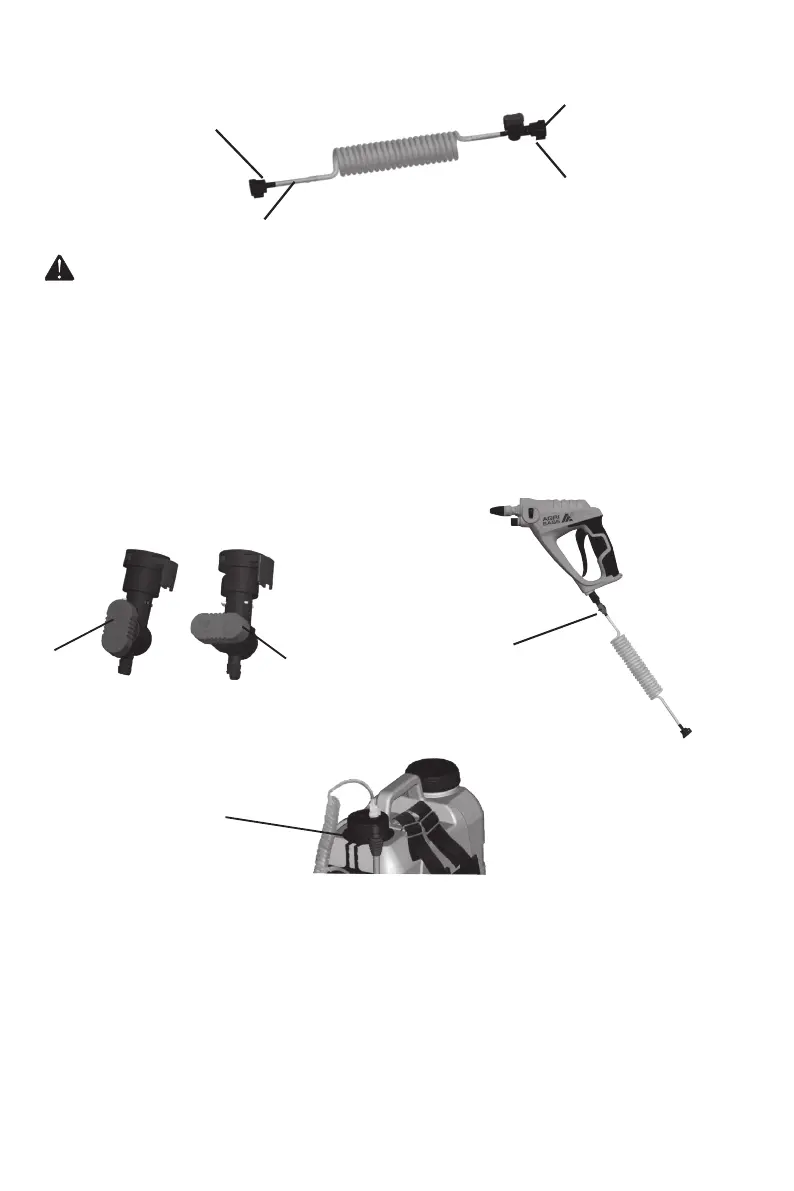

SPRING HOSE AND ON/OFF FLUID SWITCH DETAIL
