BE AM Series - Initial Tractor Attachment; Preparation and Alignment

The machine will be delivered in a partially dismantled condition, secured with transport strap and banding.
• Chose a firm level site.
• Remove the transport strap,
banding straps and loose items.

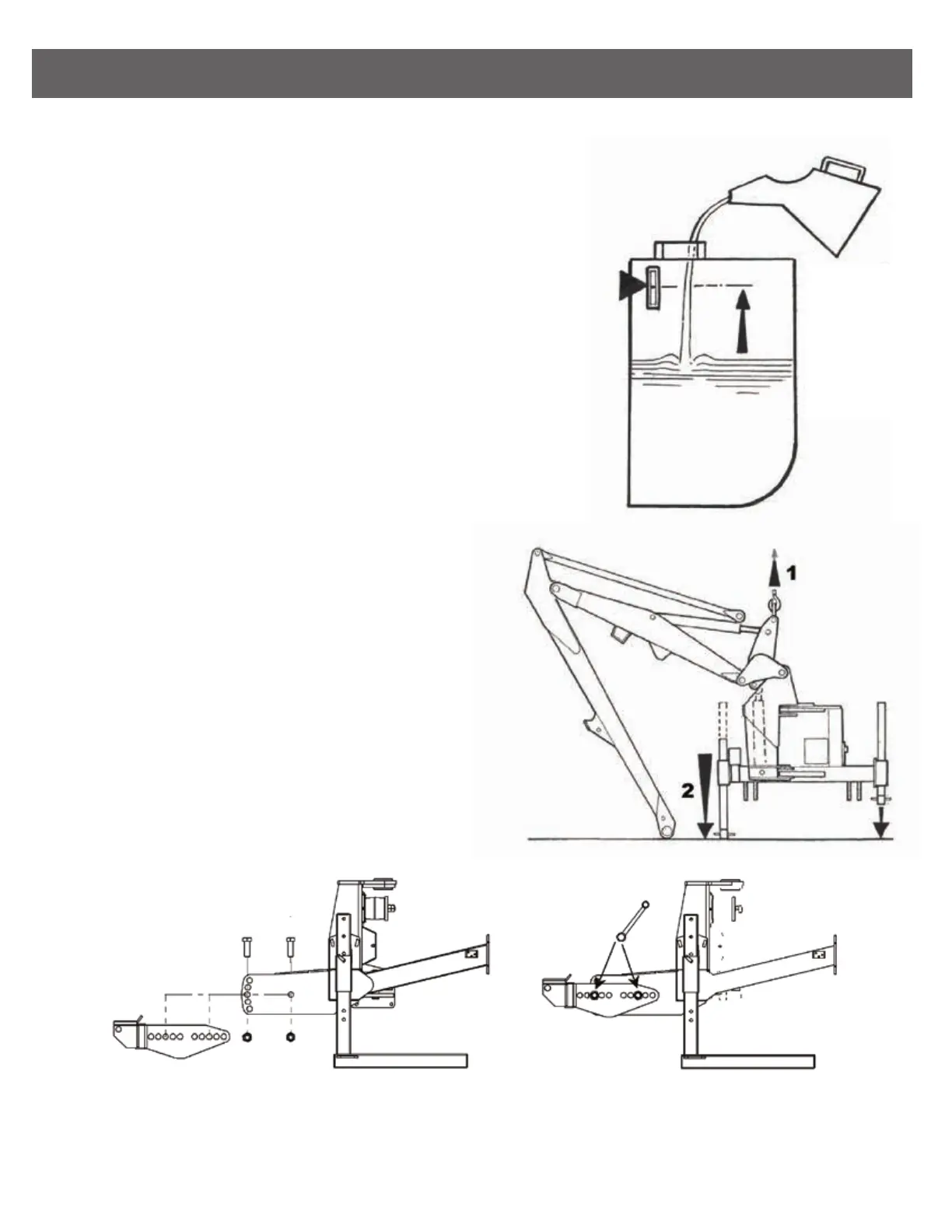

• Check hydraulic fluid is at recommended level.
• Raise the machine using overhead lifting
equipment with a minimum capacity of 1500kg SWL.
LEAVE IN POSITION AT THIS STAGE.
• Lower the legs and pin in position selecting the holes
that position the machines gearbox stub shaft
approx. 75mm below the tractors PTO shaft
Note: Leg pin position used.
• Unbolt stabilizer from machine and remove stabilizer
nose quadrant pin.
Locate axle mounting arms onto the mainframe and secure in position using the correct nuts and bolts supplied,
tighten nuts when correct hole location has been selected
(See following page for details on mounting hole selection).
