BE AM Series - Axle Bracket & Catch Assembly; Axle Plate & Catch Mounting

AXLE BRACKET/CATCH ASSEMBLY - FITTING BY DEALER

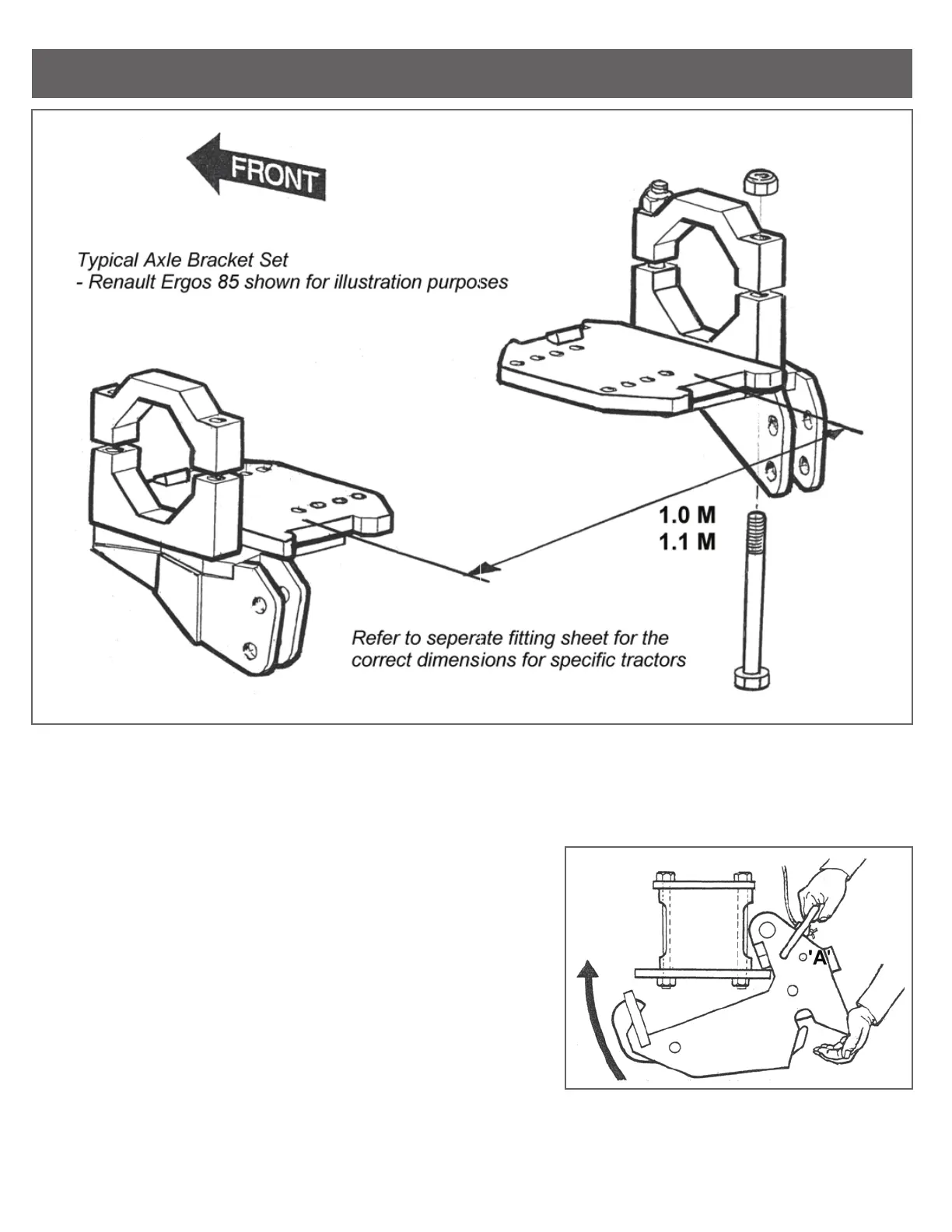

Bolt axle plates to the tractor axle at either 1.0 M or 1.1 M apart - this may necessitate the removal of the
tractor's check chains and/or assister ram brackets, if this is the case, the axle plate will include replacement
brackets for these functions. The axle brackets supplied will be accompanied by a fitting sheet with instruction
for their attachment to your tractor, follow the instructions exactly as they are specific to your particular make
and model of tractor. Replace assister ram(s) if fitted.
Hook the catch assemblies onto the rear
of the axle plates, push firmly against the
plate and vigorously pivot the catch in a
forward and up direction until the spring
loaded hook ‘snaps’ into position.
Pass the release cords up into the cab.
Note:
On some tractors fitted with auxiliary fuel tanks,
there is insucient space for the spring catches
to be fitted, in these instances special axle brackets
and catches with a ‘pin on’ facility are available on request.
Ensure catch-locking pin ‘A’ is removed.
