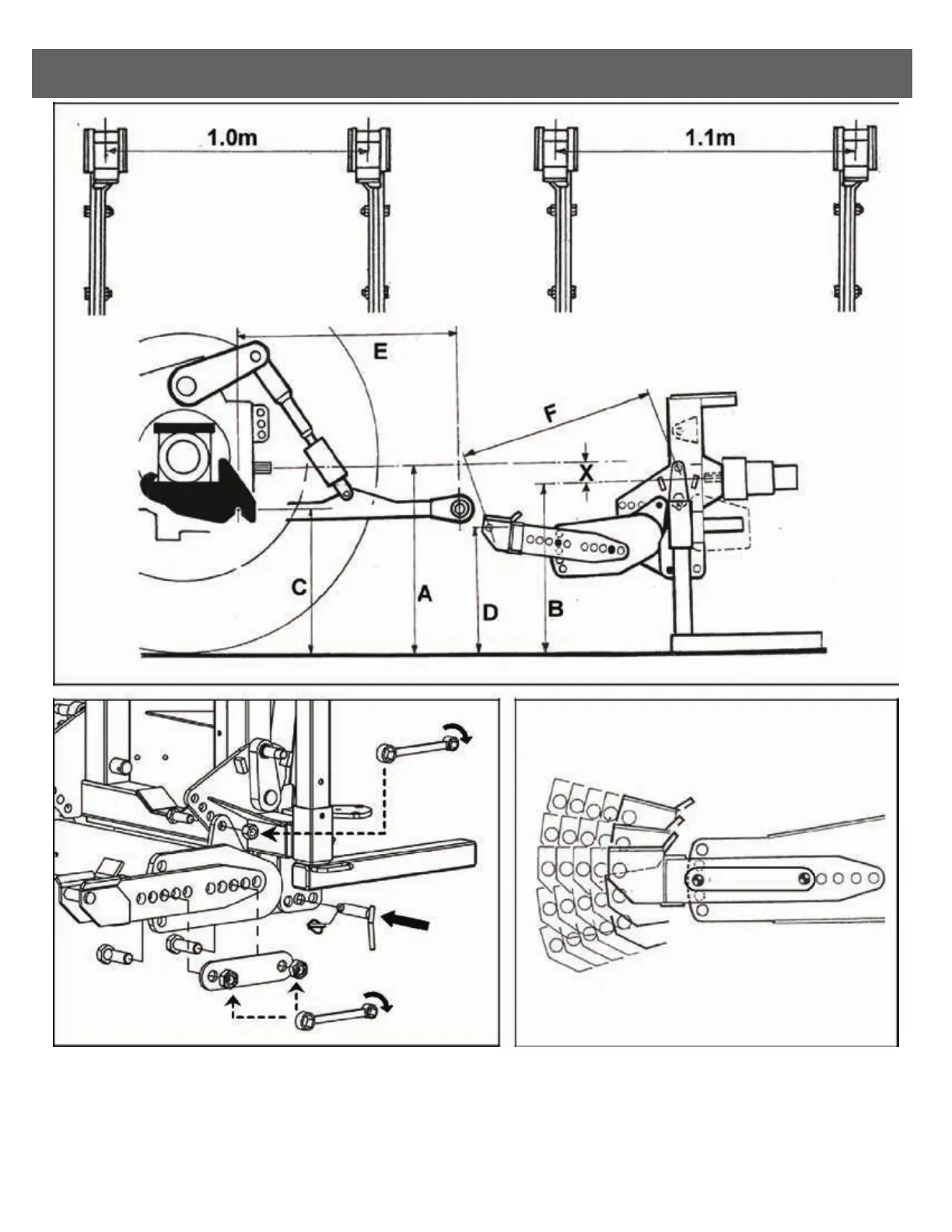

STANDARD TYPE BRACKETS
With the frame in the vertical position, measure dimensions ‘A’ and ‘B’, subtract ‘B’ from ‘A’ to obtain
measurement ‘X’. Measure dimension ‘C’.
Select mounting holes which position the mounting bars in the end of the latch arms so that dimension ‘D’
equals dimension ‘C’ minus measurement ‘X’ and also when the draft link is horizontal and the rocking
draft pin is in the upright position dimensions ‘E’ and ‘F’ are equal.
7
