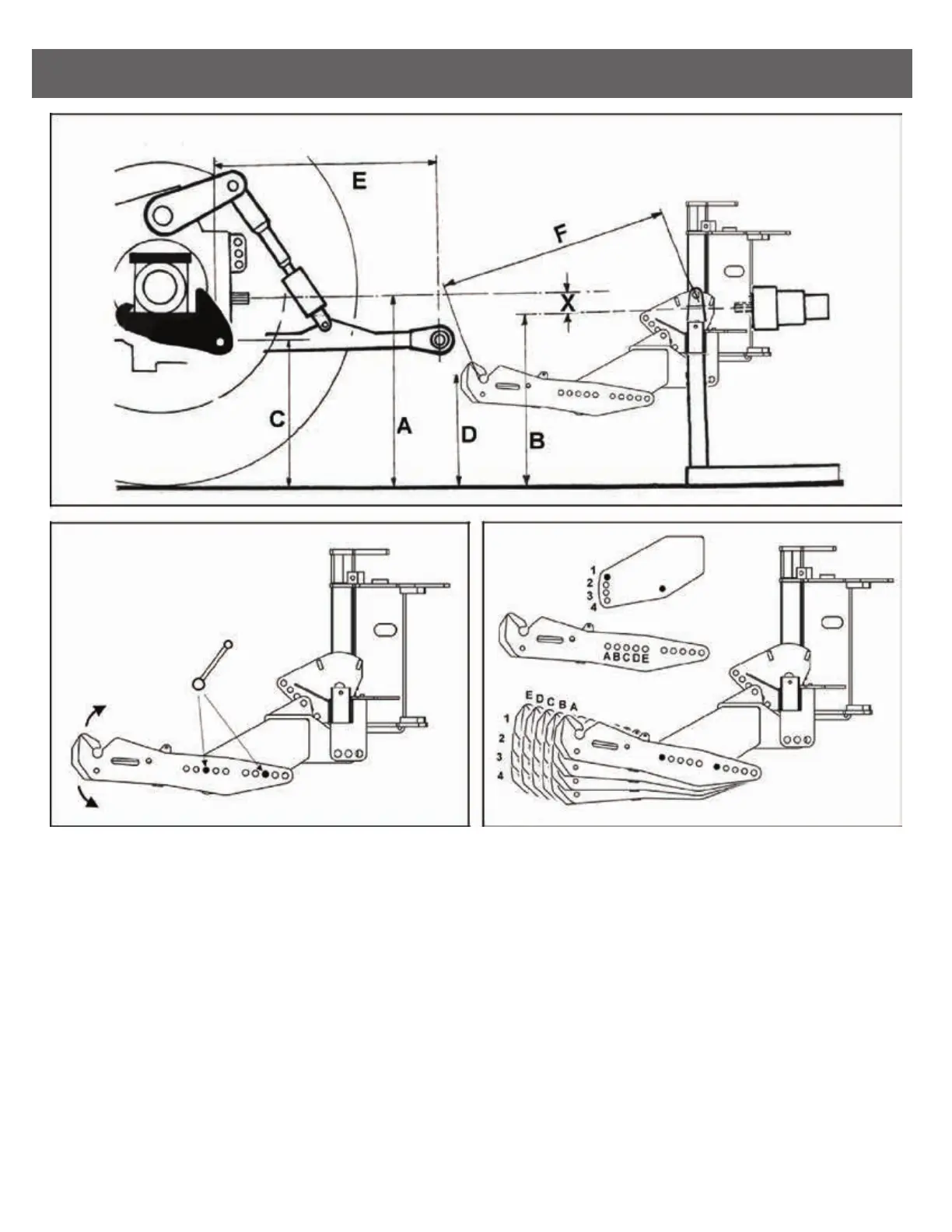

ALTERNATIVE TYPE BRACKETS
With the frame in the vertical position, measure dimensions ‘A’ and ‘B’, subtract ‘B’ from ‘A’ to obtain
measurement ‘X’. Measure dimension ‘C’. Select mounting holes which position the mounting bars in the end
of the latch arms so that dimensions ‘D’ equals dimension ‘C’ minus measurement ‘X’ and also when the draft
link is horizontal and the rocking draft pin is in the upright position dimensions ‘E’ and ‘F’ are equal.
8
BE-AMxx
