32
33
Black
Brown
Green
Blue
Orange
Red
White
Yellow
Black
/White
Green
/
Yellow
Red
/White
KBPC2510
10A
DC receptacle
flameout switch
CONTROL PANEL BLOKC
circuit breaker 10A
ESC switch
oil warning ind icator light
overload indicator light
AC pilot light
oil sensor
ignition
spark plug
stepper motor speed
rectifier
lgnition coil
DC-spoel
GENERATOR BLOCK
inverter
triggered coil
B
Br
G
L
O
R
W
Y
B
/W
G
/Y
R
/W
AC receptacle
circuit breaker 20A
circuit breaker 30A
'
Tuning coil
Inductor
DC-Coil

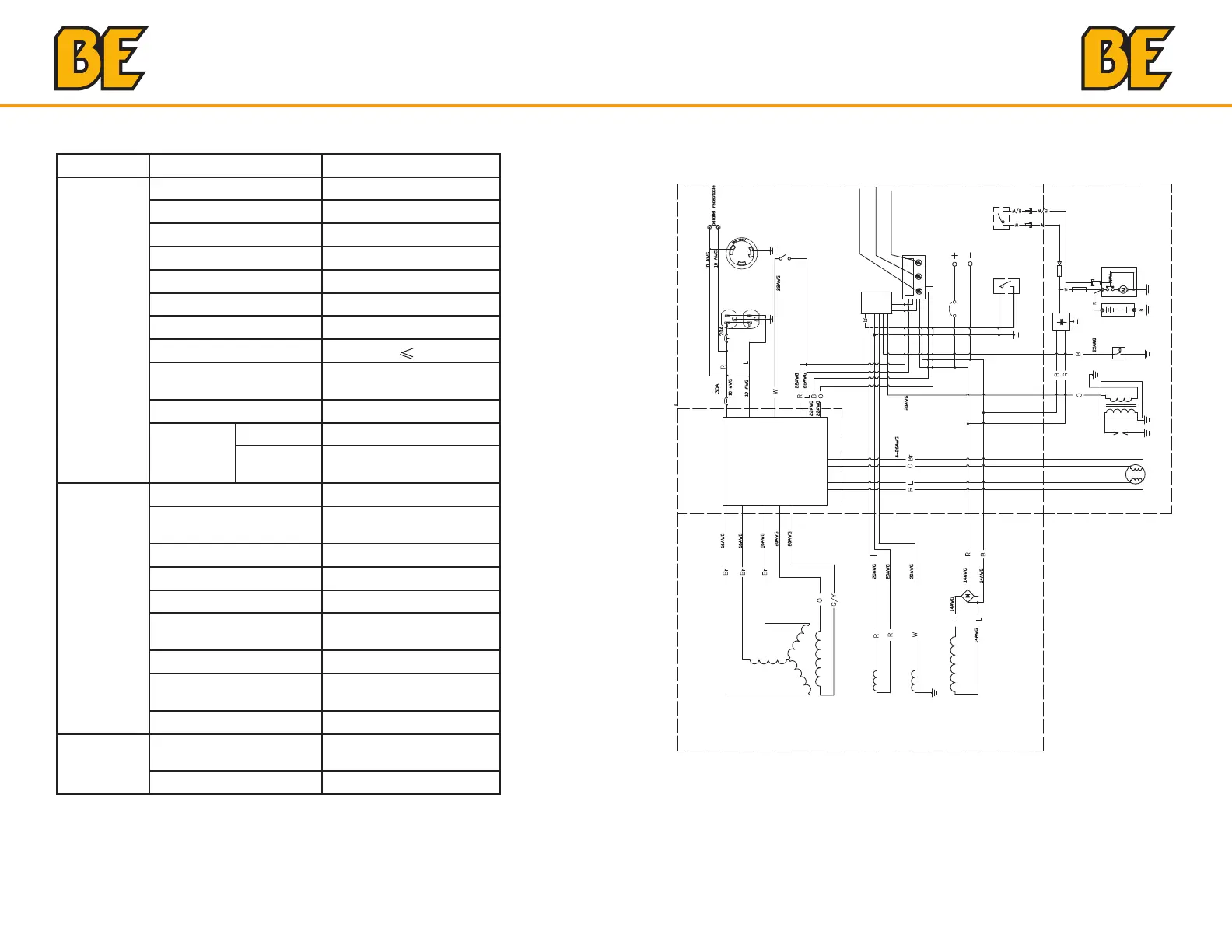

Parameters
Item I3500L Generator
Generator
Type Inverter
Rated frequency (Hz)* 60
Rated voltage (v)* 120
Rated output power (kW) 3.0
Max output power (kW) 3.3
Power Factor 1
AC output quality ISO8528 G2
THD/% <5
Noise Level dB/LpA/
LwA/K 4m (1/4 load)
60
DC Output/ V-A 12-8
Overload
Protect
DC
Non-fuse Protector
AC
Control by inverter overload
protect program
Engine
Engine Powerease
Engine type
Single cylinder, 4-stroke,
forced air cooling, OHV
Displacement (cc) 212
Fuel type Unleaded Gasoline
Fuel tank capacity (L) 10
Continue Running Time (at
rated power)(h)
5.5
Oil Tank Capacity (L) 0.6
Spark Model No.
BPR6ES/BP6ES(NGK)
F7RTC/F7TC
Starting mode Recoil Start/Electric Start
Generator
set
Length x Width x Height
(mm)
579 × 440 × 510
Net weight (kg) 45
Wiring Diagram
120V
PARAMETERS WIRING DIAGRAM
