Vestibule applications may be installed and programmed so that either door 1 and door 2 open
simultaneously or door 1 opens first and door 2 opens after a delay (set by HOLD TIME potentiometers).
For 2-way traffic, two (2) Br2-900 modules are required.

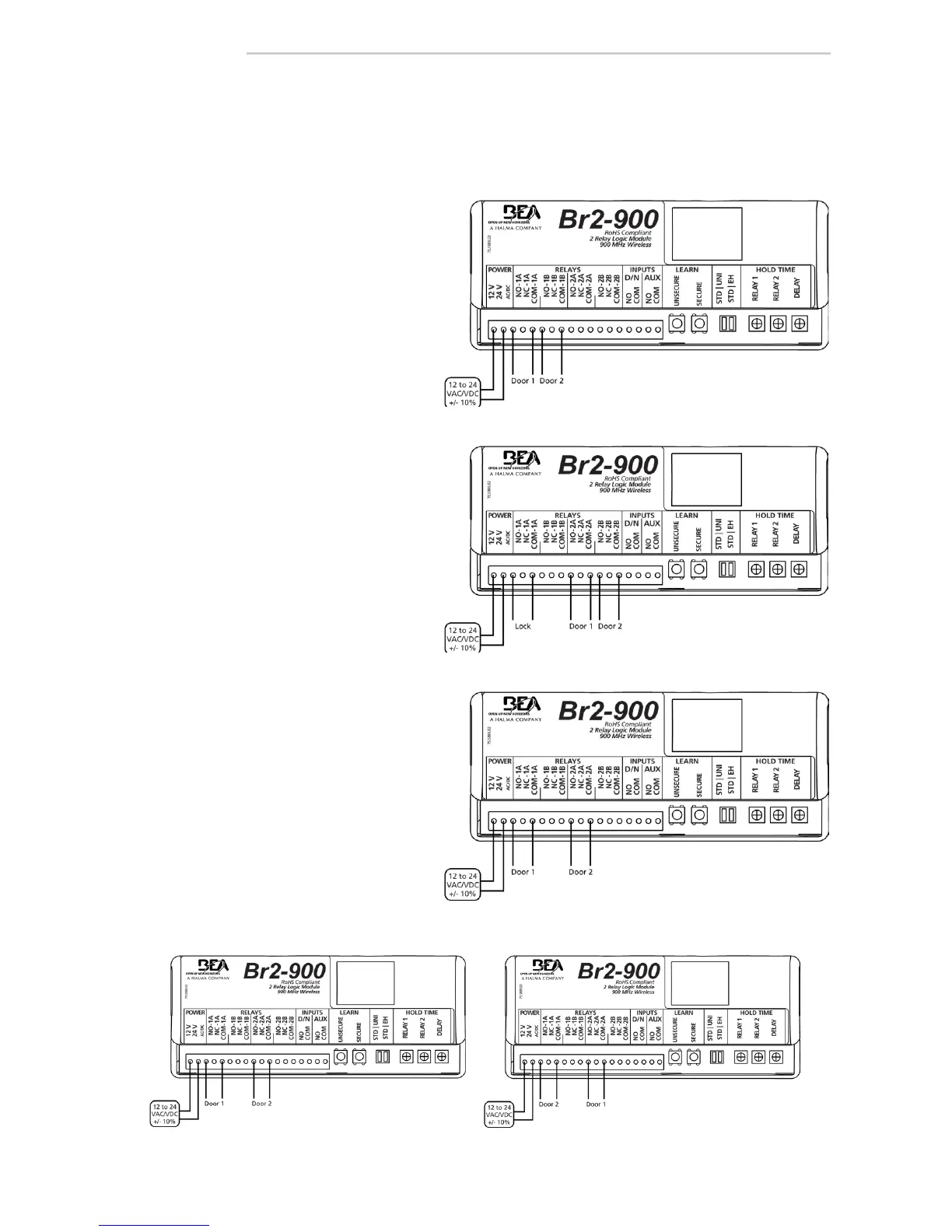

Vestibule Configuration
1-Way Traffic (simultaneous)
Door 1 and Door 2 will open simultaneously.
1-Way Traffic (sequence)
Door 1 will open and then Door 2 will open
after a delay set by DELAY POT.
1-Way Traffic (lock + simultaneous)
Lock(s) will unlock and then Door 1 and
Door 2 will open simultaneously.
2-Way Traffic
Door 1 will open and then Door 2 will open after
a delay set by DELAY POT.
Door 2 will open and then Door 1 will open after
a delay set by DELAY POT.
SET-UP (CONT.)
