11
governor (0.5-14 seconds)
The level scan: 540 degrees, Resolution 8Bit/16Bit , automatic correction
The scan vertical: 250 degrees, Resolution 8Bit/16Bit, auto-correction
beam angle : parallel beam angle : 0 - 3.8 ° Protection: IP20
control mode : International standard DMX512
Channels : 20 Channels
Other features: the mechanical closed light source power automatically
halved
Size: 345 MM (arm width) X475 MM (total high ) X405 (bottom width) MM
Double flight case size : 73 0MM X465 MM X69 0M M
Carton size: 46 0MM X 385 MM X 55 0M M
Net Weight: 17KG

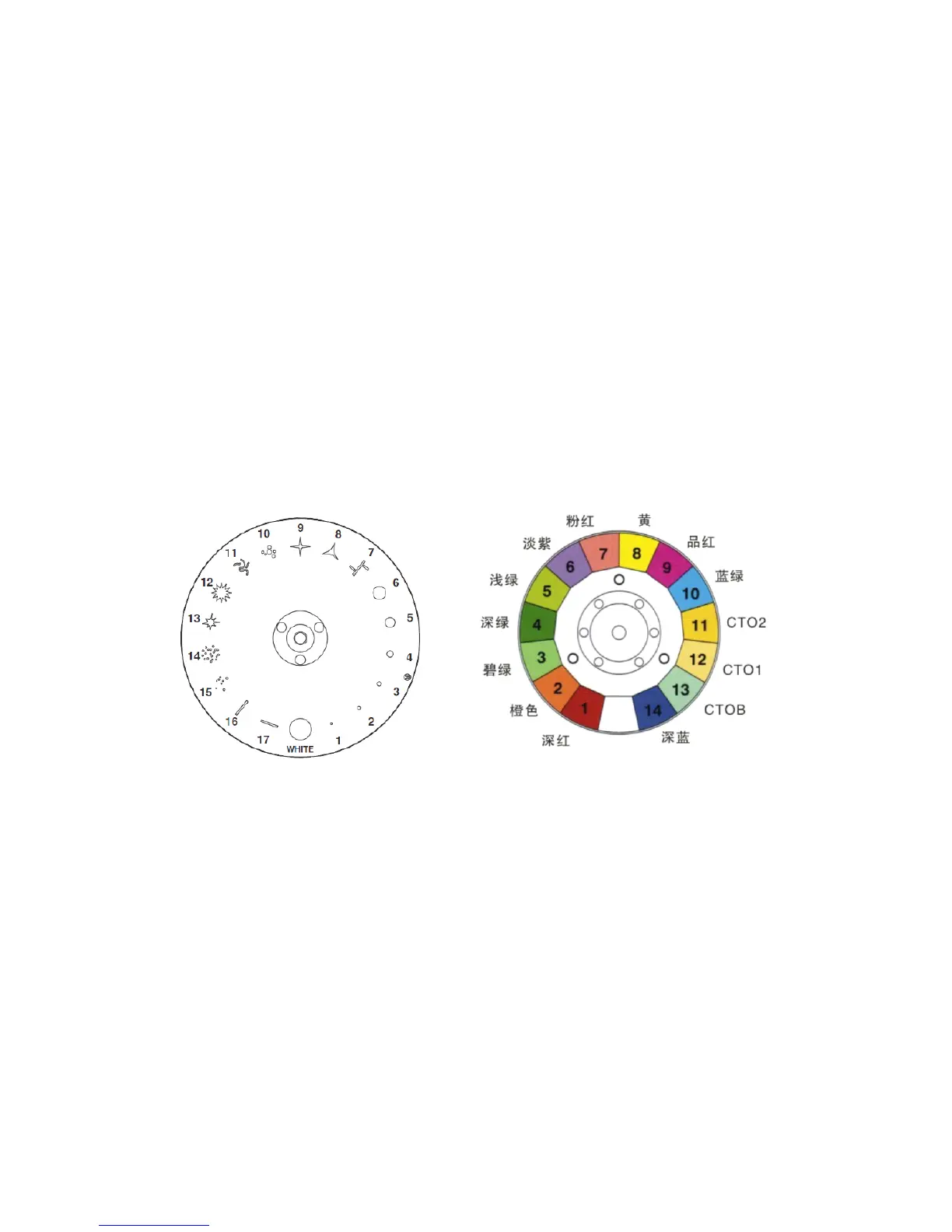

Patterned plate: a pattern dribbling 17 fixed gobos + white, the pros and
cons of two-way rotation
Color wheel: 14 colors + white, positive and negative bi-directional
rotation
Beam
Beam
Beam
Beam 200
200
200
200 Channel
Channel
Channel
Channel Sheet
Sheet
Sheet
Sheet
Channel mode
Standard vector
CH1: X scan
0-255 0--450 °
CH2: Y scan
0-255 0--270 °
CH3: X scan fine
0-255 0--2.1 °
CH4: Y scan fine
0-255 0--1.0 °
