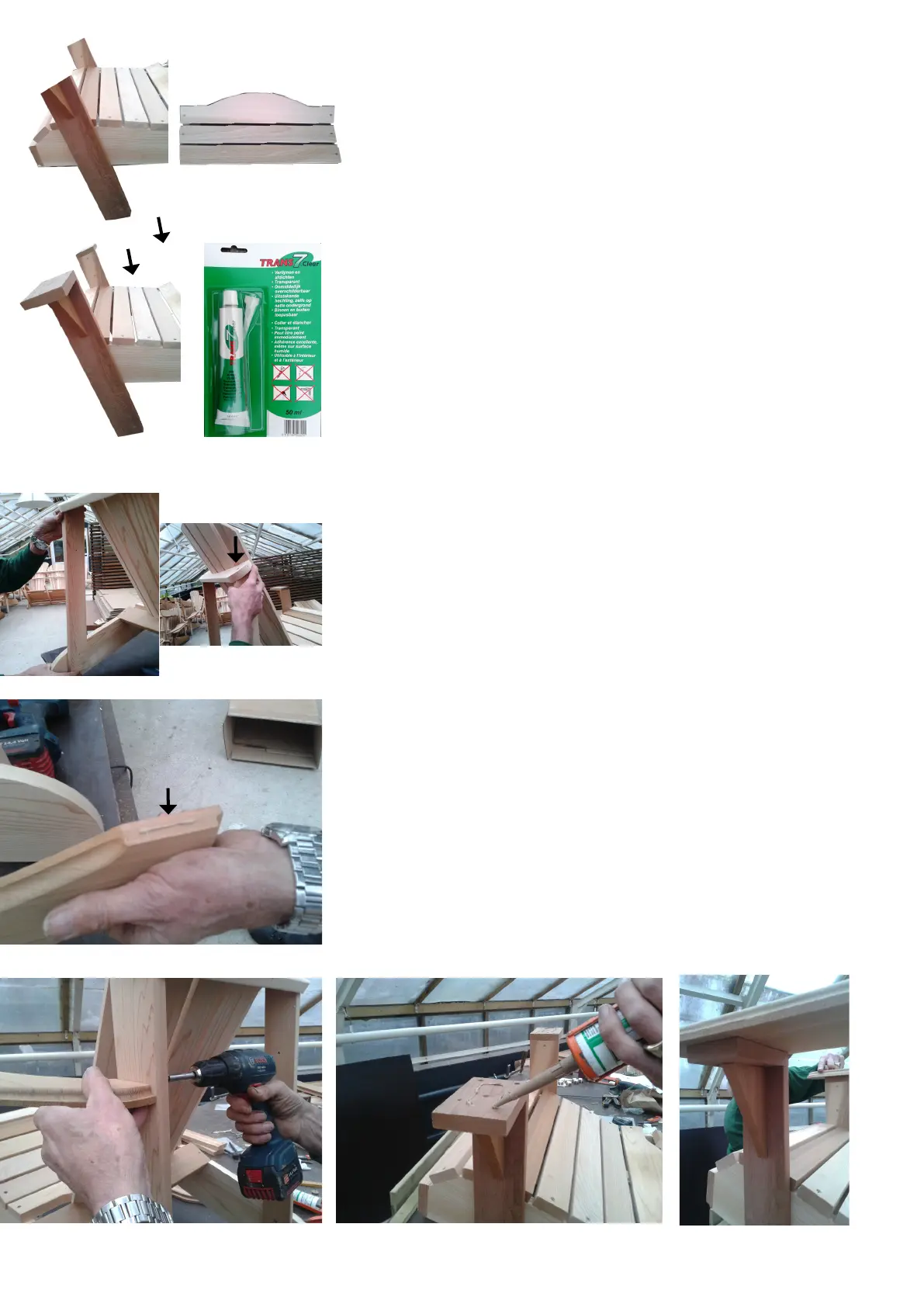

Place the comfort slat (13) and six seat slats(2) on the sides
as shown in the picture, and space out evenly, leaving a small
gap between the comfort slat and the back assembly.
step 7.
2.
13.
2.
Attach each arm support(3) to the tops of the legs with
two screws. Push a triangle (4) into the right angled corner
(lining up the two pre-drilled holes in the leg and the centre
pre-drilled hole on the arm support) and attach with three
screws. Repeat on the other side. Use Tec7.
step 8.
3.
4.
Attach the top of the struts (7) to the underside of the top
back support (11) with two screws in the pre-drilled holes.
If the back assembly is noticeably leaning o centre, grasp it
rmly and move it le or right until the bottom of the struts
can be attached without twisting or bending them. Attach the
bottom of the struts to the sides with one screw each for now.
Do not apply glue here yet.
step 9.
7.
7.
Attach the back of the arm (5) to the strut with one screw
through the pre-drilled hole on the strut. Attach the front
of the arm to the arm support (3) with two screws from the
under side.
step 10.
First drill a hole with 3 mm wood drill bit Use glue Tec7!
