1. Remove the wire clip; connect the power connection wire and signal
control wire (only for cooling and heating unit) to the wiring terminal
according to the colour; x them with screws.

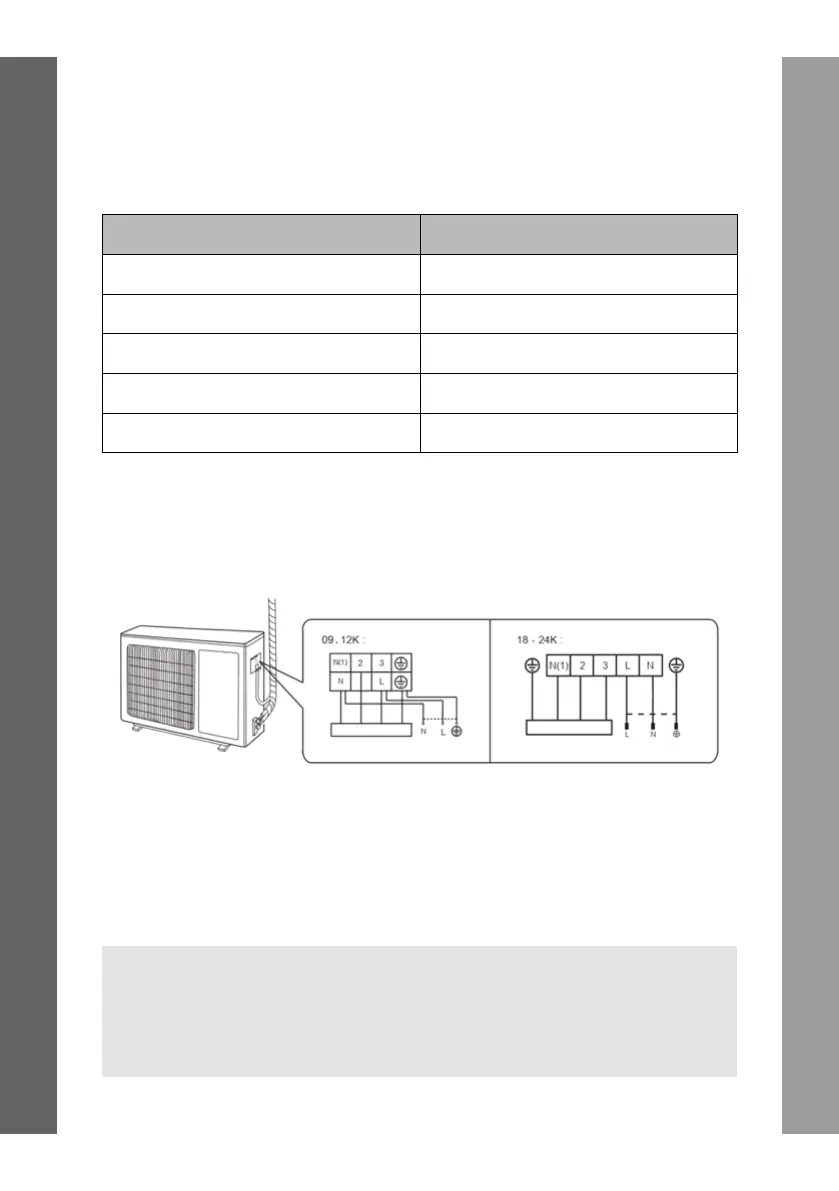

Note: the wiring diagram is for reference only, please refer to the actual
appliance
2. Fix the power connection wire and signal control wire with a wire clip
(only for cooling and heating unit).
4. Tighten the union nut with a torque wrench by referring to the sheet
below.
Hex nut diameter
Ø 6 15~20
Ø 9.52 30~40
Ø 12 45~55
Ø 16 60~65
Ø 19 70~75
Note:
• After tightening the screw, pull the power cord slightly to check if it
is rmly secured.
• Never extend or shorten the power connection wire by cutting it.
