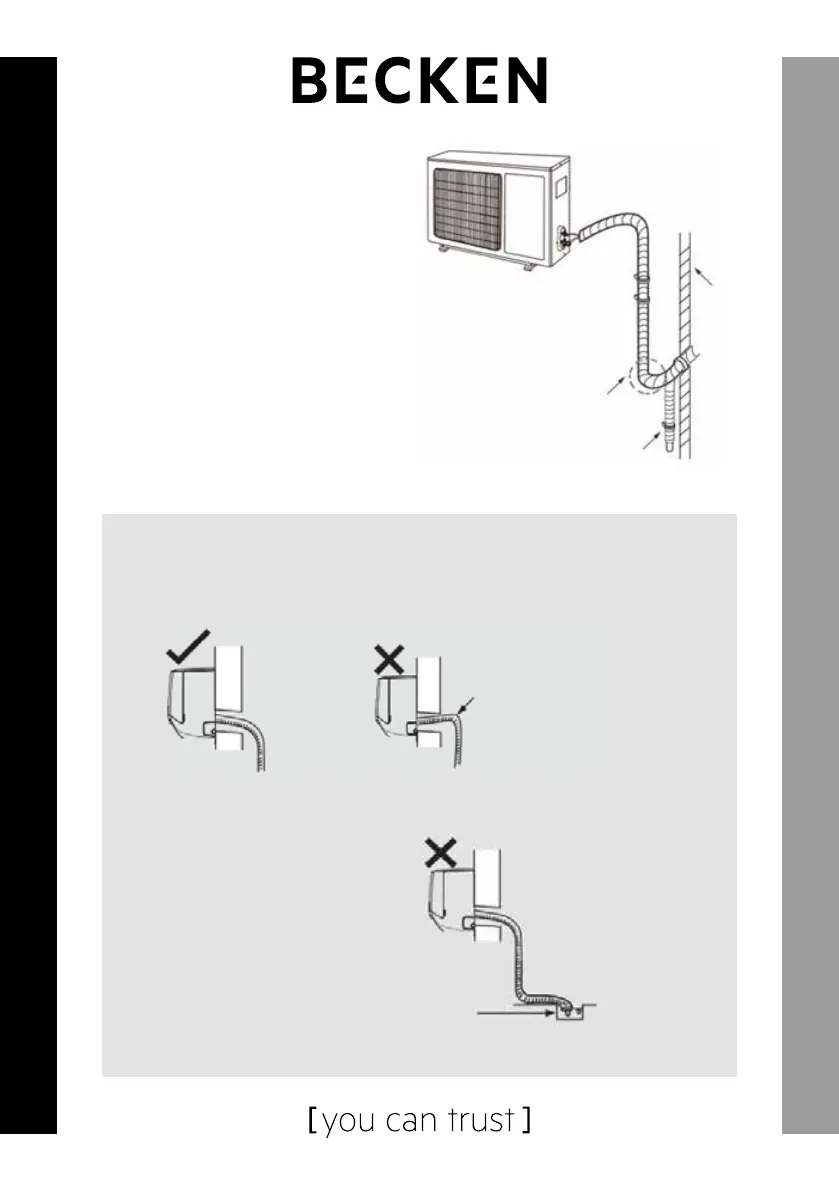

Step six: tidy the pipes
1. The pipes should be placed
along the wall, without excessive
bending, and hidden if possible.
The min. semi-diameter of the
bent pipe is 10 cm.
2. If the outdoor unit is higher than
the wall opening, you must set
a U-shaped curve in the pipe
before directing it into the room,
in order to prevent rain from
getting into the room.
Wall
U-shaped curve
Drain hose
Note:
• The height of drain hose through the wall shouldn’t be higher than
the outlet pipe hole for the indoor unit.
• The water outlet can’t be placed in water in order to drain smoothly.
The drain hose can’t raise upwards
The water outlet can’t be placed in water
