Becker DTM - Subwoofer;Centre Speaker Volume

Subject to correction and technical modifications 32 Copyright by Becker GmbH, D-76303 Karlsbad
,QVWDOODWLRQJXLGH
Recommended tool: Cable installation tool for speedometer cables
from VDO, order number: 1999.10.13.000.110
If you require vehicle-specific parts, please consult the vehicle manu-
facturer or your nearest VDO branch.

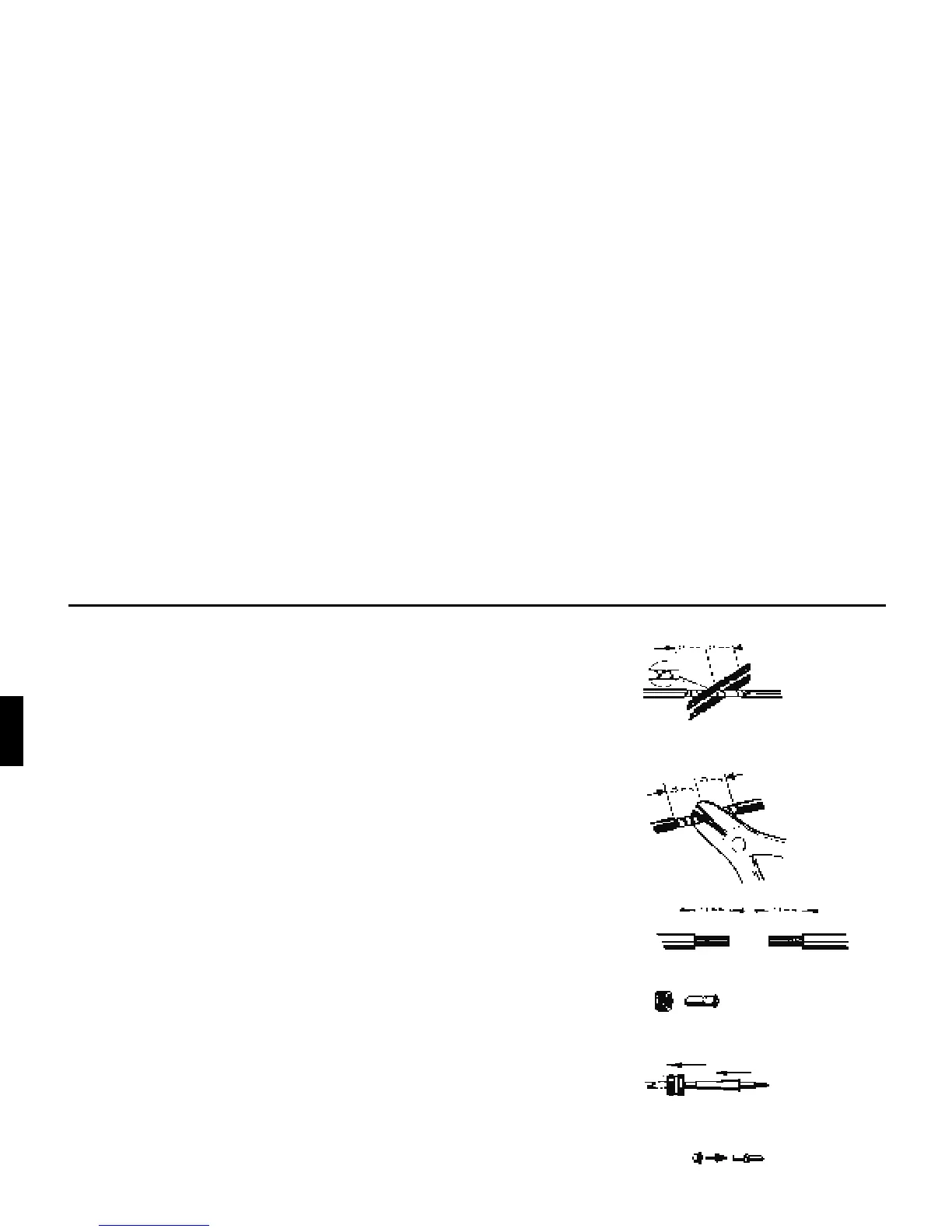

• Using a metal saw, saw into the cable approx. 1 mm at right angles
to the profile and break off (Figure 3).
• Then cut the cable in the centre with side-cutting pliers
(Figure 4).
)
For protective hoses with wire netting, the hose and flex ca-
ble can be cut directly with the side-cutting pliers.
• Shorten the protective hose again at both ends up to the plastic
sheathing. Check whether the ends of the flex cable still engage in
the speedometer and the gearbox.
• Shorten the inner cable to a projection of 13 mm (Figure 5).
• Connect the union nut and hose sleeve (Figure 6) and push onto the
hose ends (Figure 7).
• Connect friction washer to dog (Figure 8).
• Remove grease from flex cable and connect dog to flex cable. Us-
ing a suitable installation tool, press the dog onto the flex cable
(Figure 9).
)LJXUH
)LJXUH
)LJXUH
)LJXUH
)LJXUH
)LJXUH)LJXUH
