Becker DTM Installation Guide

Subject to correction and technical modifications 33 Copyright by Becker GmbH, D-76303 Karlsbad
,QVWDOODWLRQJXLGH
)

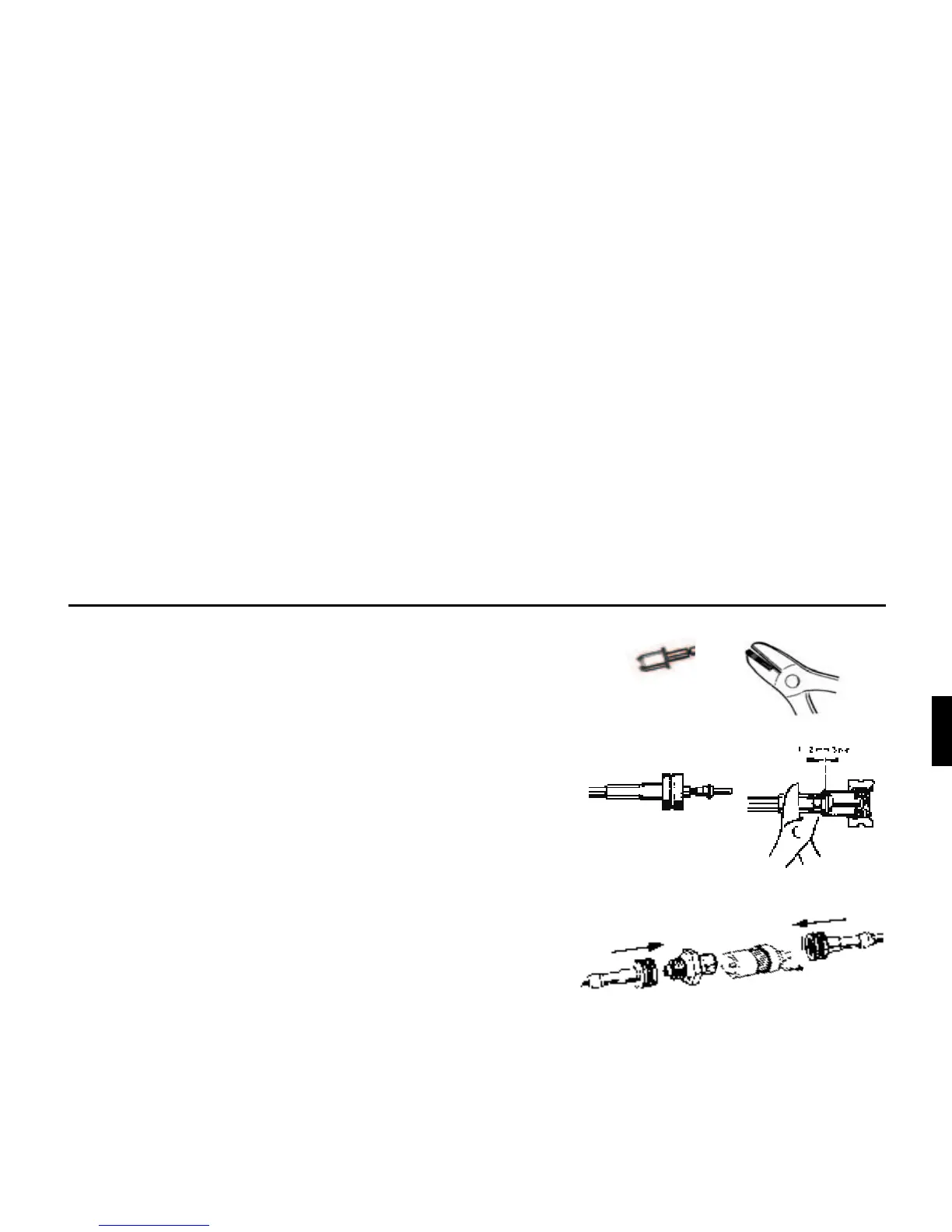

When pressing in, ensure that the dog is securely positioned
and that it runs smoothly.
• Pull the hose sleeve and nut as far as possible in the direction of the
dog, to achieve approx. 1-2 mm play (Figure 10).
Slightly squeeze the hose sleeve with pliers. Wrap with isolating
tape to secure (Figure 11).
• Screw the connecting piece and the speed sensor into the cable
(Figure 12).
• Connect speed sensor using the extension cable from VDO (part
number: 2152.90 30 0100).
:LUHFRQQHFWLRQVIRUWKHVSHHGVHQVRU
Brown - earth (terminal 31)
Black - power supply (terminal 15), 9 - 16V, 30 mA
Blue/red - signal for socket A pin 1
)LJXUH
)LJXUH
)LJXUH
)LJXUH
