Decommissioning
6 Decommissioning
6.1 Disassembly and disposal
A CX20x0 hardware configuration with system interfaces is dismantled
in 3 stages
1. Switching off and disconnecting the power supply
Before a CX20x0 system can be dismantled, the system should be switched off, and the power supply
should be disconnected.
2. Removing from the tophat rail
Before the individual modules are disconnected, the whole CX20x0 hardware block should be removed from
the tophat rail. Proceed as follows:
2.1. Release and remove the first Terminal next to the power supply unit
on the tophat rail.
First remove any wiring from power supply unit and then from the first terminal on the tophat rail next to the
power supply unit. If the wiring is to be reused for another system, it is advisable to make a note of the

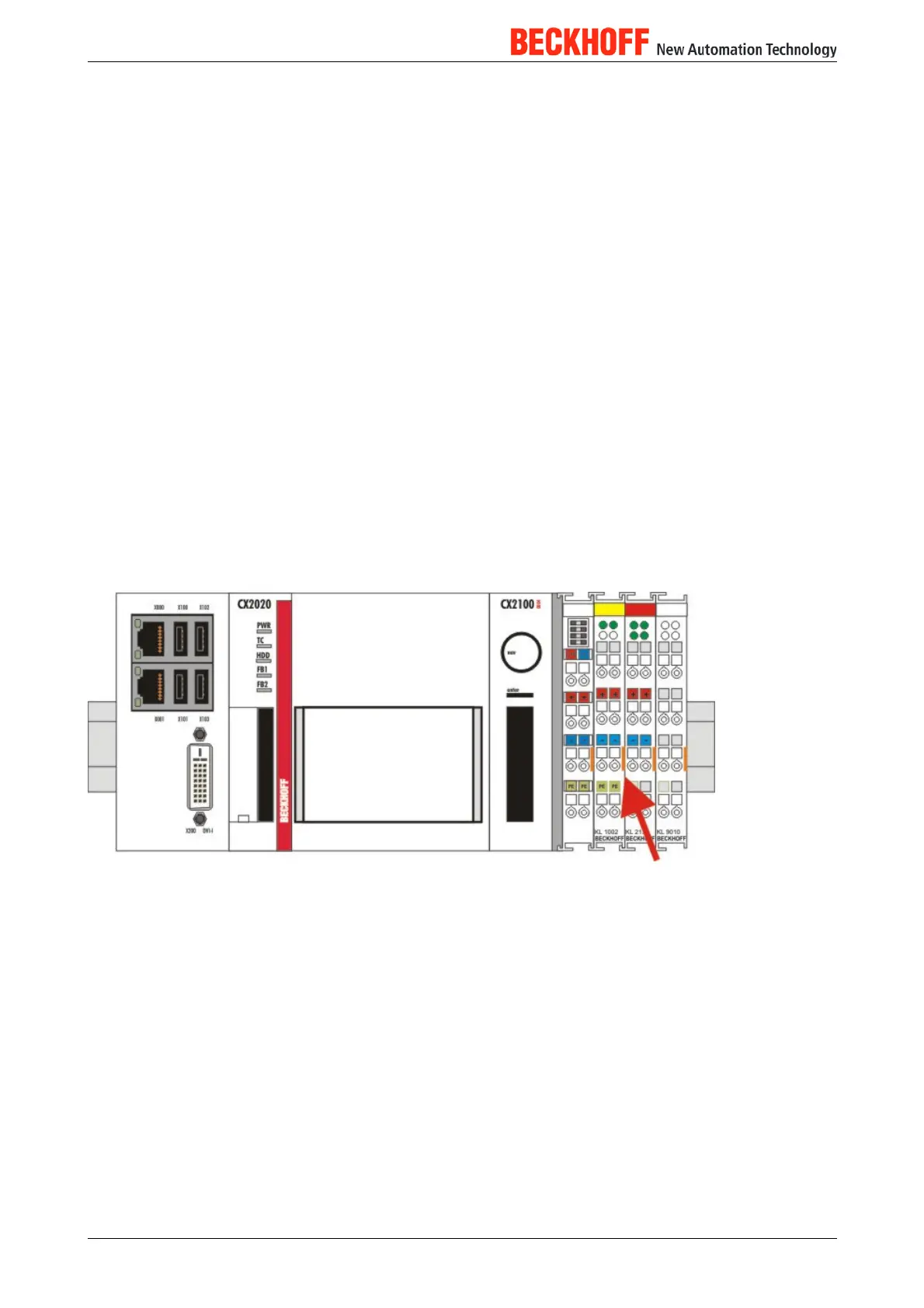

connections. Then pull the orange terminal release (see arrow) to release the terminal and pull it out.
2.2. Releasing the CX20x0 systems
To release the CX20x0 block, release the DIN rail bracket above and below the device. Push the hook outer
with a screw driver. An audible click indicates that the device is released.
CX2020, CX2030, CX204042
Version 1.2
