Appendix
Embedded PC 53
Interactive tool on CX9000:
First the program "Cx9ImageUpdate.exe" must be downloaded from BECKHOFF FTP-Server. If the CX9000 has no
USB the tool can be transferred via ftp onto the system. Use CERHOST-Tools to control the CX9000 remote via

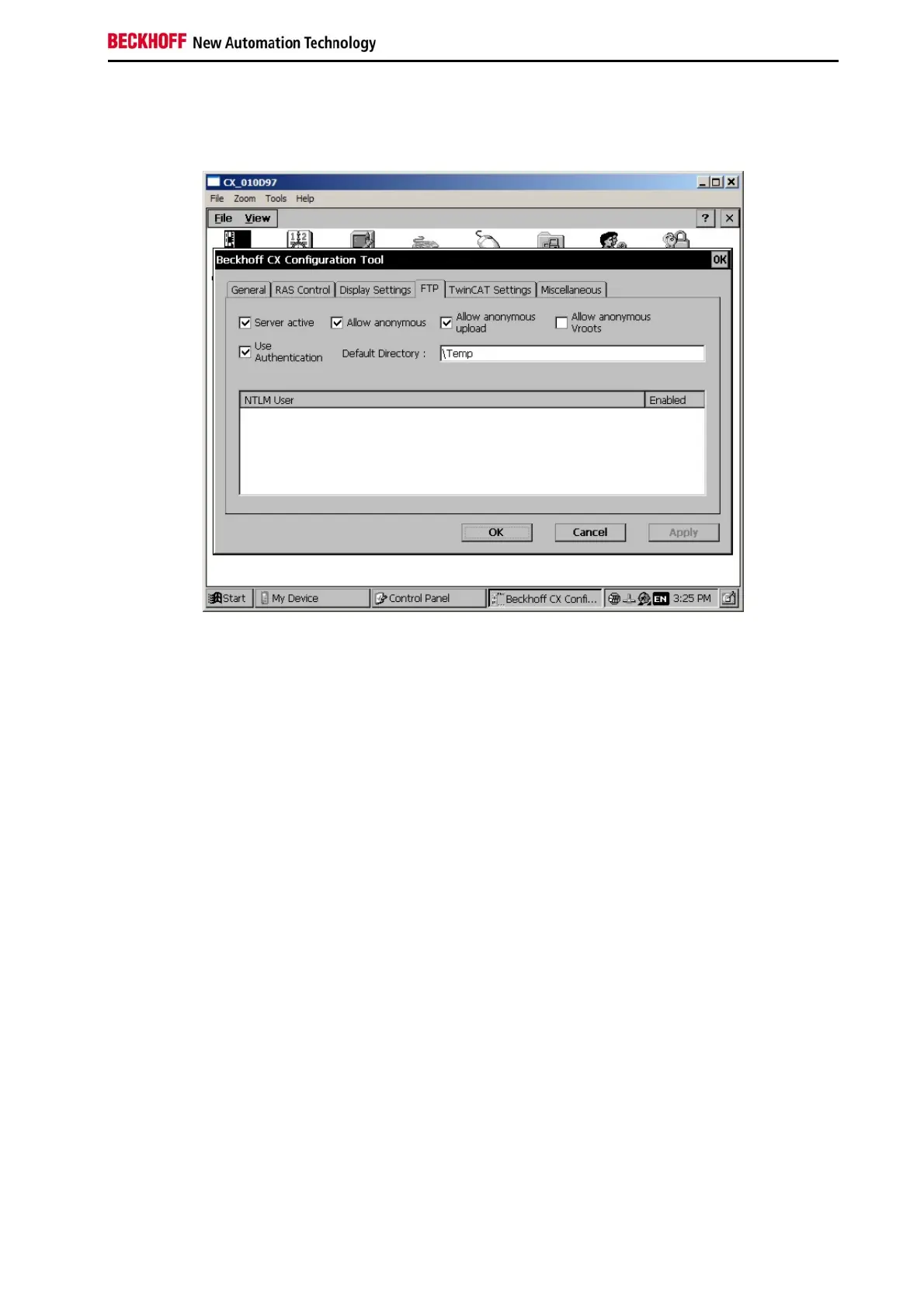

Ethernet. Activate the FTP server on the CX, if not it is disabled. The necessary configuration is shown below:
It is a good idea to choose "\Temp" or "\Public" as target directory, though this range is mapped into the RAM regions
instead of the hard disc located in flash memory. For operation the system must be rebooted.Just follow the
instructions on the screen. After restart of the CX9000 the program can be copied easily to the CX9000 with the
explorer:
