Product overview
CX9000 / CX9010 17Version: 2.6

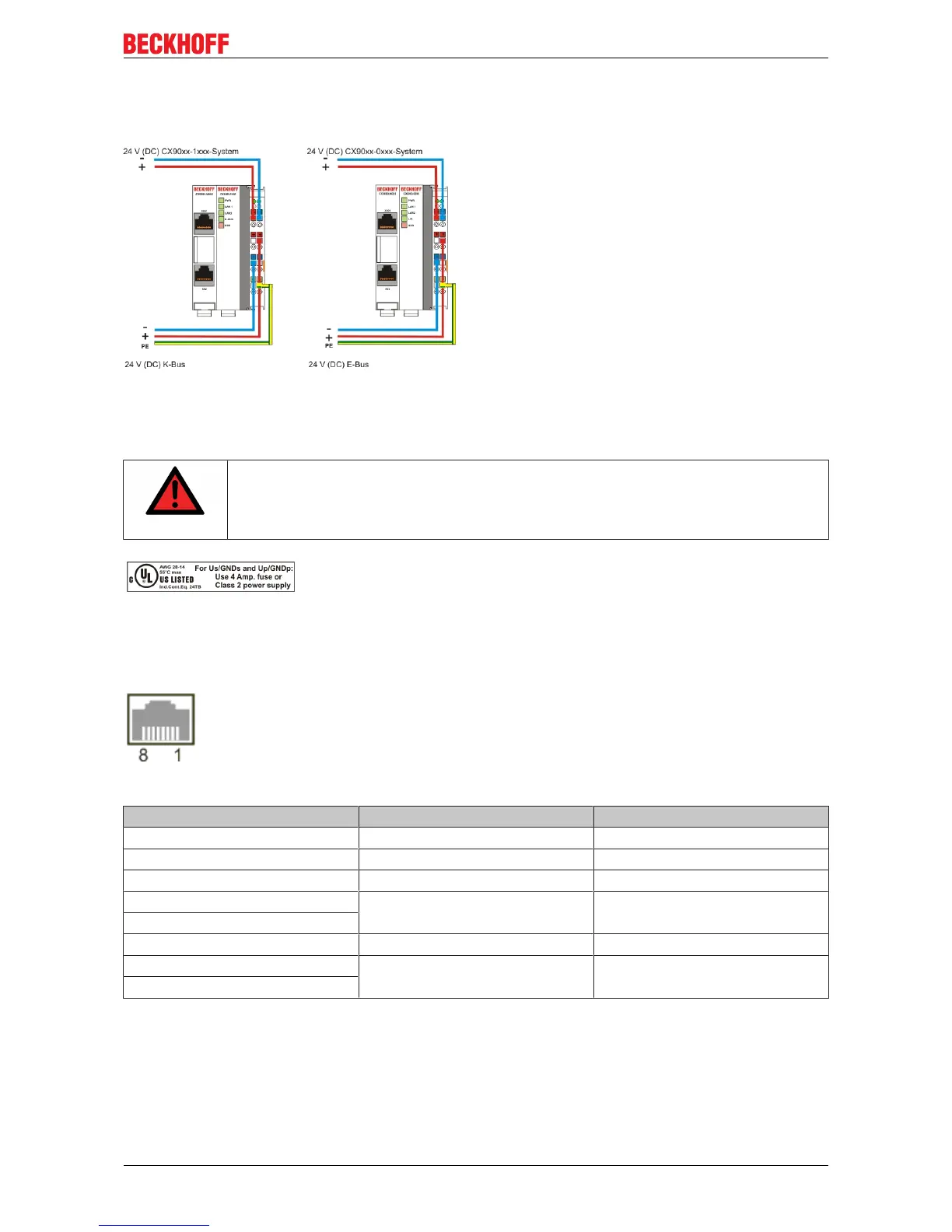

2.3.7 Connections
The system is supplied with power via the integrated power supply. This is wired as follows:
The basic module is powered via the upper connectors with 24 V DC. The terminal bus can be supplied via
the lower connections.
UL requirements
DANGER
Compliance of the UL requirements
To meet the UL requirements, the CX-Controllers must not be connected to unlimited
power sources!
CPU basic module with 2 Ethernet RJ 45 connectors:
RJ 45 interface (socket):
Table1: Assignment of the RJ45-interface, Port 1:
PIN Signal Desciption
1 TD + Transmit +
2 TD - Transmit -
3 RD + Receive +
4 connected not used
5
6 RD - Receive -
7 connected not used
8
TD & RD are exchanged at the hubs or between two PCs.
