Beckhoff EK1501 User Manual

Commissioning/application notes
EK110x, EK15xx 61Version: 3.6
Attention
TX / Rx channel assignment
During cable assembly [}62] note the assignment of the optical channels in the connec-
tion sockets. In the EK1541 the light-emitting transmitter channel (Tx) is the lower outlet in
the connection sockets.

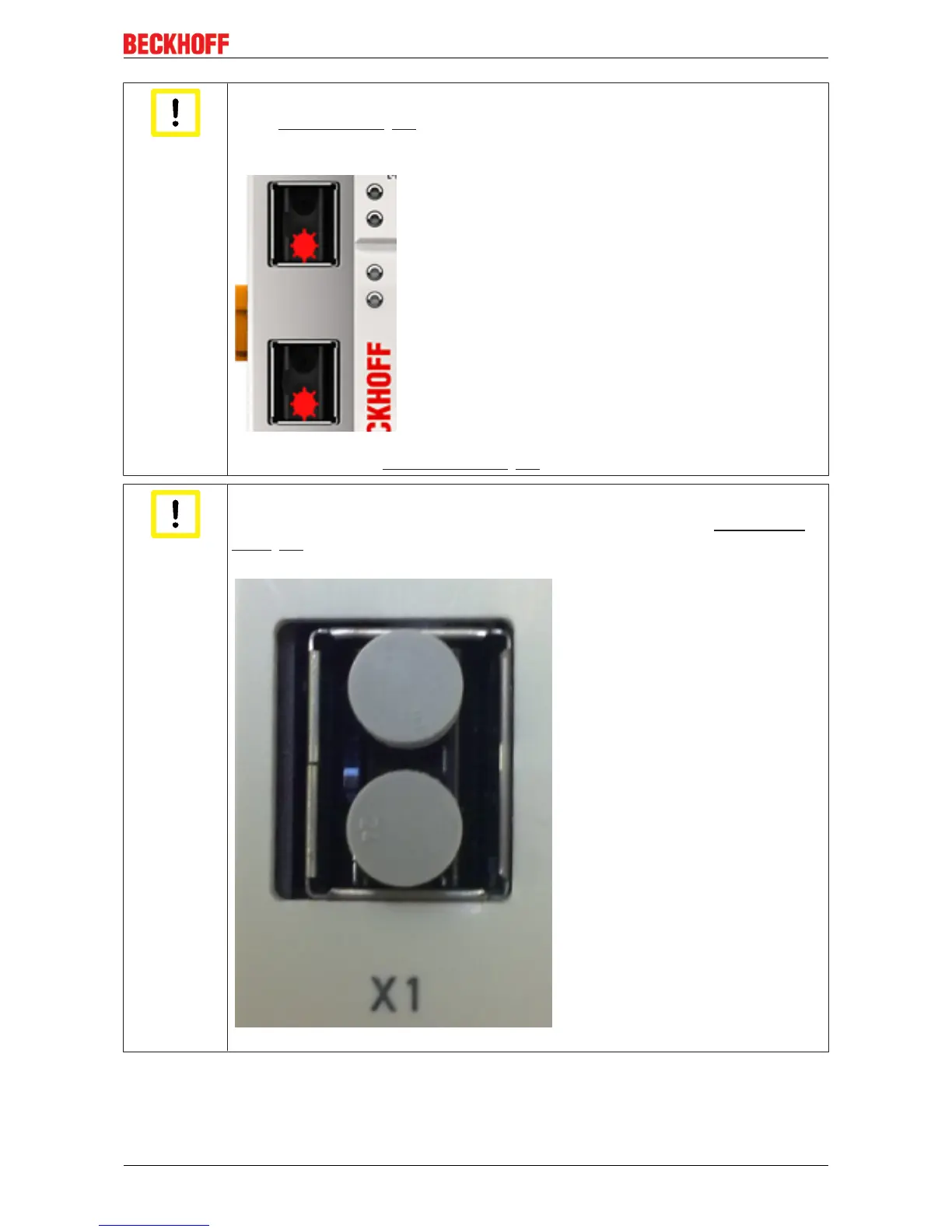

Figure: Transmitter channels in the EK1541
Be sure to observe the safety instructions [}71] for class 1 lasers!
Attention
Use of blind plugs
In order to avoid accidents due to glare (Class 1 laser, please observe the safety instruc-
tions [}71]) and to protect the transceiver against environmental influences, unused sock-
ets should be sealed using the blind plugs provided!
Figure: Blind plugs in unused sockets
