Jeep Wrangler TJ Bedrug/BedTred Interior Installation Instructions

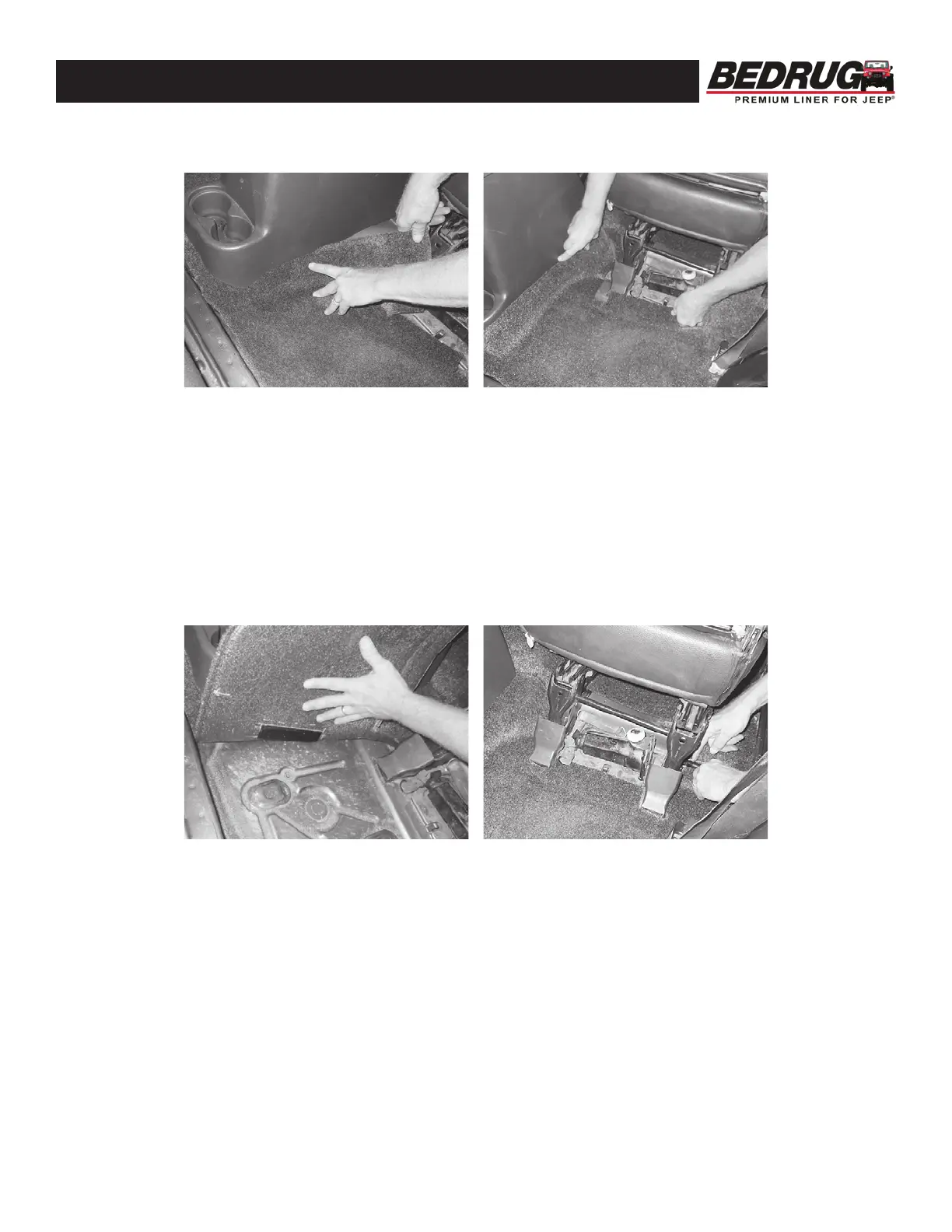

FIGURE 11:
FIGURE 12:
FIGURE 13:
FIGURE 14:
9. Tuck the part under the console and around the front seat brackets as shown. (Fig. 11 and Fig.12)
10. Next lift the floor piece from the outside of the vehicle toward the center to access the hook fastener.
(Fig. 13) Clean surface with alcohol then remove the film backing from both pieces and roll the floor
back into place. Firmly press the top surface to ensure adhesive attachment.
11. Now fit and tuck part around seat brackets, roll bar, and seat belt mounts. (Fig. 14)
Repeat for opposite side of vehicle.
12. Retighten the two console screws located in the bottom of the cup holder.
BEDRUG, INC.
Q
635 Old Hickory Blvd, Old Hickory, TN 37138-3162
Q
800-462-8435
Q
www.bedrug.com
