3

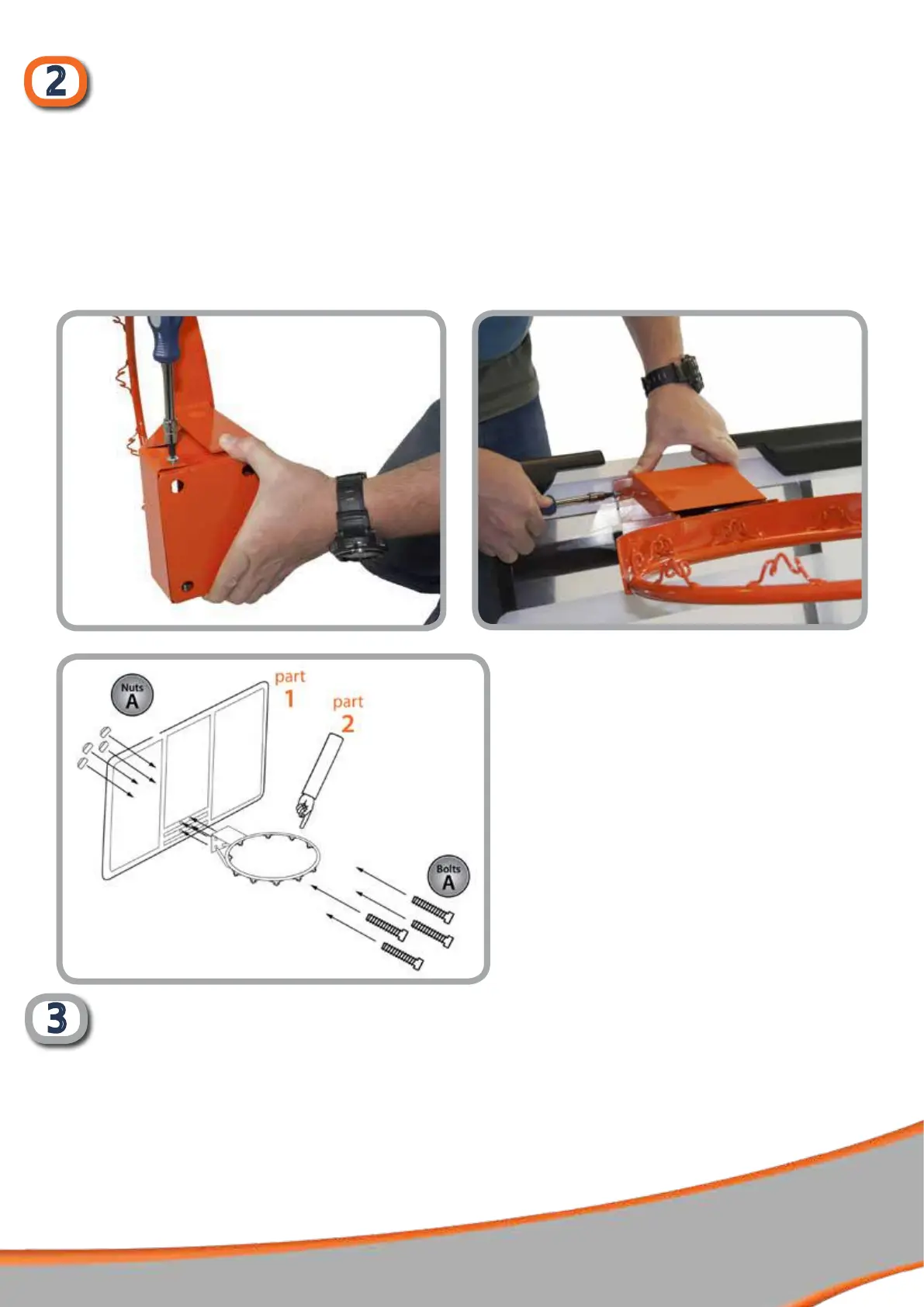

Attach Ring to Backboard
You will need:
Hoop/Ring (part 2) 4 x Bolts, Nuts & Washers A (M10 x 40mm)
Backboard (part 1)
First, remove the metal case from the back of the ring using a crosshead screwdriver.
Fix the Hoop/Ring (part 2) to the front of the Backboard (part 1) using four Bolts, Nuts & Washers A.
The bolts go through the back of the backboard then through the ring and are xed in place using the nuts. Now
put the metal case back on the ring.
2
They should sit in this order once xed:
Bolt > Washer > Ring > Washer > Nut
3
Attach Backboard Brackets
You will need:
Pre assembled parts from step 2 (parts 1 + 2) 4 x Bolts & Washers B (M10 x 55mm)
Upper Bracket (part 4) Lower Bracket (part 5)
Fix the Upper Bracket (part 4) and the Lower Bracket (part 5) to the Backboard (part 1) using four Bolts, Nuts and
Washers
B. The cross bar on the Lower Bracket goes close to the Backboard. For the Upper Bracket the cross bar with the
xing joint is positioned away from the Backboard.
Please Note: These bolts need to be tightened to the right level. If they are too tight, it will be impossible to adjust
