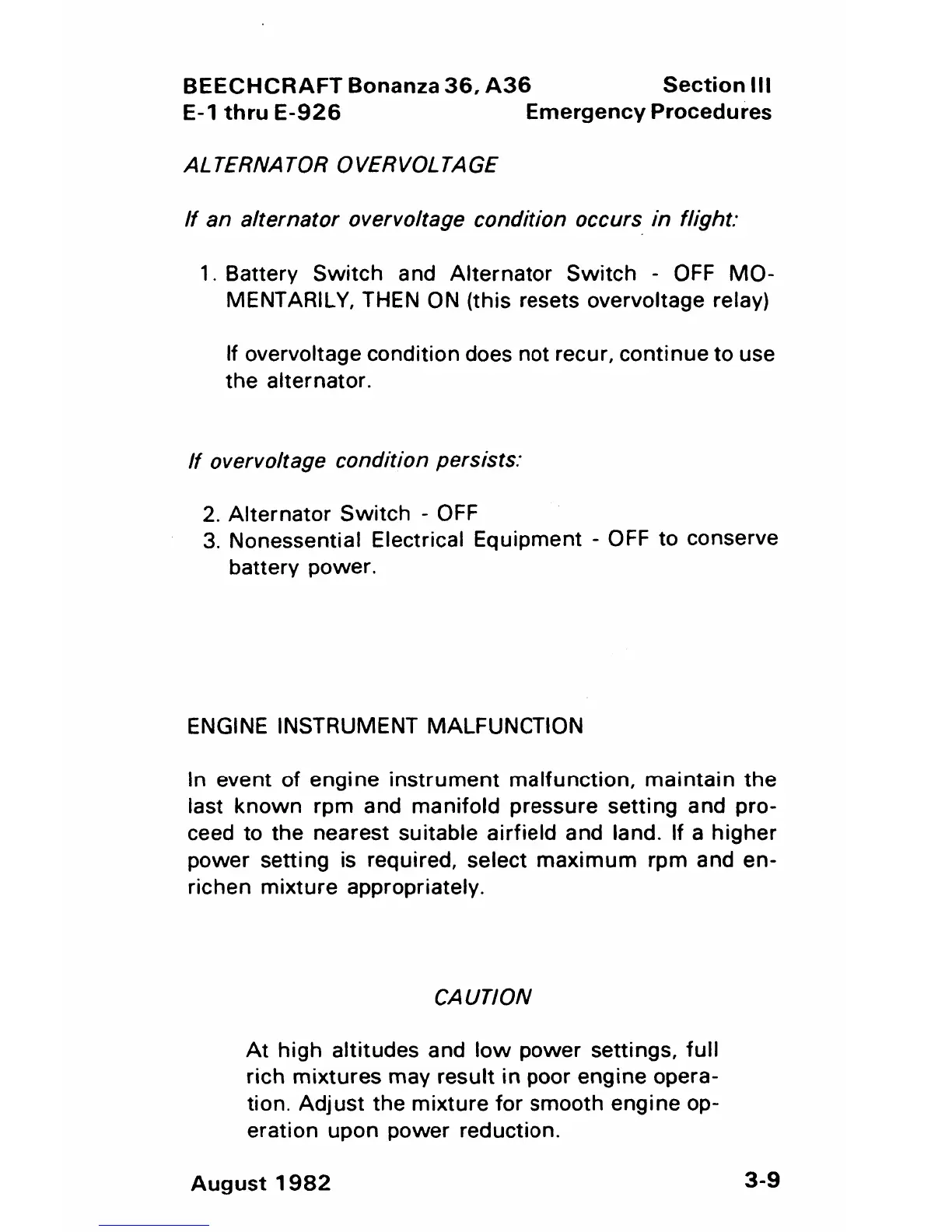

Beechcraft Bonanza 36 - Alternator Overvoltage; Engine Instrument Malfunction; If an Alternator Overvoltage Condition Occurs in Flight; If Overvoltage Condition Persists
