BEFCO CYCLONE C30-CE5 - Page 24

8. Replace both belts.
9. Lower central plate. Replace front nuts. Tighten front and rear nuts holding down
central plate. Tighten four engine bolts. Tighten belt tensioner bolt.
10.Replace spring tensioner.
11.Check both belts for proper tension.
12.Reinstall the belt shields.
MAINTENANCE 24 BEFCO
C
YCLONE OPERATOR’S MANUAL
1
4
3
3
5
6
7

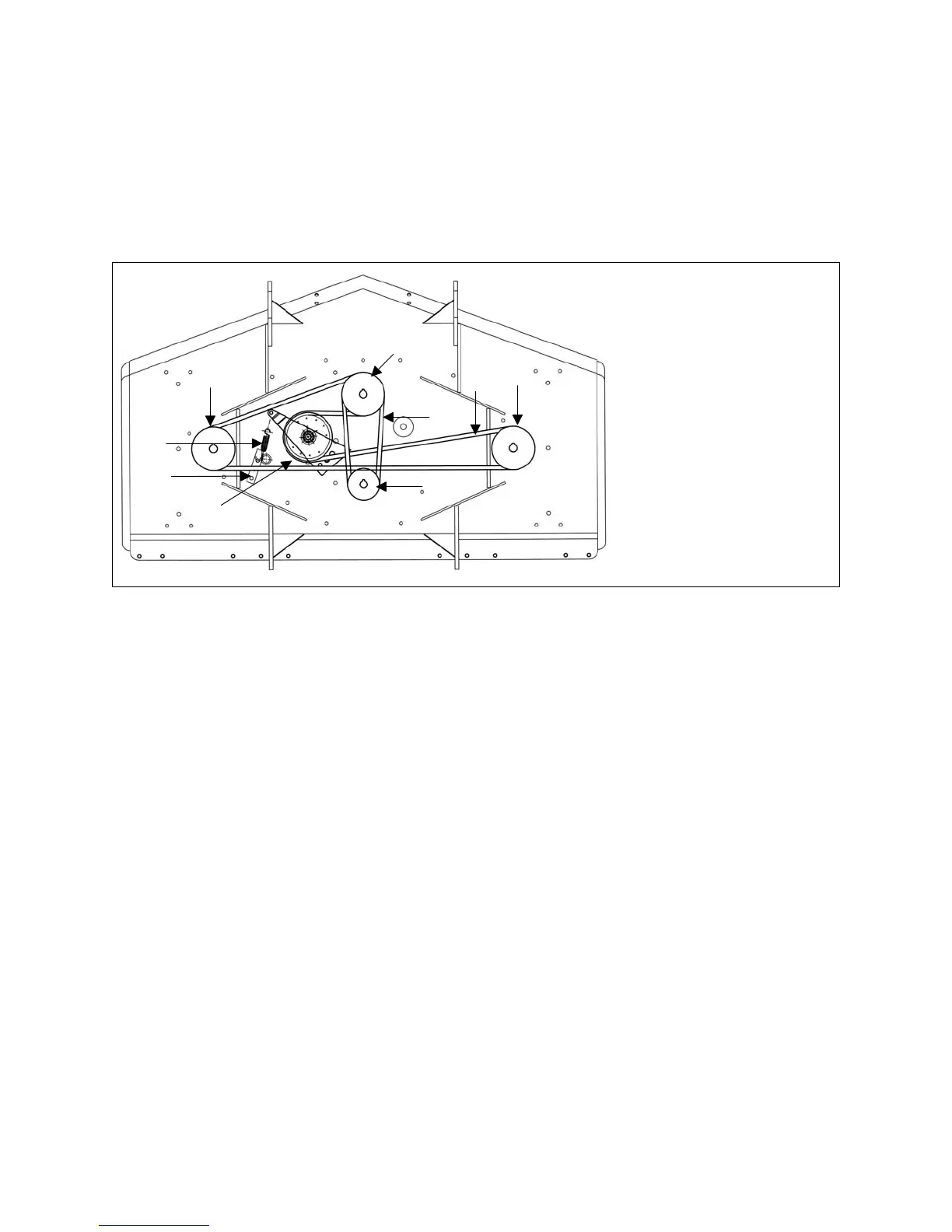

Fig. 10
1. centrifugal clutch
2. central pulley
3. side pulleys
4. secondary belt
5. belt tensioner
6. hitch plate
7. spring
2
8. main belt
8
