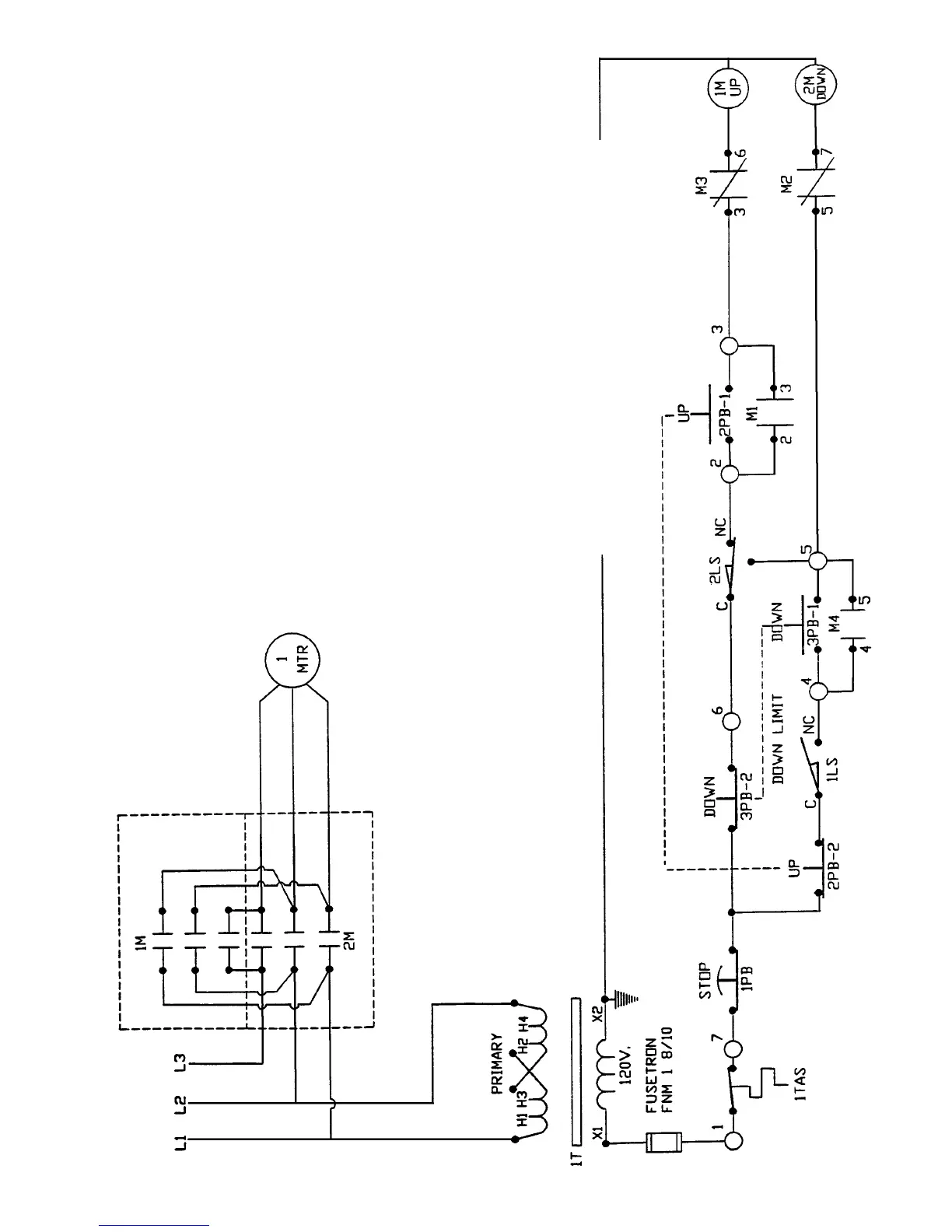

ELECTRICAL CIRCUIT

1 LS LIMIT SWITCH (DOWN)

2 LS LIMIT SWITCH (DEPTH SWITCH)

1 M, 2 M MOTOR STARTER (REVERSING)

M1 INTERLOCK ON 1 M (NO-UP)

M2 INTERLOCK ON 1 M (NC-UP)

M3 INTERLOCK ON 2 M (NC-DOWN)

M4 INTERLOCK ON 2 M (NO-DOWN)

1 MTR PRESS MOTOR

1 PB PUSHBUTTON STOP (NC)

2 PB-1 PUSHBUTTON UP (NO)

2 PB-2 PUSHBUTTON UP (NC)

3 PB-1 PUSHBUTTON DOWN (NO)

3 PB-2 PUSHBUTTON DOWN (NC)

1T TRANSFORMER CONTROL

1 TAS OVERLOAD SWITCH WOUND IN 1 MTR

NOTE: 1 LS HAS ADDITIONAL CONTACTS (2 NO &

1 NC) THAT MAY BE USED FOR INTERLOCKING.

F-7891-3

Rev. 3-1-99 7-1-98
