Behlen WRSJ - Parts Description

F-19183
12
7-1-98

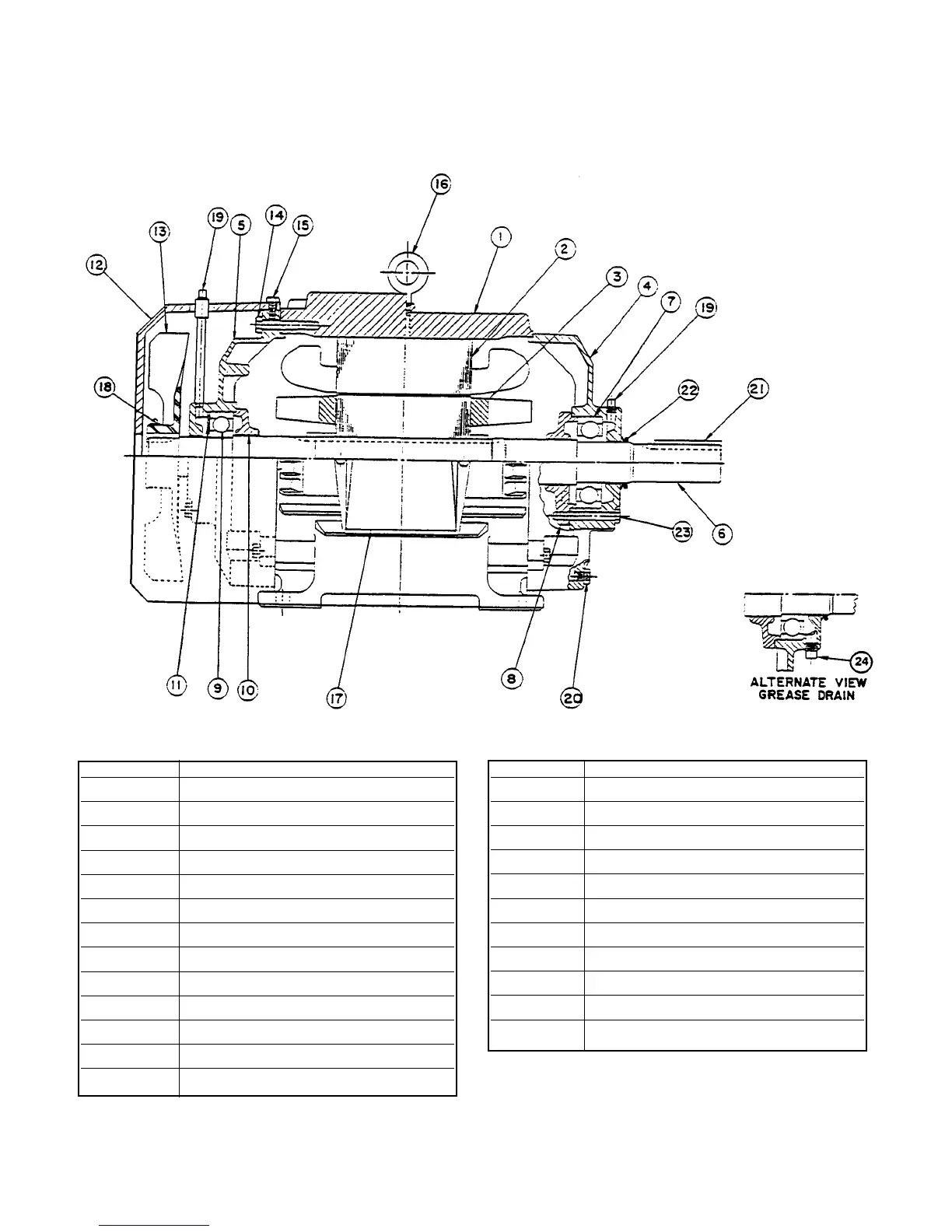

CROSS SECTIONAL AND PARTS IDENTIFICATION SECTION AND DRAWINGS.
REF. NO. PARTS DESCRIPTION
1 FRAME
2 STATOR
3 ROTOR/INTERNAL COOLING FAN
4 BACKEND BRACKET
5 FRONTEND BRACKET
6 SHAFT
7 BACKEND BALL BEARINGS
8 BACKEND INNER BERARINS
9 FRONTEND BALL BEARINGS
10 FRONTEND INNER CAP
11 WAVE WASHER, FRONTEND
12 FAN COVER
13 OUTER COOLING FAN
REF. NO. PARTS DESCRIPTION
14 FRONT END BRACKET BOLTS
15 FAN COVER BOLTS
16 EYEBOLT
17 TERMINAL BOX
18 FAN CLAMP
19 GREASE ENTRY
20 CONDENSATION DRAIN
21 KEY
22 SLINGER
23 BACKEND CAP BOLTS
24 GREASE DRAIN
