Behringer A800 - A800 Controls; Front Panel Controls and Indicators; Rear Panel Inputs and Outputs

10 A800 Quick Start Guide 11

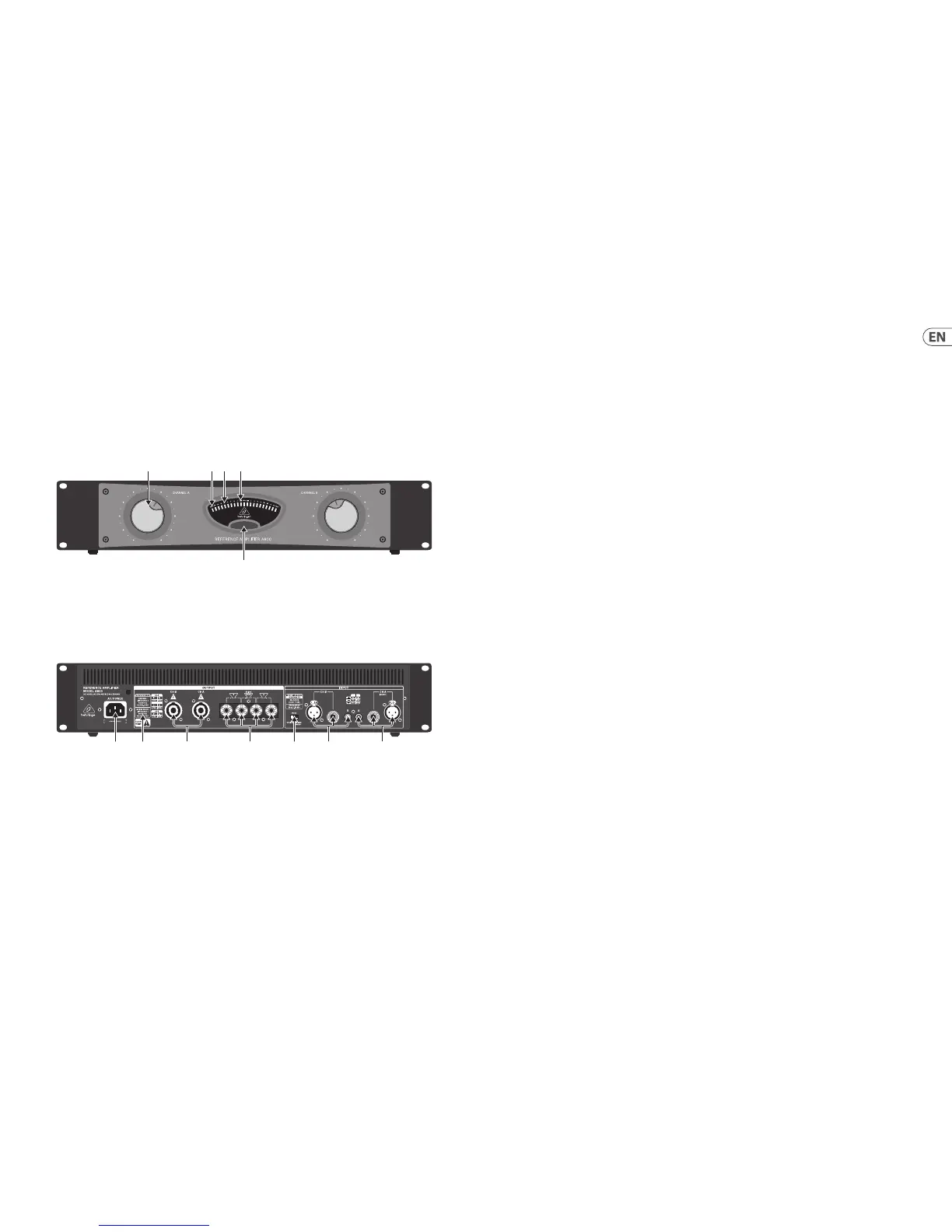

A800 Controls
(2) (3) (4) (5)
(1)
(9)(10) (8)(11)(12) (6)(7)
(EN) Controls
(1) The POWER switch is used to power up the
A800. The POWER switch should always be in
its “Off” position when you connect the unit
to the mains.
POWER LED lights up as soon as you power up
the A800.
(2) Each channel features a volume control. Useit
to adjust gain on your A800. Both volume
controls should be turned all the way to the
left whenever you power the unit up or down.
If an active signal is present on the input,
turningthe volume down will protect your
speakers and your ears from unwanted “pops”
or transients.
(3) The PROT LED lights up whenever the
protective circuitry mutes the speaker output.
Please turn your A800 off immediately
whenever this LED is lit.
(4) The high-precision power indicator gives out
current signal strength.
(5) The CLIP LED lights up when the signal is
distorted. Should distortion occur, reducethe
input level, so that the CLIP LED no longer
lights up.
(6) CHANNEL INPUT 1 (MONO). Connectthe
signal source whose output needs to
beamplified.
(7) CHANNEL INPUT 2. These are the inputs for
channel 2.
(8) The STEREO/BRIDGED MONO switch is used
to toggle between the two operating modes
of your A800.
◊ Please power the A800 down using the
POWER switch each time you change the
operating mode. Similarly,onlyconnect/
disconnect speaker connectors if the
A800 has first been powered off!
(9) BINDING POST outputs accept bare wire
connections from speaker cables.
(10) TWIST- LOCKING SPEAKER OUTPUTS
connect the amplifier to the speakers
using professional speaker cables with
twist-locking plugs.
(11) PIN OUT MATRIX lists the output pin/channel
configurations available in each speaker
output jack.
(12) The mains connection is made via a standard
IEC RECEPTACLE. A matching cable
isenclosed.
