5 SINGLE DIAPHRAGM CONDENSER MICROPHONE B-5 User Manual
7. Level Setting/Adjusting the Basic Sound
Adjust the gain control in the microphone channel of your mixing console so
that the peak LED lights up only occasionally or never at all. The EQ controls
in the microphone channel should be set to mid-travel position to start with;
low-cut lter and level attenuation should be o. Try to achieve the desired sound
by experimenting with the microphone position. Often, it will be useful to set up
acoustic barriers (“baes”) at various angles towards the signal source. Only when
the desired basic sound has been achieved, should you start using equalizers and
signal processors, if any at all. Remember: less is often more!
0 dB
-5 dB
-10 dB
-15 dB
-20 dB
-25 dB
-30 dB
180˚
150˚
120˚
90˚
60˚
30˚
210˚
240˚
270˚
300˚
330˚
250 Hz
500 Hz
1000 Hz
2000 Hz
4000 Hz
8000 Hz
16000 Hz

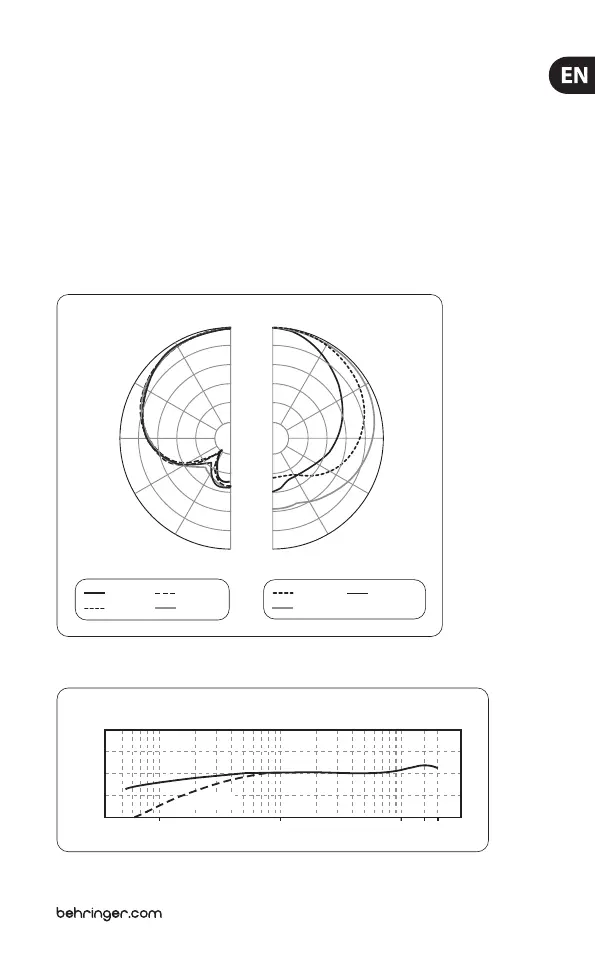

Polar pattern (cardioid)
dB
20.0
10.0
-10.0
-20.0
50.0 100.0
Low cut
1000.0 10k 15k 20k Hz
0.0
Frequency response (cardioid)

Other manuals for Behringer B-5

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Behringer B-5 and is the answer not in the manual?

Behringer B-5 Specifications

Microphone Specifications IconMicrophone Specifications
transducer typetrue condenser
diaphragm size18 mm (0.71") single diaphragm
polar pattern1 x cardioid, 1 x omnidirectional, exchangeable
Sensitivity and Frequency IconSensitivity and Frequency
open circuit sensitivity (cardioid)-38 dBV (0 dBV = 1 V/Pa), 12.6 mV/Pa
open circuit sensitivity (omnidirectional)-40 dBV (0 dBV = 1 V/Pa), 10 mV/Pa
frequency response20 Hz - 20 kHz
Sound Pressure Levels IconSound Pressure Levels
max SPL (1% THD @ 1 kHz)140 dB (0 dB), 150 dB (-10 dB)
equivalent SPL (cardioid)16 dB-A
equivalent SPL (omnidirectional)18 dB-A
Electrical Characteristics IconElectrical Characteristics
nominal impedance70 Ω
load impedance>1 kΩ
supply voltage+48 V
Physical Characteristics IconPhysical Characteristics
dimensionsØ shaft: 20 mm / Length: 120 mm
weightapprox. 0.21 lbs / 0.09 kg
supply current3 mA
