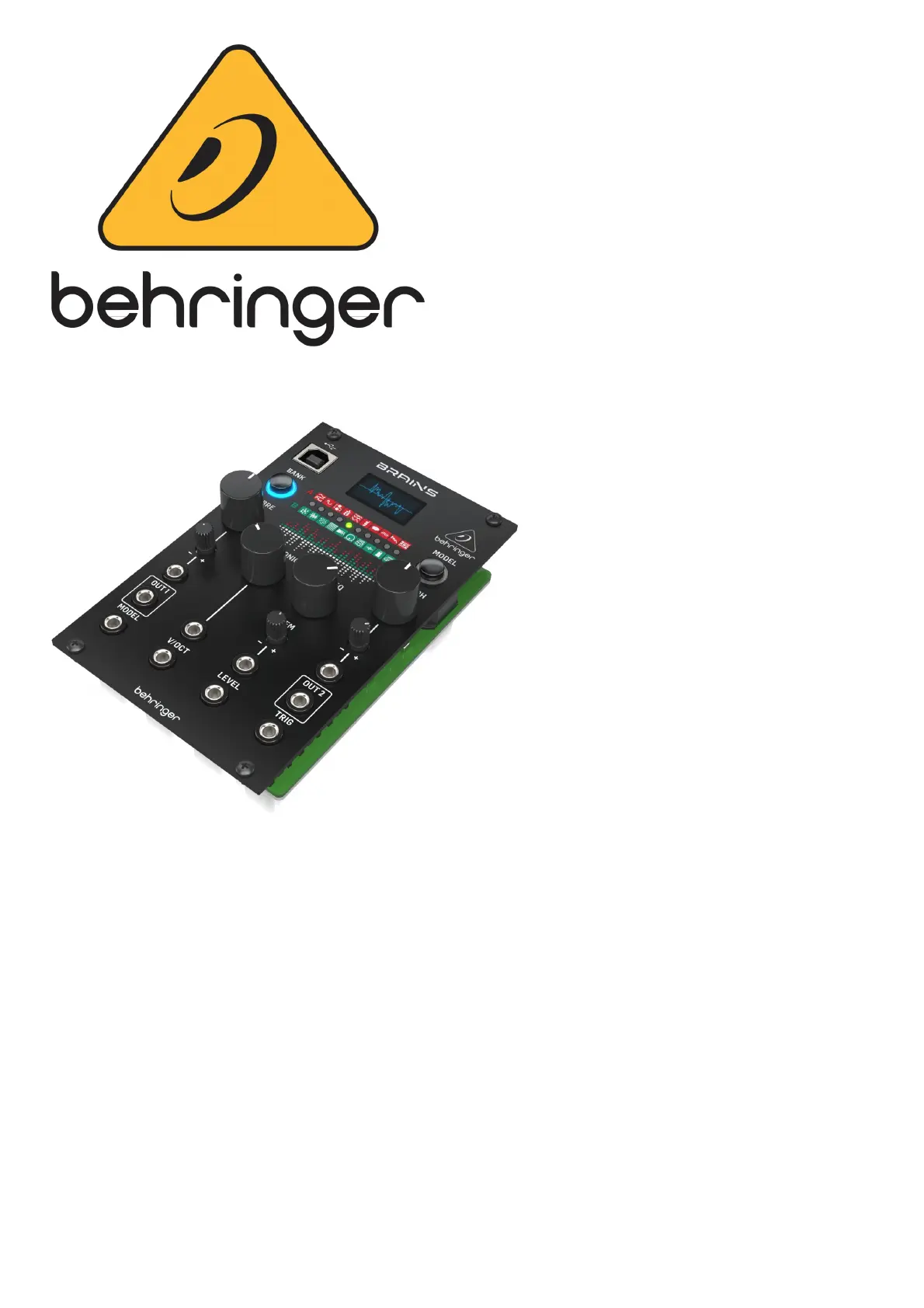

Behringer BRAINS Installation Guide

behringer Multi-Engine Oscillator Module for Eurorack OLED Oscilloscope
Controls
1. DISPLAY – Produces a waveform of the audio content for quick visual feedback.
2. USB – Connect a standard USB cable for firmware updates.
3. BANK button – Toggles between Bank A and Bank B models.
4. TIMBRE knob – Function varies depending on the model selected, but generally sweeps from darker to brighter
content.
5. HARMONICS knob – Function varies depending on the model selected, but generally adjusts frequency spread
or tonal balance.
6. TIMBRE CV LEVEL – Attenuates the voltage received at the Timbre CV input. If the CV input is not patched,
and a signal is received at the Trig input, this knob will instead control the amount of modulation from the
internal envelope generator.
7. TIMBRE CV – Control the Timbre parameter via external control voltage.
8. OUT 1 – Sends the main processed signal via 3.5 mm TS cable.
9. MODEL jack – Allows model selection to be made remotely via external control voltage.
10. MODEL button – Scrolls through the available models in the currently-active bank.
11. MODEL LEDs – Indicate the current model via red LED for bank A or green LED for bank B.
12. MORPH knob – Function varies depending on the model selected, but generally controls the panning or
character.
13. FREQ knob – Covers a range of 8 octaves, but can be narrowed down to 14 semitones.

Behringer BRAINS Specifications

Weight and Dimensions

Package depth	129 mm
Package width	81 mm
Package height	45 mm
Package weight	160 g
