Behringer BRAINS User Manual

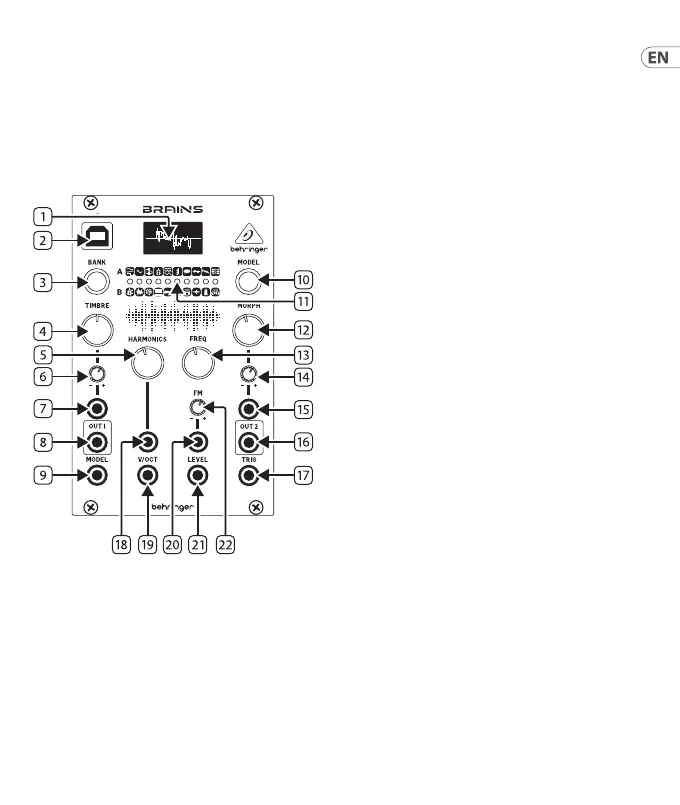

(EN) Controls
BRAINS
1. DISPLAY – Produces a waveform of the audio
content for quick visual feedback.
2. USB – Connect a standard USB cable for
rmware updates.
3. BANK button – Toggles between red,
greenand yellow banks.
4. TIMBRE knob – Function varies depending
on the model selected, but generally sweeps
from darker to brighter content.
5. HARMONICS knob – Function varies
depending on the model selected, but
generally adjusts frequency spread or
tonalbalance.
6. TIMBRE CV LEVEL – Attenuates the voltage
received at the Timbre CV input. If the CV
input is not patched, and a signal is received
at the Trig input, this knob will instead control
the amount of modulation from the internal
envelope generator.
7. TIMBRE CV – Control the Timbre parameter
via external control voltage.
8. OUT 1 – Sends the main processed signal via
3.5 mm TS cable.
9. MODEL jack – Allows model selection to be
made remotely via external control voltage.
10. MODEL button – Scrolls through the
available models in the currently-active bank.
The current model is displayed on the OLED
display (1).
11. MODEL/BANK LEDs – indicate the current
model and bank, in either red, green or yellow.
12. MORPH knob – Function varies depending
on the model selected, but generally controls
the character.
13. FREQ knob – Covers a range of 8 octaves,
butcan be narrowed down to 14 semitones.
13Quick Start Guide12 BRAINS

Behringer BRAINS Specifications

Weight and Dimensions

Package depth	129 mm
Package width	81 mm
Package height	45 mm
Package weight	160 g
