12
EUROPOWER PMX1000/PMX3000/PMX5000
5. WIRING EXAMPLES

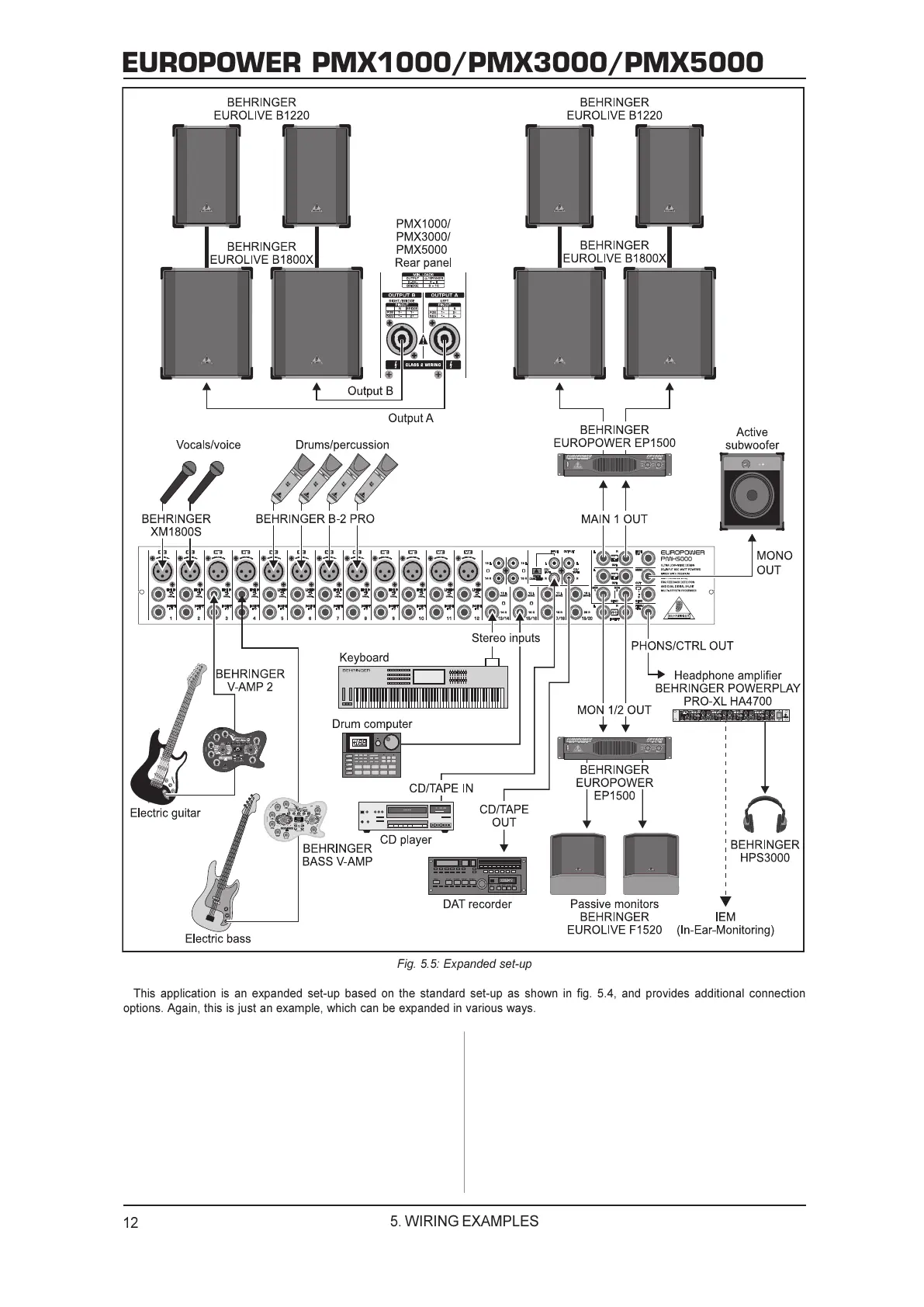

Fig. 5.5: Expanded set-up
This application is an expanded set-up based on the standard set-up as shown in fig. 5.4, and provides additional connection
options. Again, this is just an example, which can be expanded in various ways.
