14
Phantom power (+48 V DC) is provided. This can be switched on or off by the +48 V Phantom switch .
+ Care should be taken NOT to plug mics into the console (or stagebox) while the phantom
power is on. Also, mute the monitor/PA speakers when turning phantom power on or off.
Allow the system to adjust for a couple of seconds after engaging phantom power before
setting input gains.
If possible, connect the unit to other devices in a balanced configuration to allow for maximum interference
immunity.
Unbalanced use of
mono 1/4" jack plugs
Ring
Balanced use of
stereo 1/4" jack plugs
Balanced use with XLR connectors
1 2
3
2 1
3
Input Output
Tip =
Signal
Tip =
hot (+ve)
Sleeve =
Ground / Shield
Sleeve =
Ground / Shield
Tip
Tip
Sleeve
Sleeve
Strain relief clamp
Strain relief clamp
Ring =
cold (-ve)
For connection of balanced and
unbalanced plugs, ring and sleeve have
to be bridged at the stereo plug.
1 = Ground / Shield
2 = hot (+ve)
3 = cold (-ve)
For unbalanced use pin 1 and pin 3 have to be bridged

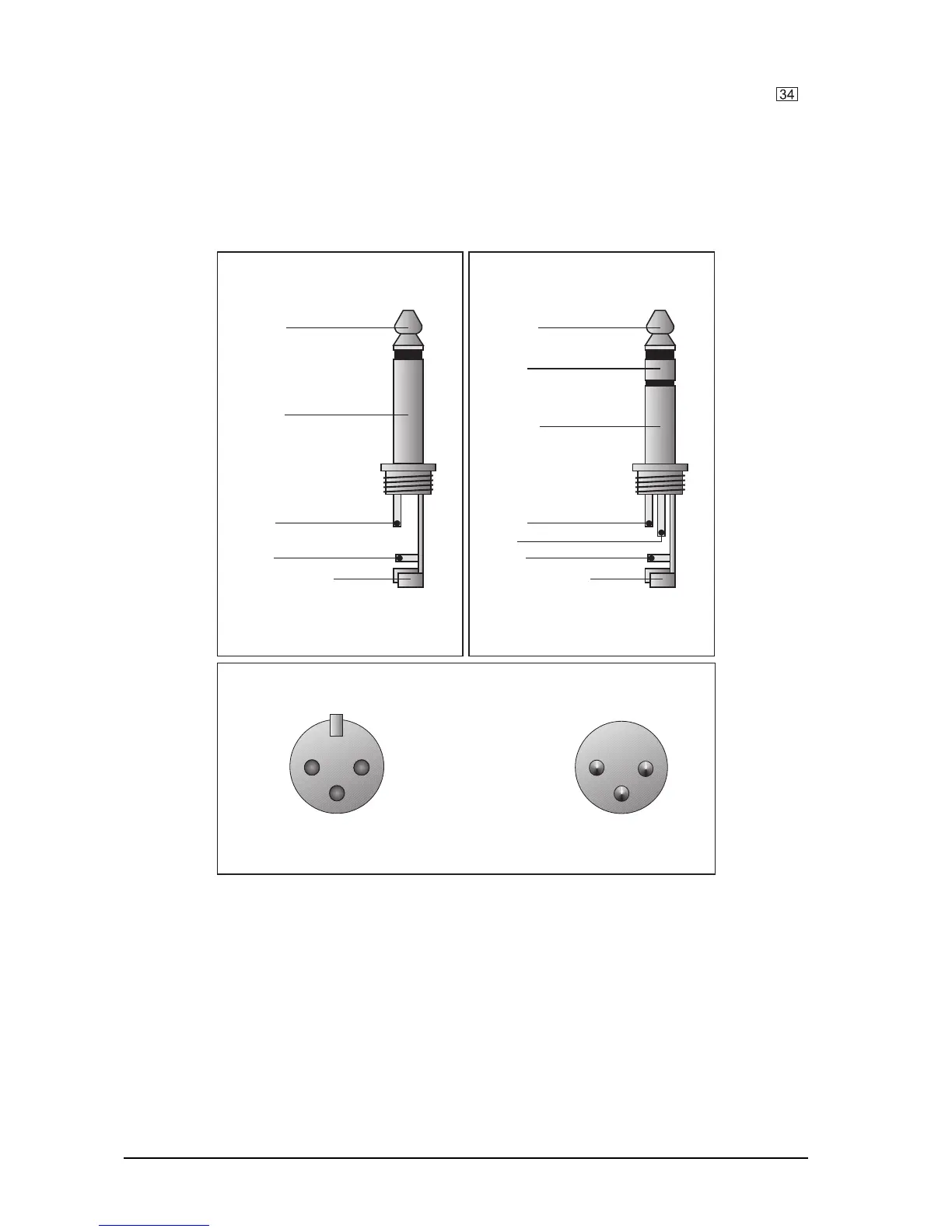

Fig. 6.3: Different plug types
6. CONNECTIONS
