KEYBOARD AMP/PA SYSTEM KX1200

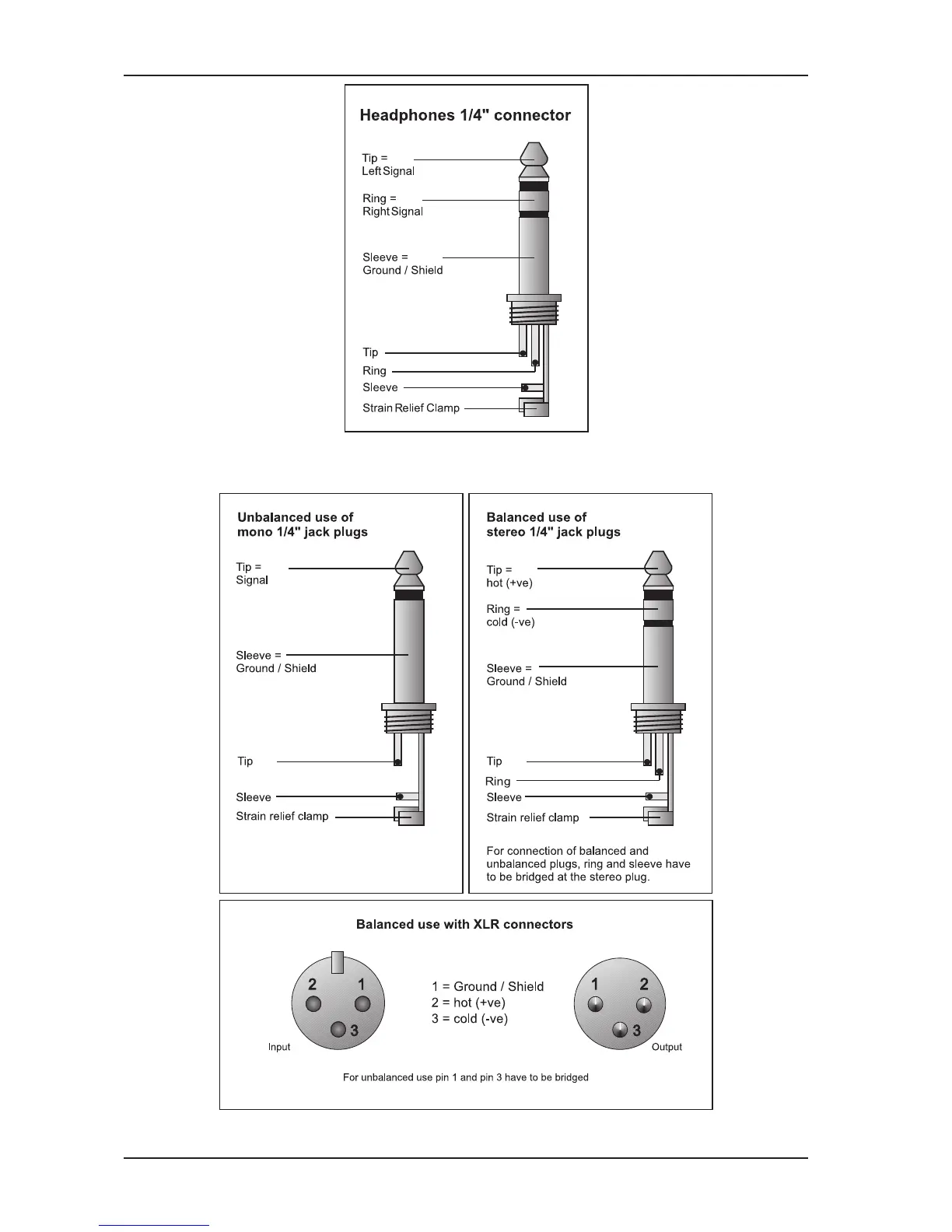

Fig. 3.1: Wiring of a stereo headphones 1/4" plug
Fig. 3.2: Different plug types
3. AUDIO CONNECTIONS
