KEYBOARD AMP/PA SYSTEM KX1200
2. WIRING EXAMPLES
2.1 Standard keyboard set-up with external drum computer and effects device
The standard set-up allows you to connect your entire keyboard equipment. Instead of the drum computer you
could also use some sort of playback provided, for example, by a tape deck or CD player.

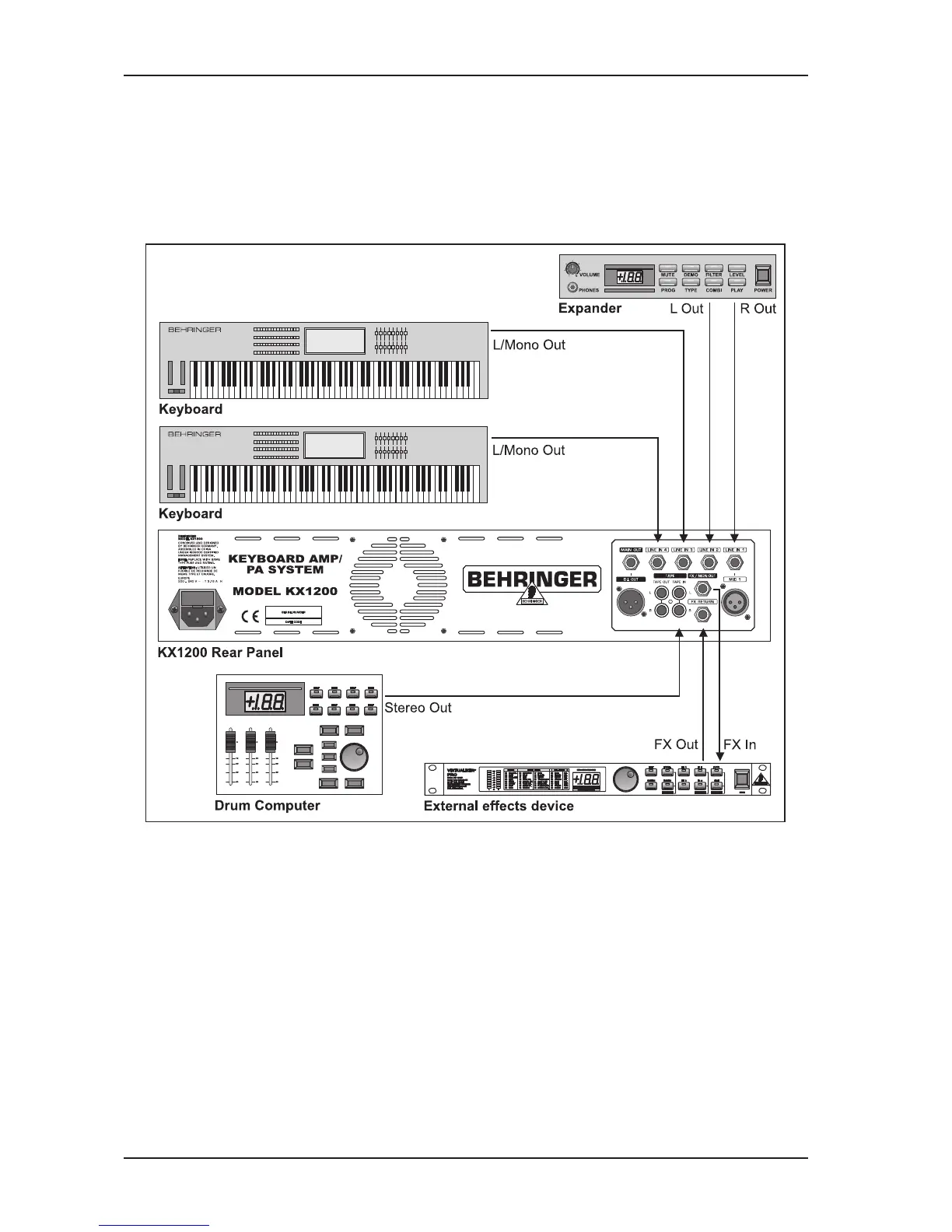

Fig. 2.1: Standard set-up
2.2 Expanded P.A. set-up with four instruments, microphone and connection to a
recording console
For small gigs or rehearsals with a band we recommend using the wiring scheme below, which expands the
standard set-up described above.
+ Please remember to connect either a microphone or a line-level signal to channel 1, but never
both at the same time!
+ When you wish to connect an electric guitar, we recommend that you process the signal
before with a guitar preamp that features a speaker simulation circuit. Otherwise, the guitar
sound will suffer from excess presence in the treble range. The outputs of guitar preamps are
usually equipped with a speaker simulation circuit.
2. WIRING EXAMPLES
