Behringer mic500usb User Manual

42 TUBE ULTRAGAIN MIC500USB 43Quick Start Guide

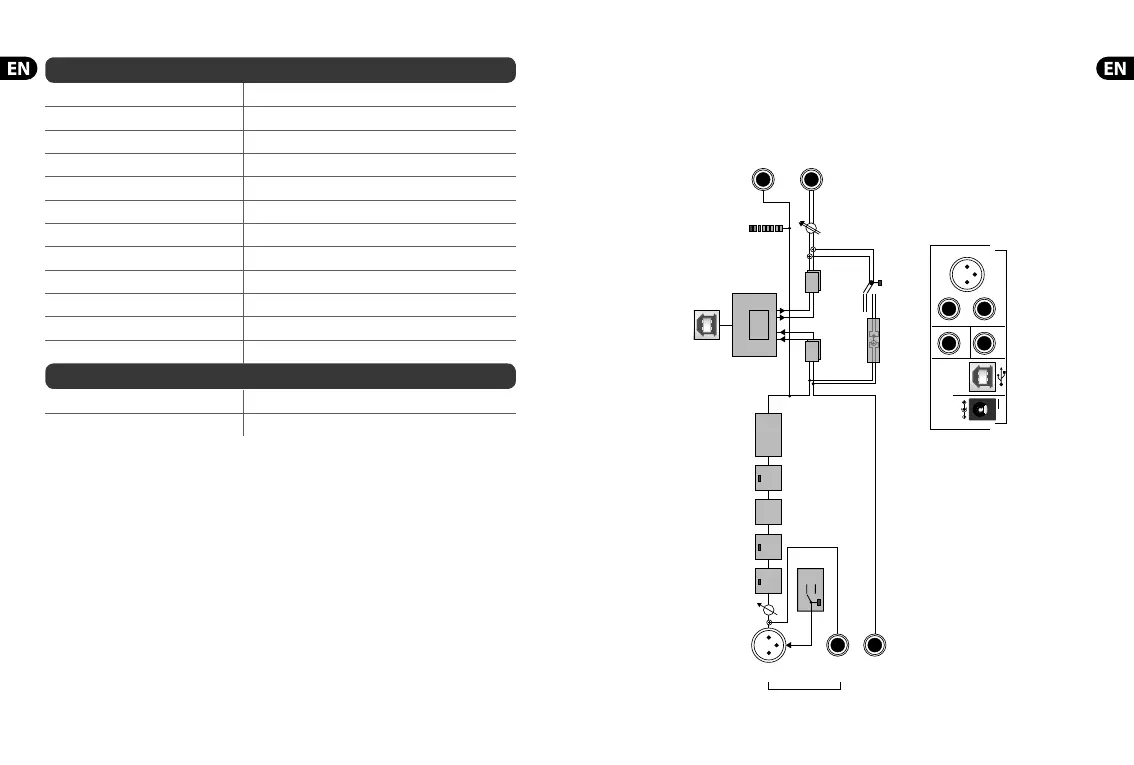

Block Diagram
USB CHIP
USB
AUDIO
A/D D/A
MIC
IN 1/L
IN 2/R
2/R
LINE IN HI-Z IN
MIC IN
PHONES
DIRECT OUT
USBDC IN
1/L
INST
LINE
OFF ON
Low
Cut
Phase
Reverse
Preamp
Mode
Vacuum
Tube
20 dB
Pad
CLIP
-24 -18 -12
-6
+6
+12
0
OFF
ON
+48V
Hi-Z
(Balanced TRS)
GAIN
DIRECT MONITOR
DIRECT OUT PHONES
OUTPUT
MONO MIX
16 Positions 12AX7
Rear View
(Balanced TRS)
12 V 1000 mA
Power Supply / Voltage
Voltage 12V DC, 1000 mA power adapter
Power consumption 7 W
Power adapter model Part number
EU (230 V, 50 Hz) G81-00001-42340 or G81-00001-46363
UL (120 V, 60 Hz) G81-00001-38882 or G81-00001-44352
UK (240 V, 50 Hz) G81-00001-44344 or G81-00001-46368
SAA (240 V, 50 Hz) G81-00000-71382
AR (220 V, 50 Hz) G81-00000-71385
BR (110/220 V, 60 Hz) G81-00000-71384
JP-SH (100 V, 50/60 Hz) G81-00001-46393
JP-HM (100 V, 50/60 Hz) G81-00001-46394
JP-MG (100 V, 50/60 Hz) G81-00001-46337
Dimensions / Weight
Dimensions (H x W x D) 62 x 135 x 132 mm (2.4 x 5.3 x 5.2")
Weight (without power adaptor) 0.7 kg (1.54 lbs)
