10 PRO MIXER DX2000USB User Manual

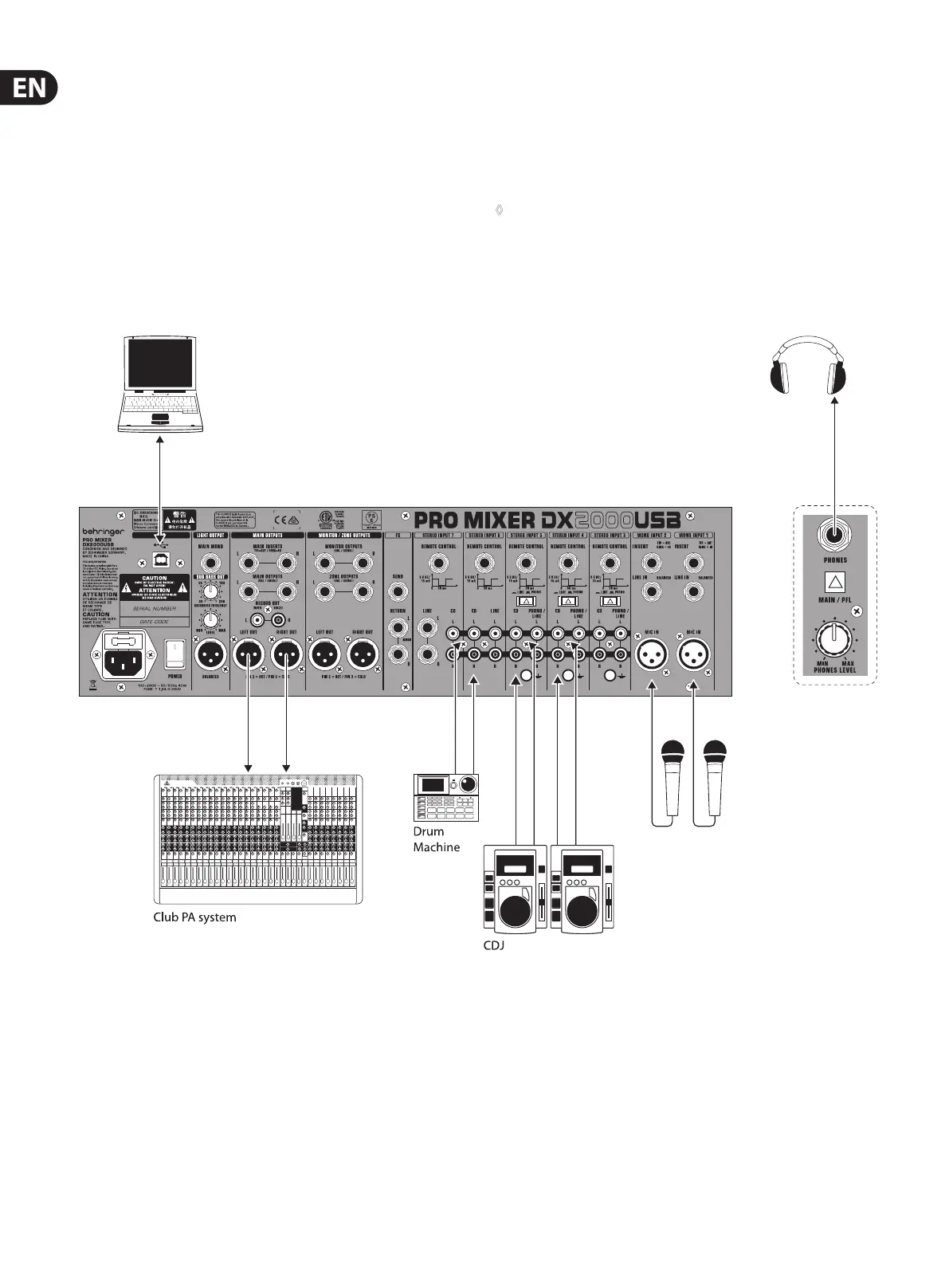

(68) Monitor outputs. Unbalanced ¼" jack, wired tip = signal and
sleeve = ground/screen.
(69) Zone outputs. Unbalanced ¼" jack, wired tip = signal and
sleeve = ground/screen.
(70) Monitor outputs. Balanced XLR, wired pin 1 = ground/screen,
pin 2 = hot(+ve) and pin 3 = cold (-ve).
(72) IEC socket. For connecting the mixer a standard IEC cable. Always connect
the mixer to a wall outlet before engaging the POWER switch.
(74) USB input. Accepts a standard Type B USB cable for stereo input/output
connection with a computer.
And on the front panel:
(21) Line in. RCA sockets.
(23) Line out (without voice). RCA sockets.
(43) Phones. ¼" jack socket, wired tip = left signal, ring = right signal and
sleeve = ground/screen.
◊ Please ensure that only qualified persons install and operate the
PRO MIXER DX2000USB. During installation and operation the user
must have sufficient electrical contact to earth. Electrostatic charges
might affect the operation of the PRO MIXER DX2000USB!
