10. Crossfader Adjustment
On the main motherboard you can nd two potentiometers, which you
can adjust with a little screwdriver. These potentiometers are identied as
OVERLAP and SLOPE. You can unscrew the bottom of your mixer to reach the
mainmotherboard.
◊ Please be aware that the BEHRINGER warranty becomes discretionary
when you start disassembling your DX2000USB! Don’t even think of it,
if you make much of your warranty privileges. Sorry, but we have to
mention this.
10.1 Overlap
With the OVERLAP potentiometer (VR43) you can adjust the increase or
decrease in dB, which is conducted when the crossfader is located in the middle
position. Ex works this value is adjusted at -3 dB and should not be modied.
Thisguarantees a constant volume across the entire fader path.
10.2 Slope
With the SLOPE potentiometer (VR44) you can adjust the fade over process of the
both channels. Dependent on the setting of the SLOPE potentiometer there are
the following volume curves:

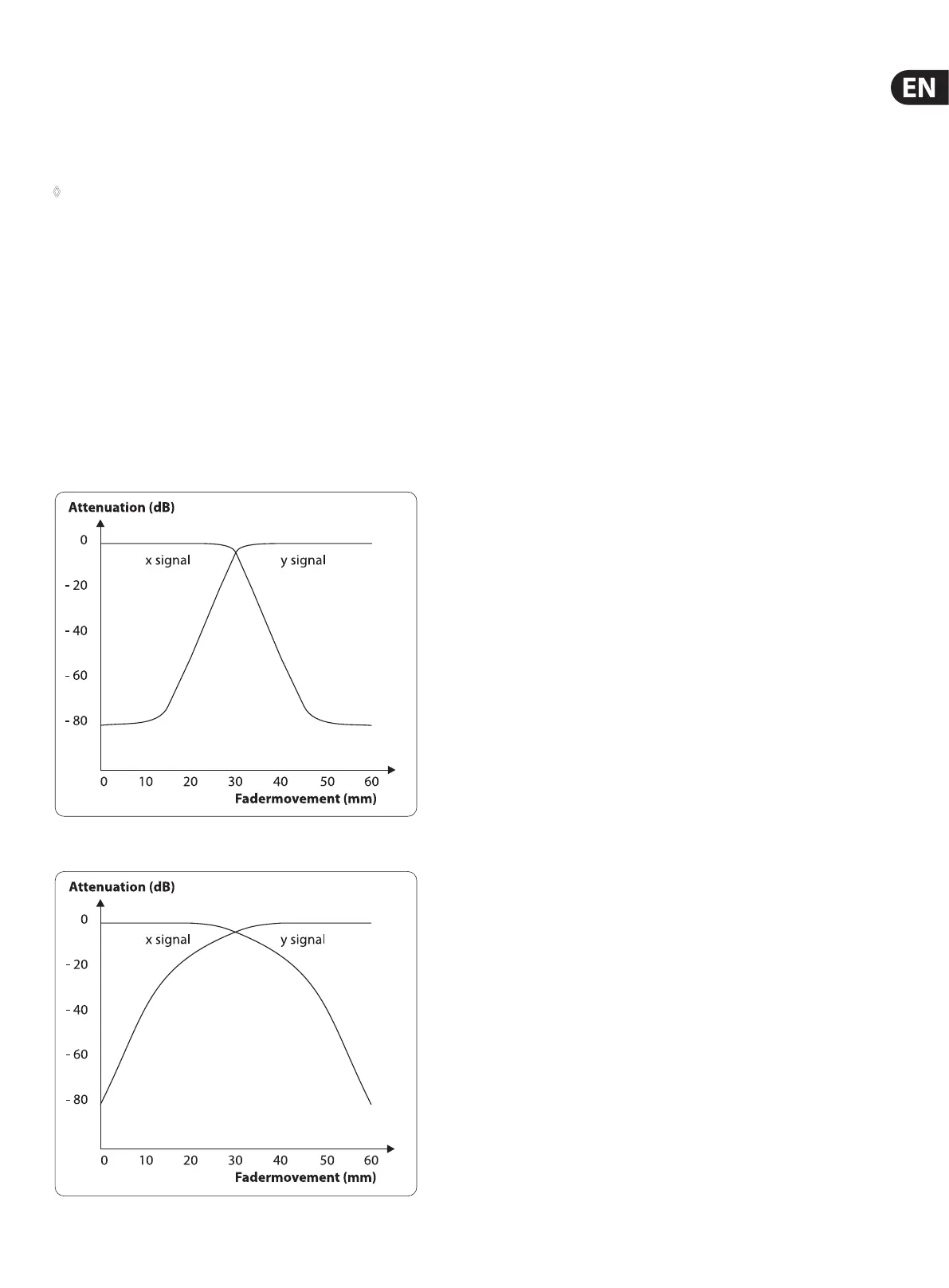

Fig. 11.1: Volume curve I (SLOPE potentiometer completely left)
Fig. 11.2: Volume curve II (SLOPE potentiometer completely right)
