7. APPLICATION EXAMPLES
The following sample configurations should give you an idea how the BTR2000 can be integrated in
a more or less complex environment.

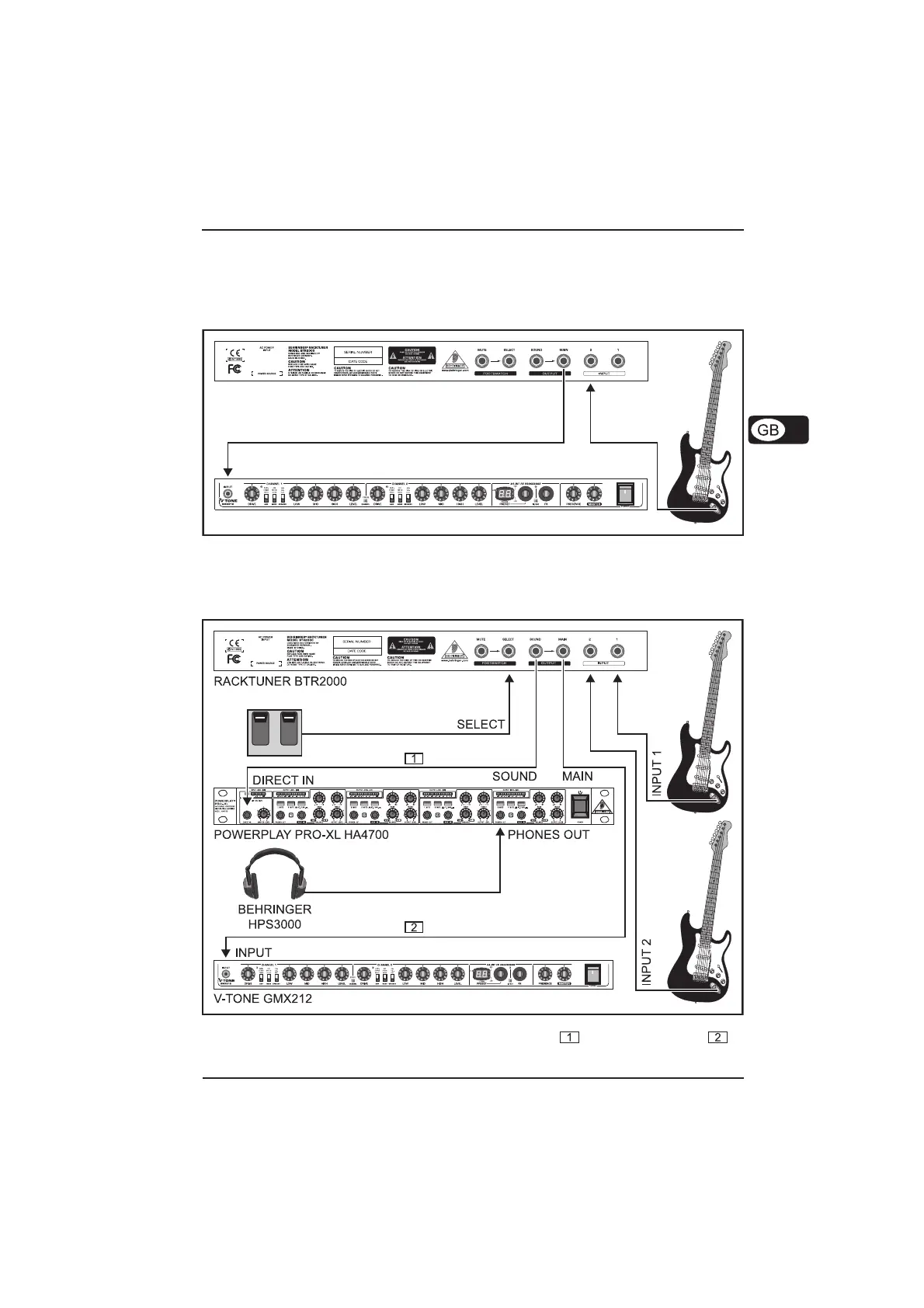

If you have only one amplifier available, the setup shown in figure 7.1 is recommended.
RACKTUNER BTR2000
V-TONE GMX212
INPUT 2
MAIN
INPUT
Fig. 7.1: BTR2000 configuration with only one amp
Figure 7.2 shows an example of a more complex configuration. In this example, the BTR2000 is
connected to 2 instruments and a double footswitch.
Fig. 7.2: Separate playback of metronome click/reference tone and instrument signal
