14
VINTAGER GM110

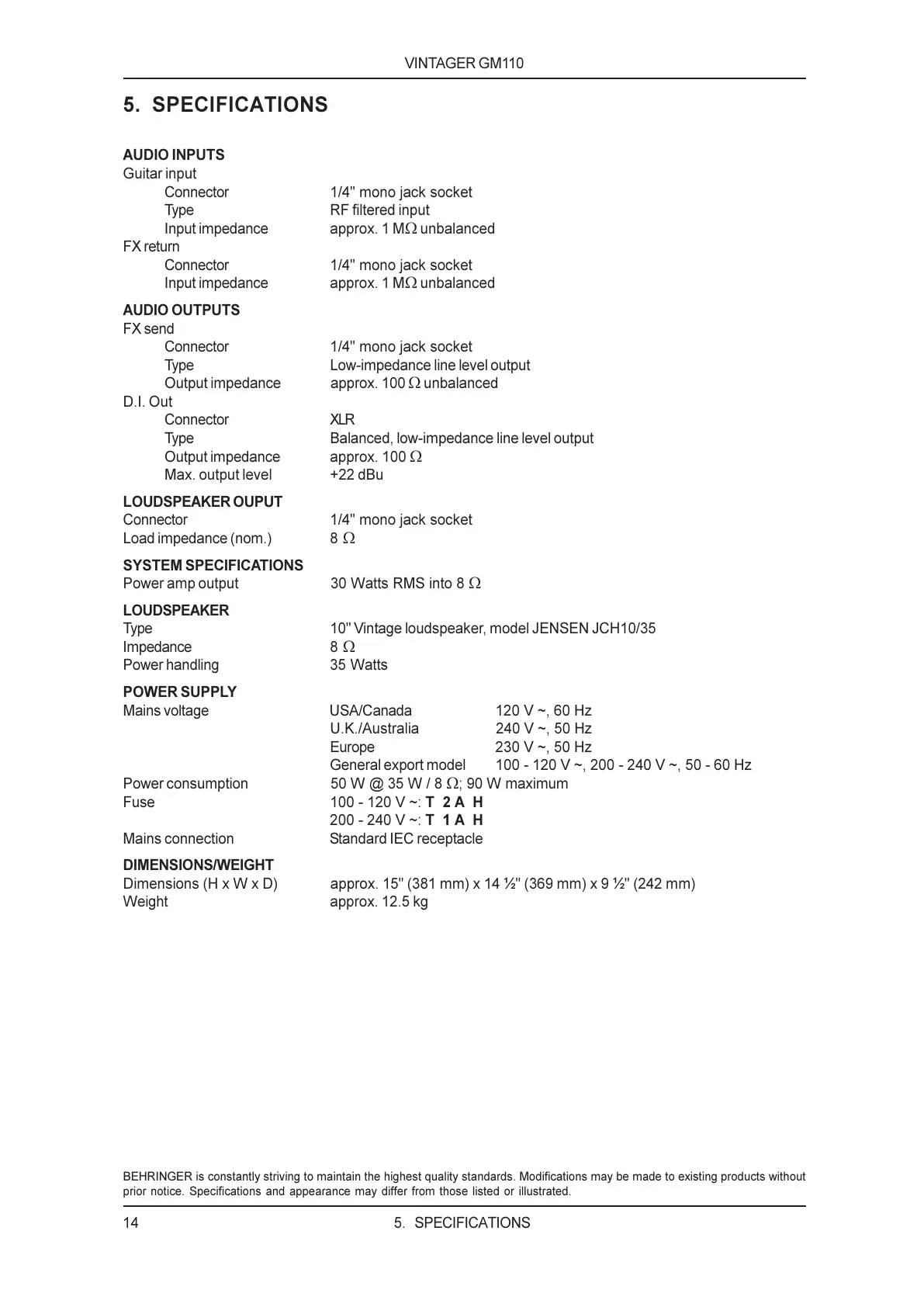

5. SPECIFICATIONS
5. SPECIFICATIONS
AUDIO INPUTS
Guitar input
Connector 1/4" mono jack socket
Type RF filtered input
Input impedance approx. 1 MW unbalanced
FX return
Connector 1/4" mono jack socket
Input impedance approx. 1 MW unbalanced
AUDIO OUTPUTS
FX send
Connector 1/4" mono jack socket
Type Low-impedance line level output
Output impedance approx. 100 W unbalanced
D.I. Out
Connector XLR
Type Balanced, low-impedance line level output
Output impedance approx. 100 W
Max. output level +22 dBu
LOUDSPEAKER OUPUT
Connector 1/4" mono jack socket
Load impedance (nom.) 8 W
SYSTEM SPECIFICATIONS
Power amp output 30 Watts RMS into 8 W
LOUDSPEAKER
Type 10" Vintage loudspeaker, model JENSEN JCH10/35
Impedance 8 W
Power handling 35 Watts
POWER SUPPLY
Mains voltage USA/Canada 120 V ~, 60 Hz
U.K./Australia 240 V ~, 50 Hz
Europe 230 V ~, 50 Hz
General export model 100 - 120 V ~, 200 - 240 V ~, 50 - 60 Hz
Power consumption 50 W @ 35 W / 8 W; 90 W maximum
Fuse 100 - 120 V ~: T 2 A H
200 - 240 V ~: T 1 A H
Mains connection Standard IEC receptacle
DIMENSIONS/WEIGHT
Dimensions (H x W x D) approx. 15" (381 mm) x 14 ½" (369 mm) x 9 ½" (242 mm)
Weight approx. 12.5 kg
BEHRINGER is constantly striving to maintain the highest quality standards. Modifications may be made to existing products without
prior notice. Specifications and appearance may differ from those listed or illustrated.
