2.1 SpaceRequirements
• Maximum installation plate thickness: 11 mm

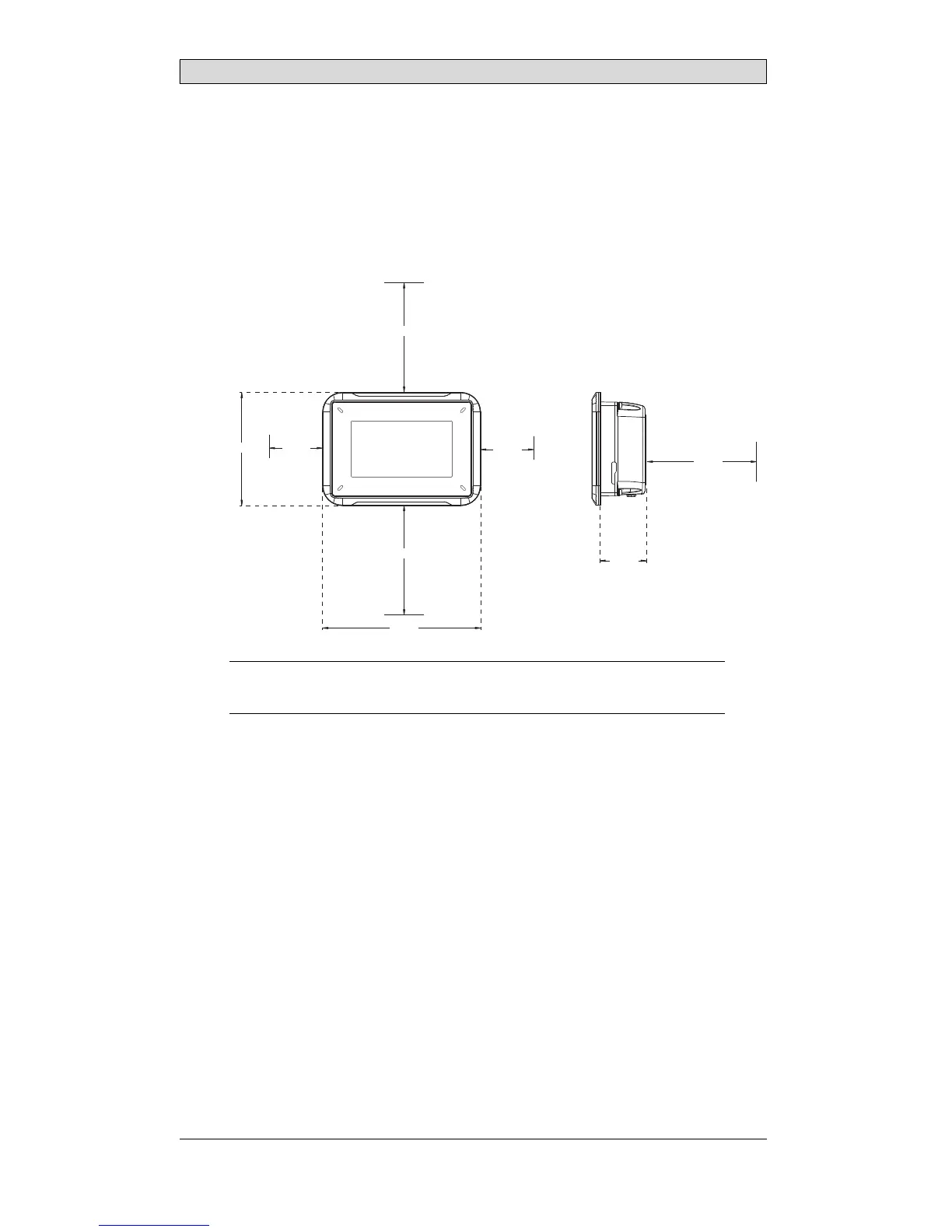

• Space requirements when installing the operator panel:
100 mm
100 mm
145 mm
104 mm
50 mm
50 mm
43 mm
100 mm
Caution:
Theopeningsontheenclosureareforairconvection. Donotcovertheseopenings.
