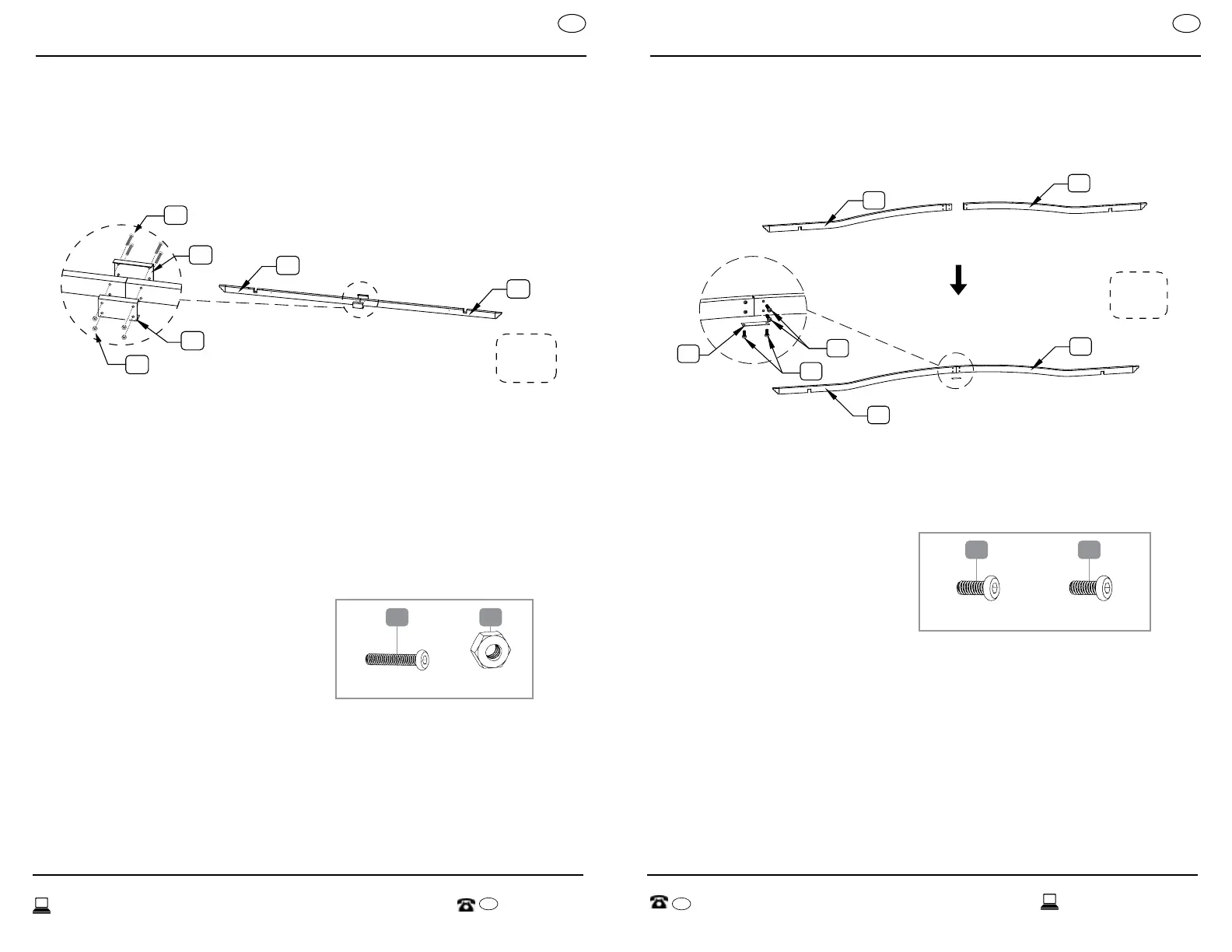

STEP 1:
Bring two Crossbeams (B) together so their open ends meet. Insert
four Bolts M6x35mm (CC) through Connector (H), through Crossbeams
(B), and through a second Connector (H), tighten down using M6 Nut
(FF); see Figure 1.
Repeat these steps for the second set of Crossbeams (B).
Assembly Instructions
B
B
H
H
FF
CC
2X
Fig. 1
CC FF
(8) M6X35 mm Screw (8) M6 Nut
STEP 2:
Insert Crossbeam (C) into Crossbeam (D). Insert two Bolts M6x10mm
(AA) through Crossbeam (D) and into Crossbeam (C), tightened down
to hold parts together; see Figure 2.
Insert two Bolts M6x15mm (BB) through Plate (L) and into bottoms
of Crossbeam (C) and Crossbeam (D), tightened down to hold parts
together; see Figure 2.
Repeat these steps for the second set of Crossbeams (C & D).
Assembly Instructions
AA
2X
C
D
D
C
L
BB
Fig. 2
AA
(4) M6X10 mm Screw
BB
(4) M6X15 mm Screw
