Assembly Instructions

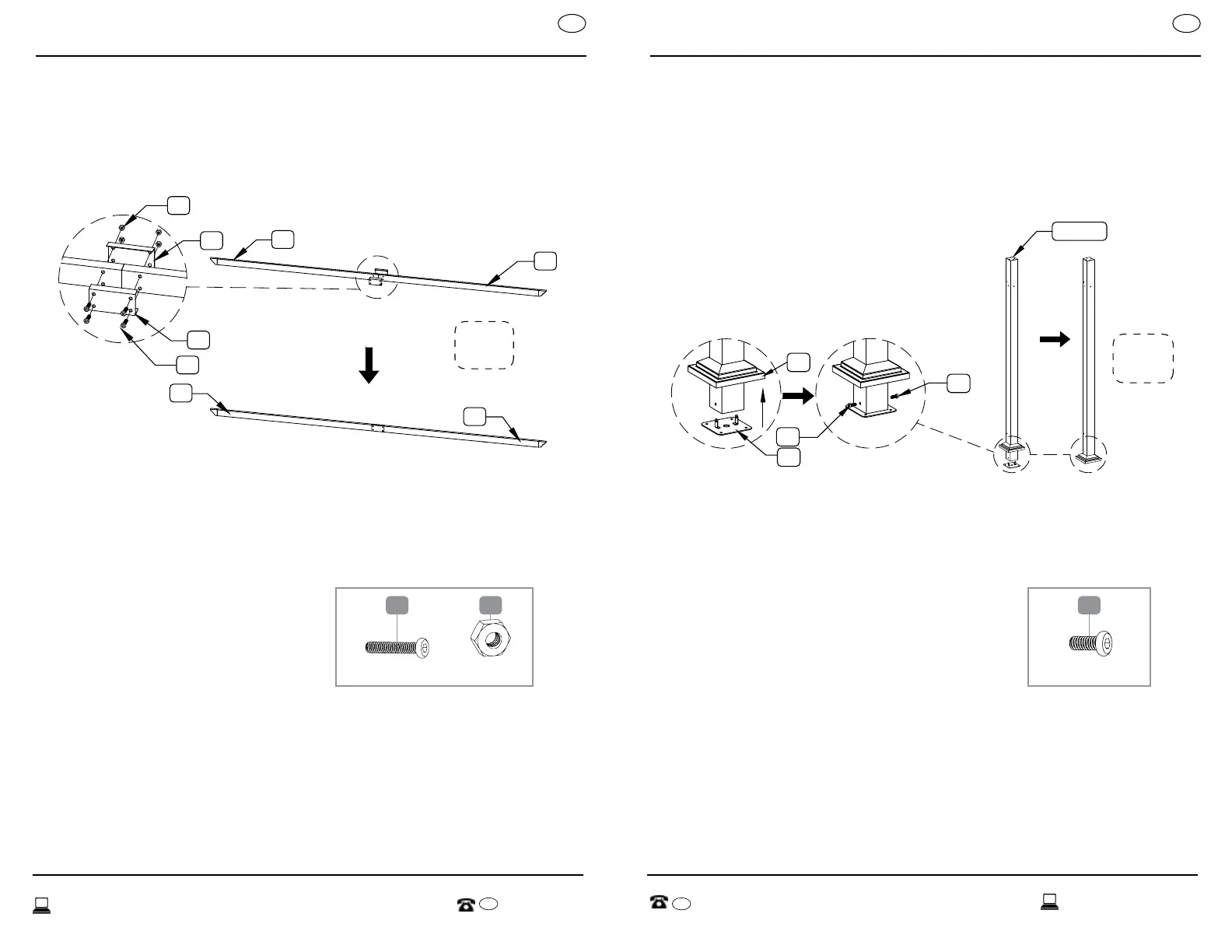

STEP 3:
Bring two Canopy Supports (E) together so their open ends meet. Insert
four Bolts M6x35mm (CC) through Connector (H), through Canopy
Supports (E), and through a second Connector (H), tighten down using
M6 Nut (FF); see Figure 3.
Repeat these steps to assemble the remaining Canopy Supports (E).
E
FF
5X
H
E
H
CC
E
E
Fig. 3
CC FF
(20) M6X35 mm Screw (20) M6 Nut
Assembly Instructions
STEP 4:
Slide Cover (K) onto Poles (A
1
& A
2
) from the bottom of these parts; see
Figure 4. Insert Foot (J) into the bottom of Poles (A
1
& A
2
) and screw
together with two Bolts M6x15mm (BB); see Figure 5. Slide Cover (K)
down over Foot (J).
Repeat these steps for the remaining Poles (A
1
& A
2
).
BB
A
1
& A
2
BB
J
K
4X
Fig. 4 Fig. 5
BB
(8) M6X15 mm Screw
