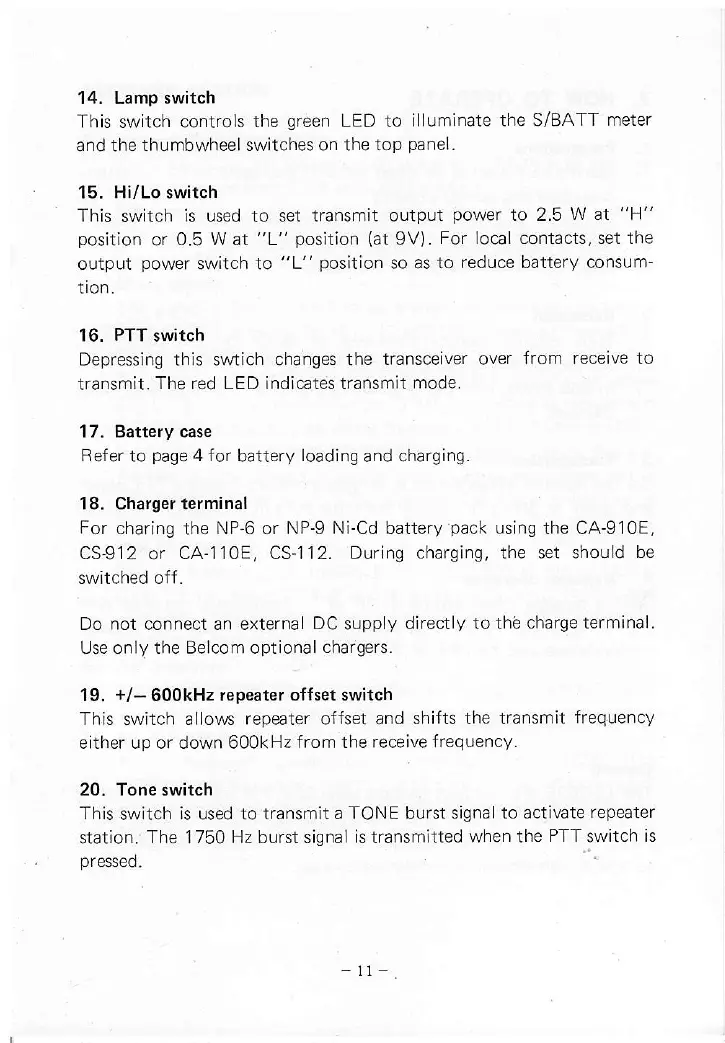

14. Lamp switch
This switch controls the
green
LED to
illuminate the S/BATT
meter
and the thumbwheel
switches on the top
panel.
15. Hi/Lo switch
This
switch is used to set
transmit output
power
to 2.5
W at "H"
position
or
0.5 W at
"L"
position
(at
9V).
For
local
contacts,
set
the
output
power
switch to
"L"
position
so as
to reduce battery consum-
tion.
16.
PTT
switch
Depressing this sMich changes the
transceiver over
from receive to
transmit.
The red LED indicates transmit
mode.
17. Battery case
Refer to
page
4 for
battery
loading
and charging.
18, Charger terminal
For
charing
the
NP 6
or
NP-9 Ni-Cd battery
pack
using the CA-g10E,
CS912
or
CA-ii0E, CS-112. During
charging, the set should
be
switched off.
Do not connect an external
DC
supply
directly to thi)
charge terminal.
Use
only
the Belcom optional
chargers.
19.
+/-
600kHz repeater
offset switch
This switch allows repeater offset and
shifts the transmit
frequency
either up or down 600kHz
from the receive
frequency.
20. Tone
switch
This
switch
is
used to
transmit a TONE burst signal
to acti!"te repeater
station.
The 1750 Hz burst signal is transmilted
when the
PTT
swilch
is
.
pressed.
