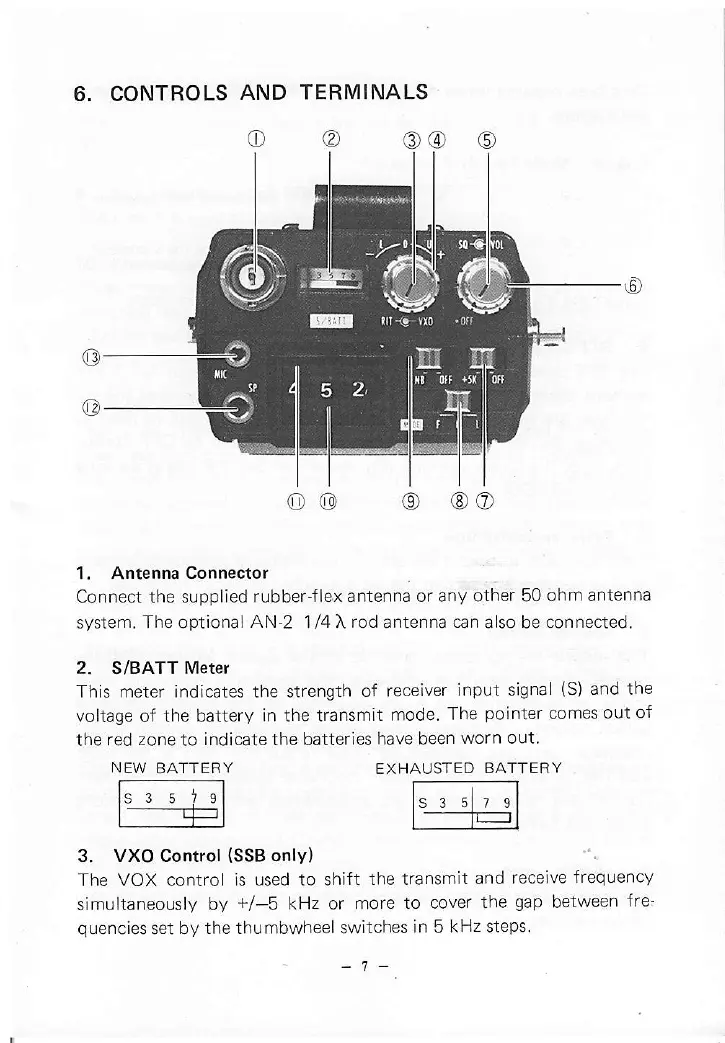

6. CONTROLS
AND TERMINALS
@
o@
6l
@o
1. Antenna
Connector
Connect the
supplied rubber-flex antenna
or any other 50
ohrn antenna
system. The optional
AN-2
1/4 ).
rod
antenna
can
also be connected.
2.
S/BATT
Meter
This meter indicates the strength
of receiver
input signal
(S)
and the
voltage
of the battery
in the transmit
mode.
The
pointer
comes
out oi
the red
zone
to
indicate the batteries
have been
worn out.
EXHAUSTED
BATTERY
3. VXO Control
(SSB
only)
The VOX control
is used to shift
the transmit
and
receive frequency
simultaneouslv bv
+/-5
kHz or more
to cover
the
gap
between
fre.
ouencies set bv
the thumbwheel swltches
in
5
kHz steps.
O
@
@
@o
NEW
BATTERY
