Belden Hirschmann MICE MS20 - Page 9

Installation MS20/MS30
Release 14 03/2023
9

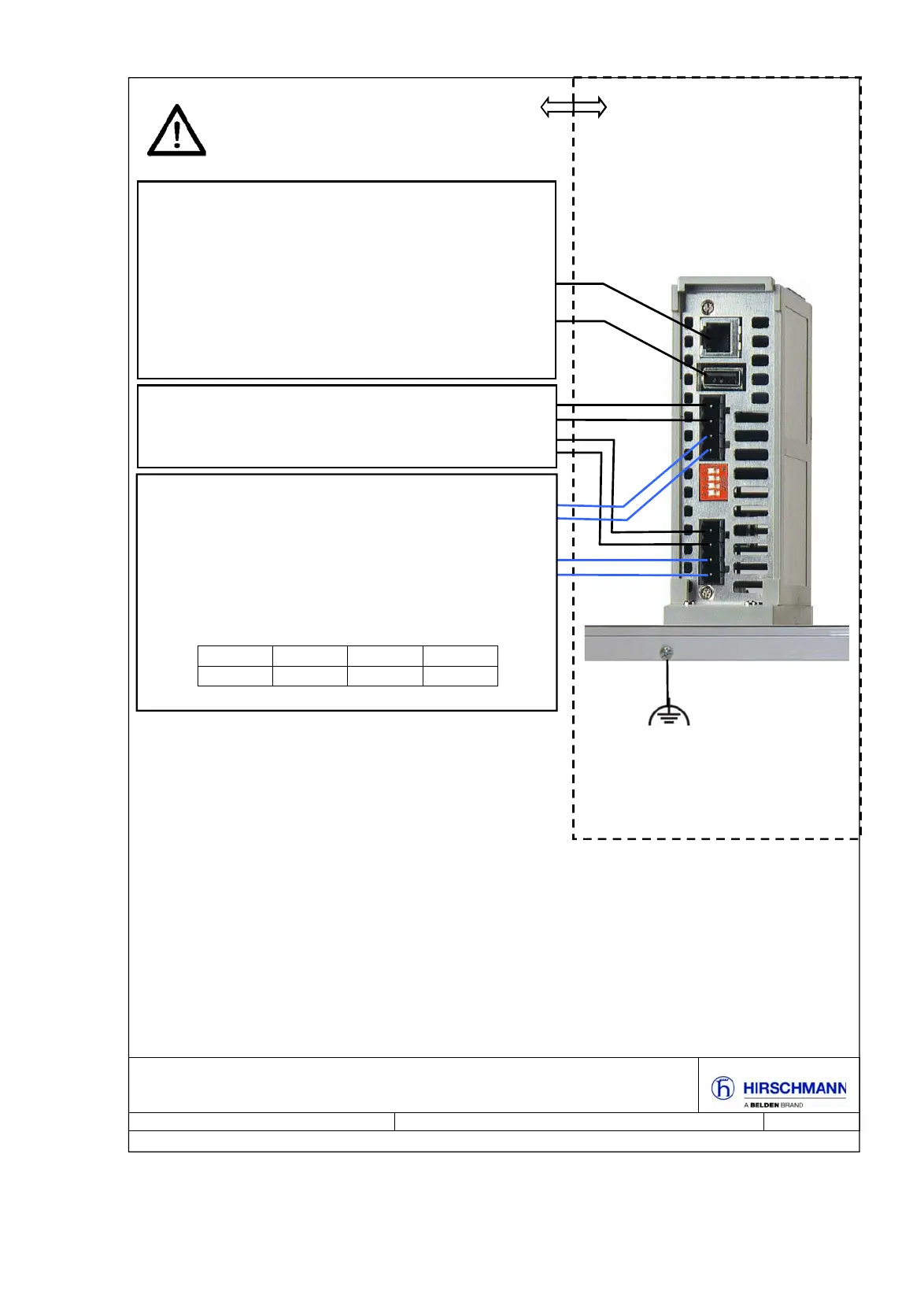

CONTROL DRAWING
for Industrial ETHERNET Rail Switch MS20 and MS30 devices 943-435-999
according to Class I Division 2 Hazardous Locations
Version: 4 Document No.: 000160011DNR Pa
g
e 1/3
P1
P2
Ordinary Location,
Non-Hazardous Area,
non-explosive atmosphere
WARNING! The USB connection and the V.24
Interface connection are for temporary
connection only, for maintenance use. Do not
use, connect or disconnect unless the area is
known to be non-hazardous. Connection or
disconnection in an explosive atmosphere could
result in an explosion!
Relay
Rela
y
The ground connector must be
at least the same wire size
(mm² or AWG) as the supply
conductors.
Power Supply range “C” (P1, P2 Redundant)
18 – 60 V DC;
4.0 – 1.2 A; max. 72 W
Relay contacts:
Equipment with non-incendive field wiring
parameters.
Polarity is not relevant.
THE RELAY TERMINALS ARE DEPENDENT
UPON THE FOLLOWING ENTITY
PARAMETERS:
1
)
2
)
Temperature Code: T4
Ambient Temperature rating:
Ta: 0 °C to +60 °C for “S” types
Ta: -40 °C to +70 °C for “T” or “E” types
– refer to the type designation on the device
(Position 10 of nomenclature: “Temperature range”).
MS20/30 switch basic module
with voltage range type “C”
Class I, Division 2,
Groups A, B, C, D
Hazardous Location
U
i
I
i
C
i
L
i
30 V 90 mA 2 nF 1 µH
