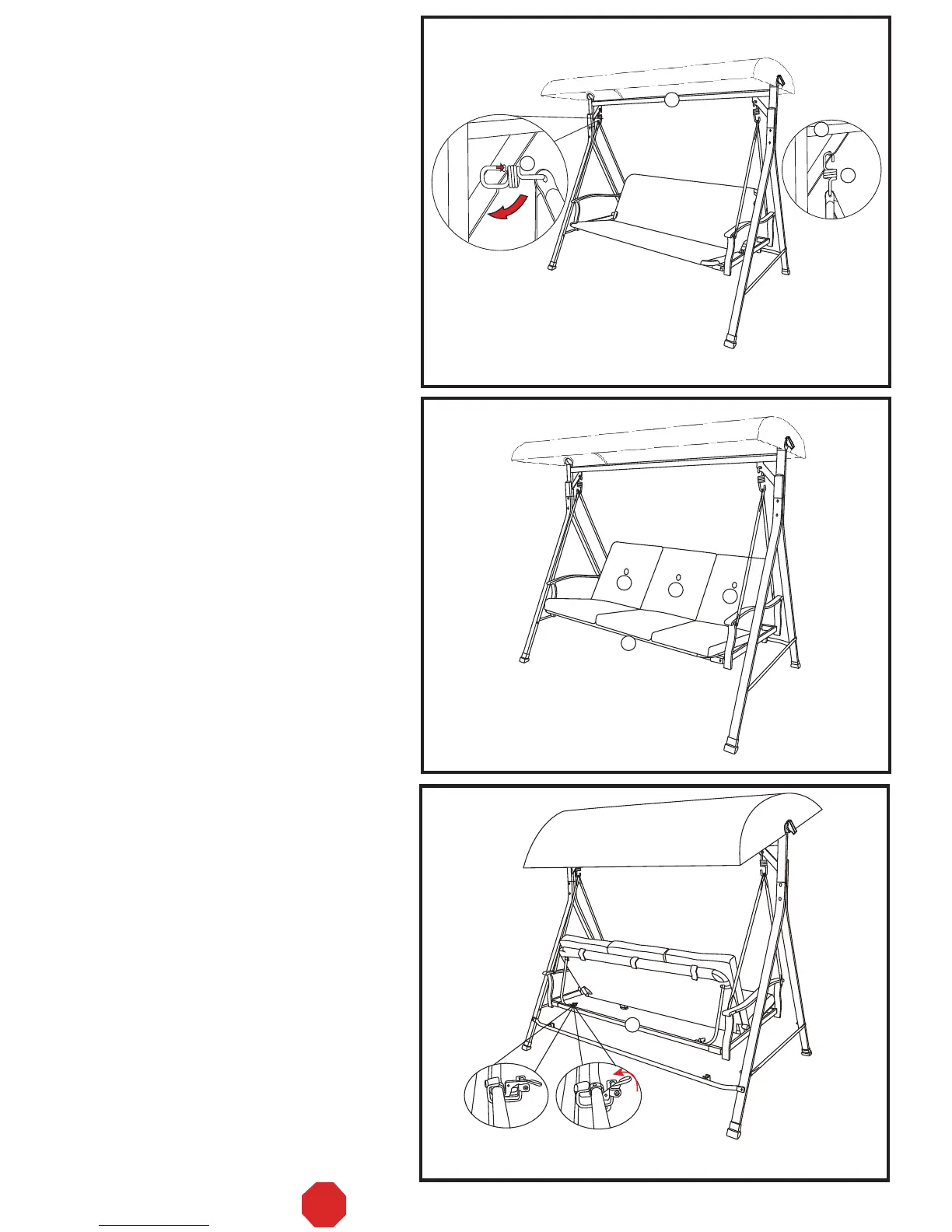

Fig. E
Step 16:
Hang the opposite ends of the suspension
springs (#23) into the holes located in the
angled braces on the top cross beam w/adjustable
teeth (#1). See Fig. E.
Warning:
Make sure that both ends of the suspension
springs (#23) go completely through the holes
in the angled braces on the top cross beam
w/adjustable teeth (#1) and the swing arm
tubes (#13).
23
23
1
1
Step 17:
To assure stability, double check that all of the
bolts have been completely tightened.
Step 19:
Make sure that the safety locks on the seat
rear support (#11) are fully locked whenever
the seat assembly is in a swinging position.
See Fig. G – 1 (SEAT). To have the swing in
a bed position, open both of the safety locks.
See Fig. G – 2 (BED).
Step 18:
Place the cushions (#35) onto the seat
assembly (#12). See Fig. F.
Fig. F
Fig. G
G–1(SEAT) G–2(BED)
PAGE 6 OF 7
35
35
12
35
11
V-3
STOP DO NOT RETURN TO THE STORE!
